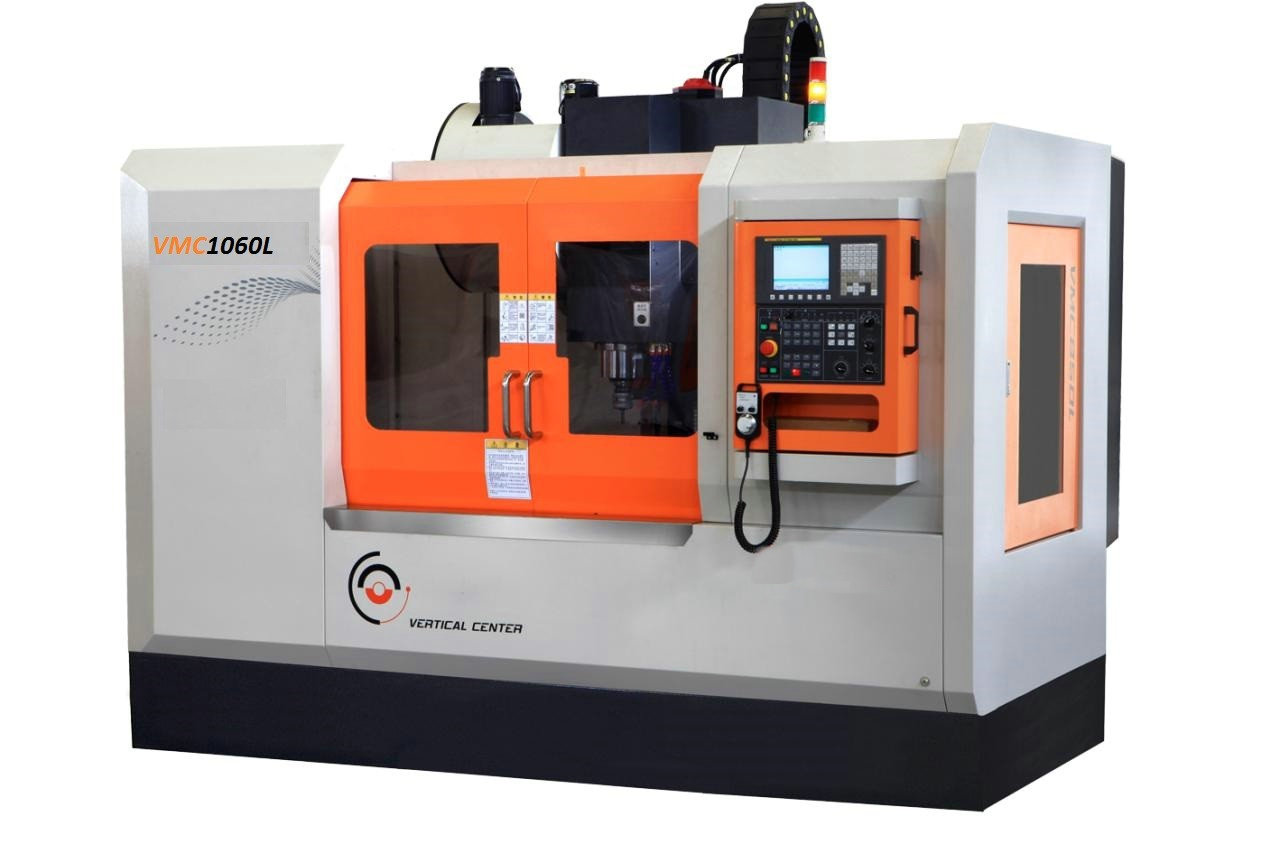

VMC1060L VERTICAL MACHINING CENTER

1

WORKTABLE（WIDTH×LENGTH）

mm

600×1200

2

T SLOTS

mm

5-18

3

DISTANCE BETWEEN T SLOTS

mm

100

4

MAX.LOAD BEARING OF WORKTABLE

kg

800

TRAVEL

5

X AXIS

mm

1000

6

Y AXIS

mm

600

7

Z AXIS

mm

600

8

DISTANCE FROM COLUM TO SPINDLE CENTER

mm

650

9

DISTANCE FROM TABLE TOP SURFACE TO SPINDLE NOSE

mm

120-720

SPINDLE

10

SPINDLE HOLE TAPER

BT40

11

SPINDLE SPEED

rpm

8000

12

MAIN MOTOR MODEL

βiI8/ 12000

13

SERVO MAIN MOTOR RATED POWER

kw

7.5

14

SERVO MAIN MOTOR 30MINS POWER

kw

11

15

SERVO MAIN MOTOR RATED OUTPUT TORQUE

Nm

35.8

16

SPINDLE PART DYNAMIC BALANCE TYPE

G1

17

SPINDLE ACCURACY

SPINDLE FACE RUNOUT::0.005mm

SPINDLE RADIAL RUNOUT :NEAR-END 0.007mm

TOOLS HOLDER SIZE

18

TOOLS HOLDER STANDARD

MSA403  BT40

19

RIVET STANDARD

MSA403  P40T-1

FEED

20

X/Y FEED MOTOR MODEL

βiSC 22/2000

21

X/Y FEED MOTOR MAX.SPEED

r/min

2000

22

X/Y FEED MOTOR RATED POWER

kw

2.5

23

X/Y FEED MOTOR RATED OUTPUT TORQUE

Nm

20

24

Z AXIS FEED MOTOR MODEL

βiSC 22B/2000

25

Z AXIS FEED MOTOR MAX SPEED

r/min

2000

26

Z FEED MOTOR RATED POWER

kw

2.5

27

Z FEED MOTOR RATED OUTPUT TORQUE

Nm

20

28

X/Y FEED RATE

m/min

36/36

29

Z FEED RATE

m/min

36

30

CUTTING FEED SPEED

mm/min

10000

TOOLS MAGAZINE

31

TOOLS MAGAZINE MODEL

MANIPULATOR

32

CAPACITY

pcs

24

33

FULL TOOLS MAX TOOL DIAMETER

mm

Ф78

34

NEIGHBOR EMPTY TOOL DIAMETER

mm

Ф120

35

MAX.TOOLS ALLOWABLE WEIGHT

kg

8

36

MAX.TOOLS ALLOWABLE LENGTH

mm

300

37

TOOL CHANGE TIME

s

3.5

38

TOOL CHANGE WAY

FORWARD/REVERSAL

POWER SOURCE

39

MACHINE ELECTRIC CAPACITY

KVA

20

40

COOLING PUMP FLOW RATE

L/min

40

41

MACHINE COMPRESSED AIR

kg

6～8

42

POWER REQUIREMENT

380V±10% 50Hz

ENVIRONMENTAL REQUIREMENT

43

ENVIRONMENTAL TEMPERATURE REQUIREMENT

0℃～40℃

44

RELATIVE HUMIDITY

20%～80%

MACHINE SIZE

45

MACHINE DIMENSION

mm

2855×2150×2350

46

MACHINE WEIGHT

kg

6000

47

MACHINE SHIELD

FULL PROTECT

ACCURACY

48

X/Y/Z POSITION ACCURACY

mm

±0.010

49

X/Y/Z RE-POSITION ACCURACY

mm

±0.005

1

CONTROL SYSTEM

FANUC

FANUC 0I MF

2

SERVO FEED MOTOR

FANUC

3

SPINDLE SERVO MOTOR

FANUC

4

DRIVE

FANUC

5

SPINDLE UNIT

KENTURN/CELLS

BT40-φ150

6

BALL SCREW

PMI

4012/4012/4012（C3）

7

LINEAR SLIDE WAY

REXOTH/HIWIN/PMI

45MM/45MM/45MM

8

TOOL CYLINDER

HAOCHENG/CHENSOUND

4.5t

9

TOOL MAGAZINE

CHENSOUND

24T

10

COUPLING

REACH

28GS

11

HEAT EXCHANGER

KAUKAN

C&H-5AF/220V

12

BALL SCREW BEARING

NTN/FAG

30X62

13

LUBRICATION SYSTEM

BAOTN

14

PROTECTIVE COVER(3 AXES)

HW

15

BELT

UNITTA

8YU-944

16

PULLEY

MHN

8YU-48T

X/Y/Z LINEAR MOTION SLIDE WAY

OIL-WATER SEPARATION

PRE-TENSION FOR BALL SCREW

SPINDLE ANTI-DUST DEVICE

RIGID TAPPING

AUTO LUBRICATION SYSTEM

WORKPIECE COOLING SYSTEM

RS232 INTERFACE

M30 AUTOMATIC POWER-OFF SYSTEM

PORTABLE BLOWING DUST AIR GUN

ELECTRICAL CABINET HEAT EXCHANGER

MANUAL PULSE

ALL OVER PROTECTION SHIELD

ANCHOR BOLTS AND PADS
