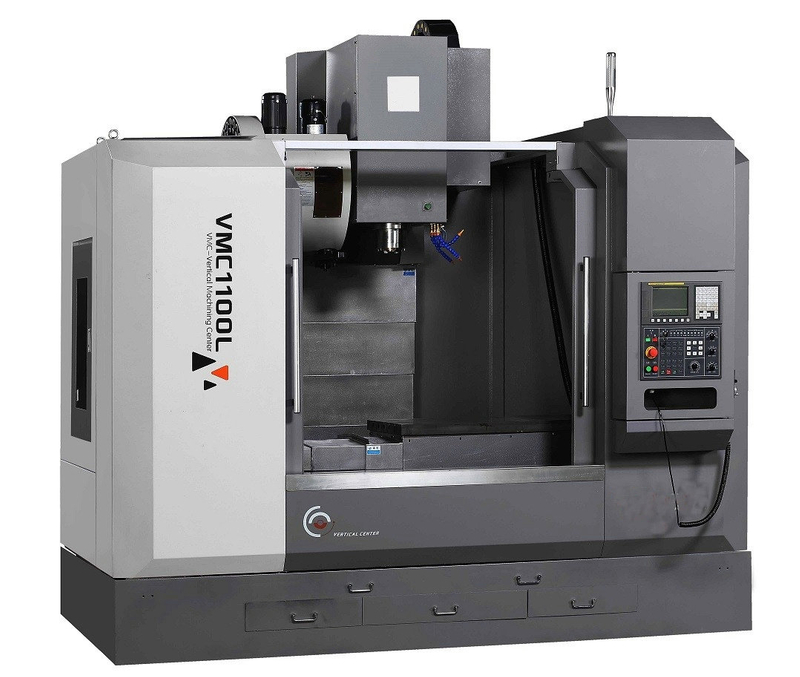

VMC1100L VERTICAL MACHINING CENTER

You are here: Home » Products » CNC MACHINE » VERTICAL MACHINING CENTER( LINEAR GUIDE WAYS) » VMC1100L VERTICAL MACHINING CENTER

Model: VMC1100L

Product Description

Product Overview

This series vertical machining center adopts the moving structure of cross sliding table and sliding guide,which is mainly applied in processing of middle and smallscale complicated parts.Apply the computeraided engineering(CAE)system to finish the optimized structure design and enhance the reliability of machine tool,and the finite element method(FEM)to take the scientific analysis and optimization of design structure,which can guarantee the rigidity and stability of the whole machine structure.It can finish all kinds of processing,such as milling,drilling,expanding,boring,tapping and profile milling at one time of clamping.It is suitable for the parts processing with high precision,multipe procedure and complicated shape.It is the key facility in industries of general machinery, mold,aviation,energy and traffic.

Machine Characteristics

1.The major machine components apply finest gray cast iron which are of good shock resistance.
All the casts have been done with aging treatment twice, in order to eliminate the internal residual
stresses. So that, our machine can work with high rigidity and good shock resistance for heavy
cutting and intermittent cutting.
2.Key components are designed with CAD software, in this way, the optimal structure can be
analyzed out by computer, which ensure the good intensity,rigidity and thermal stability.
3.The joint face of components are manually polished well, which guarantees the effective
contacting area.

Machine Parameter

CODE	ITEM		DETAILS
1	WORKTABLE（WIDTH×LENGTH）	mm	650×1300
2	T SLOTS	mm	5-18
3	DISTANCE BETWEEN T SLOTS	mm	100
4	MAX.LOAD BEARING OF WORKTABLE	kg	1000
TRAVEL
5	X AXIS	mm	1100
6	Y AXIS	mm	650
7	Z AXIS	mm	700
8	DISTANCE FROM COLUM TO SPINDLE CENTER	mm	775
9	DISTANCE FROM TABLE TOP SURFACE TO SPINDLE NOSE	mm	150-850
SPINDLE
10	SPINDLE HOLE TAPER	BT40
11	SPINDLE SPEED RANGE	r/min	20-8000
12	MAIN MOTOR MODEL	βiI12/10000
13	SERVO MAIN MOTOR RATED POWER	kw	11
14	SERVO MAIN MOTOR 30MINS POWER	kw	15
15	SERVO MAIN MOTOR RATED OUTPUT TORQUE	Nm	52.5
16	SPINDLE PART DYNAMIC BALANCE TYPE	G1
17	SPINDLE ACCURACY	SPINDLE FACE RUNOUT::0.005mm
17	SPINDLE ACCURACY	SPINDLE RADIAL RUNOUT :NEAR-END 0.007mm
TOOLS HOLDER SIZE
18	TOOLS HOLDER STANDARD	MSA403 BT40
19	RIVET STANDARD	MSA403 P40T-1
FEED
20	X/Y FEED MOTOR MODEL	βiSC 22/2000
21	X/Y FEED MOTOR MAX.SPEED	r/min	2000
22	X/Y FEED MOTOR RATED POWER	kw	2.5
23	X/Y FEED MOTOR RATED OUTPUT TORQUE	Nm	20
24	Z AXIS FEED MOTOR MODEL	βiSC 22B/2000
25	Z AXIS FEED MOTOR MAX SPEED	r/min	2000
26	Z FEED MOTOR RATED POWER	kw	2.5
27	Z FEED MOTOR RATED OUTPUT TORQUE	Nm	20
28	X/Y FEED RATE	m/min	20/20
29	Z FEED RATE	m/min	15
30	CUTTING FEED SPEED	mm/min	6000
TOOLS MAGAZINE
31	TOOLS MAGAZINE MODEL	MANIPULATOR
32	CAPACITY	PCS	24
33	FULL TOOLS MAX TOOL DIAMETER	mm	Ф78
34	NEIGHBOR EMPTY TOOL DIAMETER	mm	Ф120
35	MAX.TOOLS ALLOWABLE WEIGHT	kg	8
36	MAX.TOOLS ALLOWABLE LENGTH	mm	300
37	TOOL CHANGE TIME	s	5
38	TOOL CHANGE WAY	FORWARD/REVERSAL
POWER SOURCE
39	MACHINE ELECTRIC CAPACITY	KVA	20
40	COOLING PUMP FLOW RATE	L/min	40
41	MACHINE COMPRESSED AIR	kg	6～8
42	POWER REQUIREMENT	380V±10% 50Hz
ENVIRONMENTAL REQUIREMENT
43	ENVIRONMENTAL TEMPERATURE REQUIREMENT	0℃～40℃
44	RELATIVE HUMIDITY	20%～80%
MACHINE SIZE
45	MACHINE DIMENSION	mm	3030×2880×2850
46	MACHINE WEIGHT	kg	9000
47	MACHINE SHIELD		FULL PROTECT
ACCURACY
48	X/Y/Z POSITION ACCURACY	mm	±0.010
49	X/Y/Z RE-POSITION ACCURACY	mm	±0.005
OTHERS
50	GUIDE WAY MODELS	X,Y ROLLER LINEAR GUIDEWAY, Z BOXTYPE
51	CHIP CONVEYOR TYPE	FRONT
52	OIL-WATER SEPARATION	MACHINE TYPE OIL-WATER SEPARATION
53	CLEAN	MANUAL AIR GUN
54	PUNCHING TYPE	SPINDLE FRONT-END PUNCHING
55	SPINDLE PROTECT	AIR CURTAIN PROTECT
