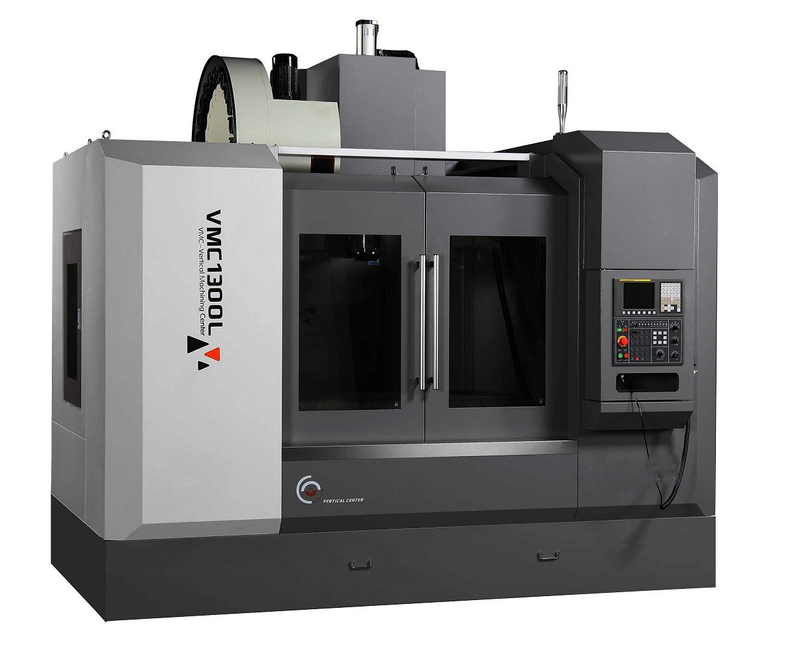

VMC1300L VERTICAL MACHINING CENTER
Quantity: -
VMC1300L
Product OverviewThis series vertical machining center adopts the moving structure of cross sliding table and sliding guide,which is mainly applied in processing of middle and small scalecomplicated parts.Apply the computeraided engineering(CAE)system to finish theoptimized structure design and enhance the reliability of machine tool,and the finite element method(FEM)to take the scientific analysis and optimization of design structure,which can guarantee the rigidity and stability of the whole machine structure.It can finish allkinds of processing,such as milling,drilling,expanding,boring,tapping and profile millingat one time of clamping.It is suitable for the parts processing with high precision,
multipe procedure and complicated shape.It is the key facility in industries of general machinery,mold,aviation,energy and traffic.
Machine Characteristics
1.The major machine components apply finest gray cast iron which are of good shock resistance. All the casts have been done with aging treatment twice, in order to eliminate the internal residual stresses. So that, our machine can work with high rigidity and goodshock resistance for heavy cutting and intermittent cutting.
2.Key components are designed with CAD software, in this way, the optimal structure can be analyzed out by computer, which ensure the good intensity,rigidity and thermalstability.3.The joint face of components are manually polished well, which guarantees the effective
contacting area.
Machine ParameterCODE
ITEM
DETAILS
1
WORKTABLE（WIDTH×LENGTH）
mm
700×1400
2
T SLOTS
mm
5-18
3
DISTANCE BETWEEN T SLOTS
mm
115
4
MAX.LOAD BEARING OF WORKTABLE
kg
1000
TRAVEL
5
X AXIS
mm
1300
6
Y AXIS
mm
700
7
Z AXIS
mm
700
8
DISTANCE FROM COLUM TO SPINDLE CENTER
mm
775
9
DISTANCE FROM TABLE TOP SURFACE TO SPINDLE NOSE
mm
BT50:103-803
SPINDLE
10
SPINDLE HOLE TAPER
BT50
11
SPINDLE SPEED RANGE
r/min
20-8000
12
MAIN MOTOR MODEL
βiI12/10000
13
SERVO MAIN MOTOR RATED POWER
kw
11
14
SERVO MAIN MOTOR 30MINS POWER
kw
15
15
SERVO MAIN MOTOR RATED OUTPUT TORQUE
Nm
52.5
16
SPINDLE PART DYNAMIC BALANCE TYPE
G1
17
SPINDLE ACCURACY
SPINDLE FACE RUNOUT::0.005mm
SPINDLE RADIAL RUNOUT :NEAR-END 0.007mm
TOOLS HOLDER SIZE
18
TOOLS HOLDER STANDARD
MSA403 BT50
19
RIVET STANDARD
MSA403 P50T-1
FEED
20
X/Y FEED MOTOR MODEL
βiSC 22/2000
21
X/Y FEED MOTOR MAX.SPEED
r/min
2000
22
X/Y FEED MOTOR RATED POWER
kw
2.5
23
X/Y FEED MOTOR RATED OUTPUT TORQUE
Nm
20
24
Z AXIS FEED MOTOR MODEL
βiSC 22B/2000
25
Z AXIS FEED MOTOR MAX SPEED
r/min
2000
26
Z FEED MOTOR RATED POWER
kw
2.5
27
Z FEED MOTOR RATED OUTPUT TORQUE
Nm
20
28
X/Y FEED RATE
m/min
20/20
29
Z FEED RATE
m/min
15
30
CUTTING FEED SPEED
mm/min
6000
TOOLS MAGAZINE
31
TOOLS MAGAZINE MODEL
MANIPULATOR
32
CAPACITY
PCS
24
33
FULL TOOLS MAX TOOL DIAMETER
mm
Ф112
34
NEIGHBOR EMPTY TOOL DIAMETER
mm
Ф200
35
MAX.TOOLS ALLOWABLE WEIGHT
kg
18
36
MAX.TOOLS ALLOWABLE LENGTH
mm
300
37
TOOL CHANGE TIME
s
5
38
TOOL CHANGE WAY
FORWARD/REVERSAL
POWER SOURCE
39
MACHINE ELECTRIC CAPACITY
KVA
20
40
COOLING PUMP FLOW RATE
L/min
40
41
MACHINE COMPRESSED AIR
kg
6～8
42
POWER REQUIREMENT
380V±10% 50Hz
ENVIRONMENTAL REQUIREMENT
43
ENVIRONMENTAL TEMPERATURE REQUIREMENT
0℃～40℃
44
RELATIVE HUMIDITY
20%～80%
MACHINE SIZE
45
MACHINE DIMENSION
mm
3330×2880×2850
46
MACHINE WEIGHT
kg
10000
47
MACHINE SHIELD
FULL PROTECT
ACCURACY
48
X/Y/Z POSITION ACCURACY
mm
±0.010
49
X/Y/Z RE-POSITION ACCURACY
mm
±0.005
OTHERS
50
GUIDE WAY MODELS
X.Y ROLLER LINEAR, Z BOXTYPE
51
CHIP CONVEYOR TYPE
FRONT
52
OIL-WATER SEPARATION
MACHINE TYPE OIL-WATER SEPARATION
53
CLEAN
MANUAL AIR GUN
54
PUNCHING TYPE
SPINDLE FRONT-END PUNCHING
