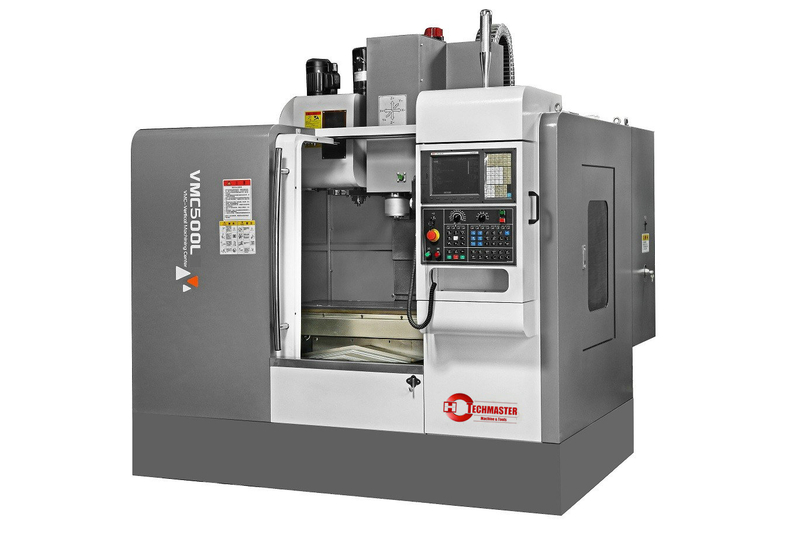

VMC500L VERTICAL MACHINING CENTER
Quantity: -
VMC500L
Product Overview
This series vertical machining center adopts the moving structure of cross sliding table and sliding guide,which is mainly applied in processing of middle and smallscale complicated parts.Apply the computeraided engineering(CAE)system to finish the optimized structure design and enhance the reliability of machine tool,and the finite element method(FEM)to take the scientific analysis and optimization of design structure,which can guarantee the rigidity and stability of the whole machine structure.It can finish all kinds of processing,such as milling,drilling,expanding,boring,tapping and profile milling at one time of clamping.It is suitable for the parts processing with high precision, multipe procedure and complicated shape.It is the key facility in industries of general machinery, mold,aviation,energy and traffic.
Machine Characteristics
1.The major machine components apply finest gray cast iron which are of good shock resistance.
All the casts have been done with aging treatment twice, in order to eliminate the internal residual stresses. So that, our machine can work with high rigidity and good shock resistance for heavy cutting and intermittent cutting.
2.Key components are designed with CAD software, in this way, the optimal structure can be
analyzed out by computer, which ensure the good intensity,rigidity and thermal stability.
3.The joint face of components are manually polished well, which guarantees the effective
contacting area.
Machine ParameterCODE
ITEM
DETAILS
1
WORKTABLE（WIDTH×LENGTH）
mm
380×720
2
T SLOTS
mm
3-18
3
DISTANCE BETWEEN T SLOTS
mm
100
4
MAX.LOAD BEARING OF WORKTABLE
kg
250
TRAVEL
5
X AXIS
mm
510
6
Y AXIS
mm
370
7
Z AXIS
mm
430
8
DISTANCE FROM COLUM TO SPINDLE CENTER
mm
429
9
DISTANCE FROM TABLE TOP SURFACE TO SPINDLE NOSE
mm
105-535
SPINDLE
10
SPINDLE HOLE TAPER
BT40
11
SPINDLE SPEED RANGE
r/min
20-8000
12
MAIN MOTOR MODEL
βiI6/ 12000
13
SERVO MAIN MOTOR RATED POWER
kw
5.5
14
SERVO MAIN MOTOR 30MINS POWER
kw
7.5
15
SERVO MAIN MOTOR RATED OUTPUT TORQUE
Nm
26.3
16
SPINDLE PART DYNAMIC BALANCE TYPE
G1
17
SPINDLE ACCURACY
SPINDLE FACE RUNOUT:0.005mm
SPINDLE RADIAL RUNOUT :NEAR-END 0.007mm
TOOLS HOLDER SIZE
18
TOOLS HOLDER STANDARD
MSA403 BT40
19
RIVET STANDARD
MSA403 P40T-1
FEED
20
X/Y FEED MOTOR MODEL
βiSC 8/3000
21
X/Y FEED MOTOR MAX.SPEED
r/min
3000
22
X/Y FEED MOTOR RATED POWER
kw
1.2
23
X/Y FEED MOTOR RATED OUTPUT TORQUE
Nm
7
24
Z AXIS FEED MOTOR MODEL
βiSC 12B/3000
25
Z AXIS FEED MOTOR MAX SPEED
r/min
3000
26
Z FEED MOTOR RATED POWER
kw
1.8
27
Z FEED MOTOR RATED OUTPUT TORQUE
Nm
11
28
X/Y FEED RATE
m/min
36
29
Z FEED RATE
m/min
32
30
CUTTING FEED SPEED
mm/min
10000
TOOLS MAGAZINE
31
TOOLS MAGAZINE MODEL
MANIPULATOR
32
CAPACITY
PCS
16
33
FULL TOOLS MAX TOOL DIAMETER
mm
Ф78
34
NEIGHBOR EMPTY TOOL DIAMETER
mm
Ф120
35
MAX.TOOLS ALLOWABLE WEIGHT
kg
8
36
MAX.TOOLS ALLOWABLE LENGTH
mm
240
37
TOOL CHANGE TIME
s
3
38
TOOL CHANGE WAY
FORWARD/REVERSAL
POWER SOURCE
39
MACHINE ELECTRIC CAPACITY
KVA
10
40
COOLING PUMP FLOW RATE
L/min
10
41
MACHINE COMPRESSED AIR
kg
6～8
42
POWER REQUIREMENT
380V±10% 50Hz
ENVIRONMENTAL REQUIREMENT
43
ENVIRONMENTAL TEMPERATURE REQUIREMENT
0℃～40℃
44
RELATIVE HUMIDITY
20%～80%
MACHINE SIZE
45
MACHINE DIMENSION
mm
1700×2200×2500
46
MACHINE WEIGHT
kg
2400
47
MACHINE SHIELD
FULL PROTECT
ACCURACY
48
X/Y/Z POSITION ACCURACY
mm
±0.010
49
X/Y/Z RE-POSITION ACCURACY
mm
±0.005
OTHERS
50
GUIDE WAY MODELS
Z BOX/ X,Y LINEAR
51
CHIP CONVEYOR TYPE
FRONT
52
OIL-WATER SEPARATION
MACHINE TYPE OIL-WATER SEPARATION
53
WASH TYPE
MANUAL AIR GUN
54
PUNCHING TYPE
SPINDLE FRONT-END PUNCHING
55
SPINDLE PROTECT
AIR CURTAIN PROTECT
