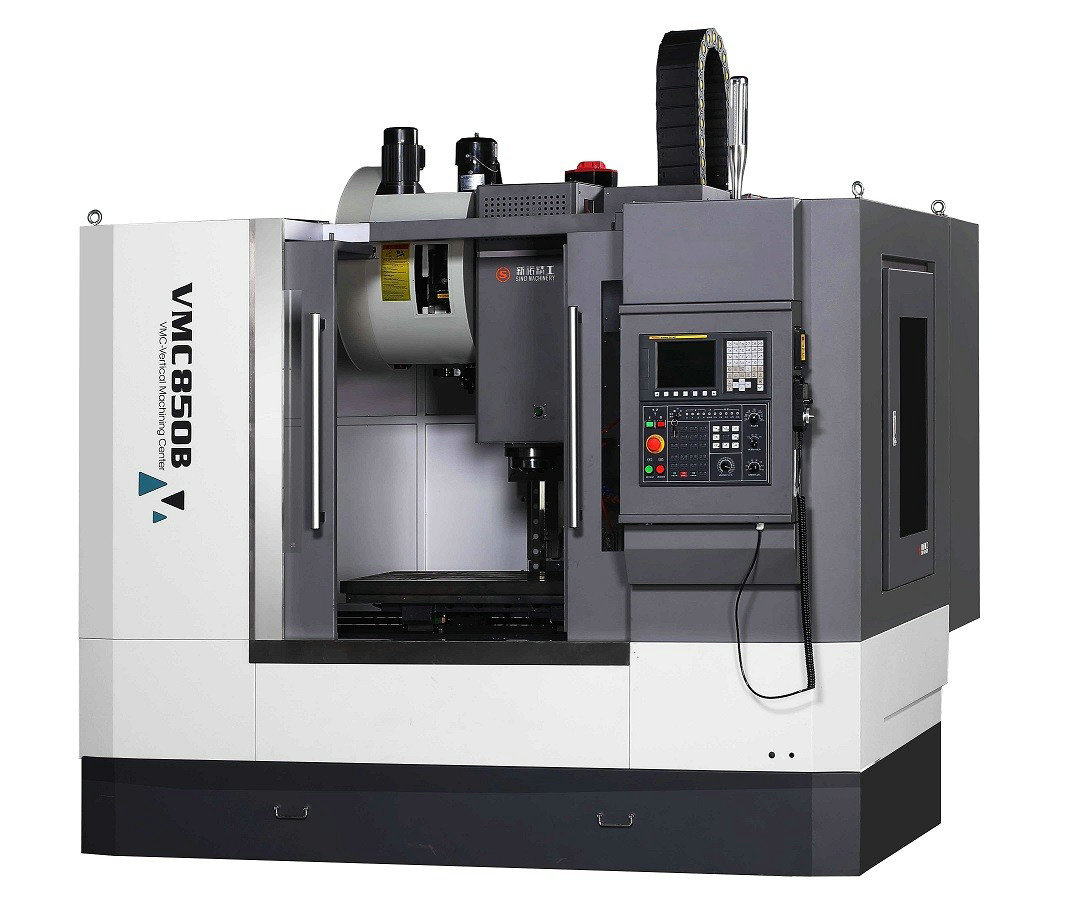

VMC850B is our new type of high speed CNC machining center based on Taiwan technology, which has more advantages on operation and capabilities compared with like products. Applied with high rigid C design on structure, it also has been done with reinforcement on machine ribs.All the contact faces have been scraped manually, which guarantees the durability of accuracy. X/Y axes apply with two types of rolling guide way: ball bearing and roller guide way, which is optional to customer’s requirements. Z axis applies roller guide way, which enables the machine to be with high rigidity, low noise, and small friction. Thus the machine can do rapid displacement and obtain circular accuracy. Equipped with air tank, the water can be drained out manually. Spindle is connected directly, and the highest speed is 12000RPM, which are a good choice for machining of high accuracy and efficiency.
Machine specification and parameters
CODE | ITEM | DETAILS | ||||||
1 | WORKTABLE（WIDTH×LENGTH） | mm | 520×1000 | |||||
2 | T SLOTS | mm | 5-18 | |||||
3 | DISTANCE BETWEEN T SLOTS | mm | 95 | |||||
4 | MAX.LOAD BEARING OF WORKTABLE | kg | 600 | |||||
TRAVEL | ||||||||
5 | X AXIS | mm | 850 | |||||
6 | Y AXIS | mm | 520 | |||||
7 | Z AXIS | mm | 650 | |||||
8 | DISTANCE FROM COLUM TO SPINDLE CENTER | mm | 656 | |||||
9 | DISTANCE FROM TABLE TOP SURFACE TO SPINDLE NOSE | mm | 110-760 | |||||
SPINDLE | ||||||||
10 | SPINDLE HOLE TAPER | BT40 | ||||||
11 | SPINDLE SPEED RANGE | r/min | 20-8000 | |||||
12 | THE TRANSMISSIONOF SPINDLE BOX | BELT DRIVE | ||||||
13 | MAIN MOTOR MODEL | βiI12/ 10000 | ||||||
14 | SERVO MAIN MOTOR RATED POWER | kw | 7.5 | |||||
15 | SERVO MAIN MOTOR 30MINS POWER | kw | 11 | |||||
16 | SERVO MAIN MOTOR RATED OUTPUT TORQUE | Nm | 35.8 | |||||
17 | SPINDLE PART DYNAMIC BALANCE TYPE | G1 | ||||||
18 | SPINDLE ACCURACY | SPINDLE FACE RUNOUT:0.005mm | ||||||
SPINDLE RADIAL RUNOUT :NEAR-END 0.003mm | ||||||||
TOOLS HOLDER SIZE | ||||||||
19 | TOOLS HOLDER STANDARD | MSA403 BT40 | ||||||
20 | RIVET STANDARD | MSA403 P40T-1 | ||||||
FEED | ||||||||
21 | X/Y FEED MOTOR MODEL | βiSC 22/2000 | ||||||
22 | X/Y FEED MOTOR MAX.SPEED | r/min | 2000 | |||||
23 | X/Y FEED MOTOR RATED POWER | kw | 2.5 | |||||
24 | X/Y FEED MOTOR RATED OUTPUT TORQUE | Nm | 20 | |||||
25 | Z AXIS FEED MOTOR MODEL | βiSC 22B/2000 | ||||||
26 | Z AXIS FEED MOTOR MAX SPEED | r/min | 2000 | |||||
27 | Z FEED MOTOR RATED POWER | kw | 2.5 | |||||
28 | Z FEED MOTOR RATED OUTPUT TORQUE | Nm | 20 | |||||
29 | X/Y FEED RATE | m/min | 40 | |||||
30 | Z FEED RATE | m/min | 30 | |||||
31 | CUTTING FEED SPEED | mm/min | 12000 | |||||
TOOL MAGAZINE | ||||||||
32 | TOOLS MAGAZINE MODEL | MANIPULATOR | ||||||
33 | CAPACITY | pcs | 24 | |||||
34 | FULL TOOLS MAX TOOL DIAMETER | mm | Ф78 | |||||
35 | NEIGHBOR EMPTY TOOL DIAMETER | mm | Ф120 | |||||
36 | MAX.TOOLS ALLOWABLE WEIGHT | kg | 8 | |||||
37 | MAX.TOOLS ALLOWABLE LENGTH | mm | 300 | |||||
38 | TOOL CHANGE TIME | s | 3.5 | |||||
39 | TOOL CHANGE WAY | FORWARD/REVERSAL | ||||||
POWER SOURCE | ||||||||
40 | MACHINE ELECTRIC CAPACITY | KVA | 20 | |||||
41 | COOLING PUMP FLOW RATE | L/min | 40 | |||||
42 | MACHINE COMPRESSED AIR | kg | 6～8 | |||||
43 | POWER REQUIREMENT | 380V±10% 50Hz | ||||||
ENVIRONMENTAL REQUIREMENT | ||||||||
44 | ENVIRONMENTAL TEMPERATURE REQUIREMENT | 0℃～40℃ | ||||||
45 | RELATIVE HUMIDITY | 20%～80% | ||||||
MACHINE SIZE | ||||||||
46 | MACHINE DIMENSION | mm | 2310×2636×2900 | |||||
47 | MACHINE WEIGHT | kg | 6500 | |||||
48 | MACHINE SHIELD | FULL PROTECT | ||||||
ACCURACY | ||||||||
49 | X/Y/Z POSITION ACCURACY | mm | ±0.010 | |||||
50 | X/Y/Z RE-POSITION ACCURACY | mm | ±0.005 | |||||
