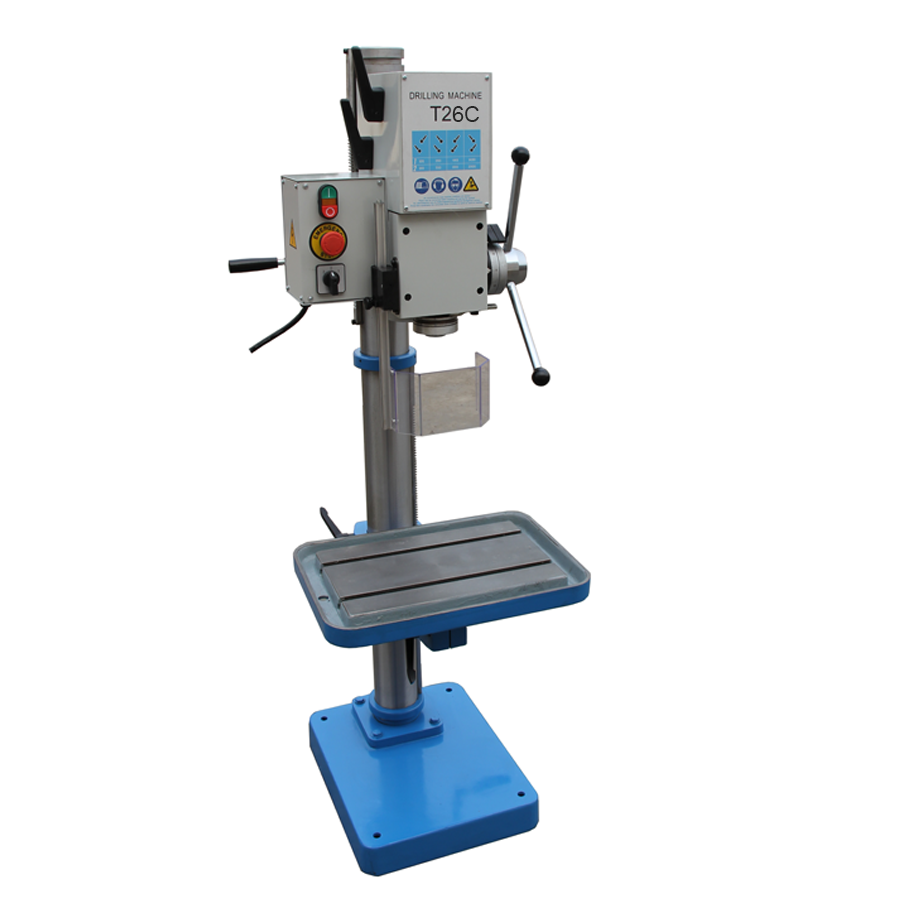

Vertical Drilling machine T-26C

Specifications



 vertical drlling machine with New CE standard
24V safe voltage control
Spindle protection with microswitch
High quality

 Features



1.Our vertical drilling machines T25 have height adjustable and rotary function on head unit and working table, they can provide proper drilling travel for various workpieces in different sizes.



2. The sleeve can be locked at any depth and the high-load tapered roller bearing guarantees the high-speed and smooth running of the main spindle.



3. The rapid and reliable retracting, clear scale identification and the small feeding depth positioning device can improve the drilling efficiency.



4. The power-off shield protection of our vertical drilling machine makes the work safer and efficient.



5.  24V safe voltage control

6. Spindle protection with microswitch


High Quality Vertical Drilling Machines T-26C, China manufacture



 Technical Specifications





Model	T-25C/T-25AC	T-25BC	T-26C	T-26BC
Max.drilling dia.(mm)	25	25	26	26
Spindle travel(mm)	125	125	125	125
Tapping capacity in steel /cast iron	M10/M16	M10/M16	M10/M16	M10/M16
Morse taper	MT3	MT3	MT3	MT3
Motor power	0.65kW/0.9kW	0.65kW/0.9kW	0.9kW/1.1kW	0.9kW/1.1kW
Spindle speeds at (50Hz)	105-210-350-445- 700-890-1450-2900	105-210-350-445- 700-890-1450-2900	105-210-350-445- 700-890-1450-2900	105-210-350-445- 700-890-1450-2900
Spindle speeds at 60(Hz)	130-260-420-840-535- 1070-1745-3200	130-260-420-840-535-1070-1745-3200	130-260-420-840-535- 1070-1745-3200	130-260-420-840-535- 1070-1745-3200
Packing size(cm)	167X57X72	94X46X73	167x57x72	94x46x73
N.W./G.W.	190/220kg	150/180kg	192/225	152/185
