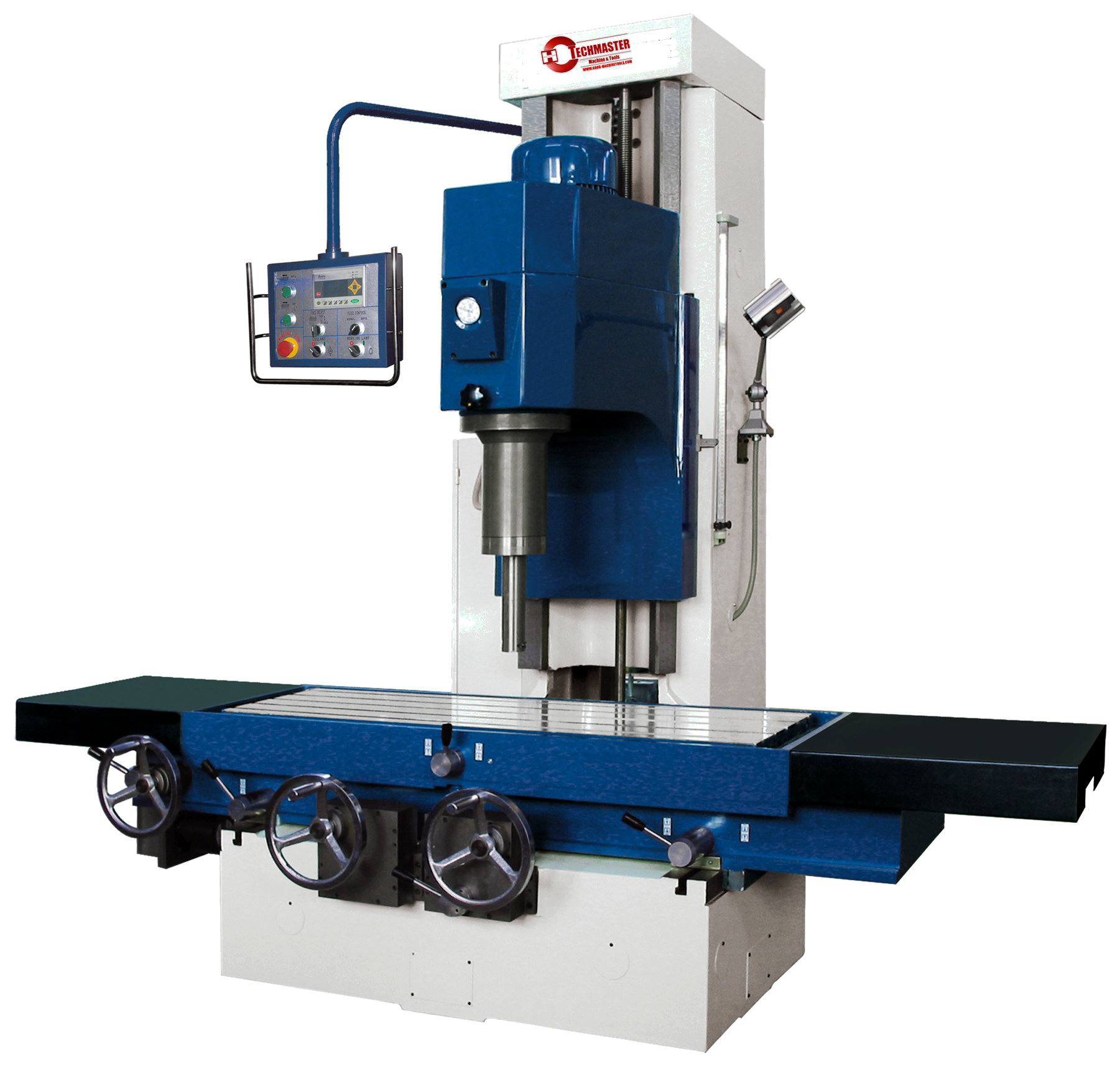

Vertical Fine Boring Machine T170A T200A T250A
Quantity: Characteristic
●Stepless of spindle turning ,feeding
●Rotating speed and feed of spindle is free-setup, automatical retuning of spindle can be realized
●Longitudinal and cross movement of table
●Complete set of accessories of boring, drilling & reaming and easy exchange
●Spindle fast centering device
●Tool measuring device
●Boring depth control device
●Table with digital readout for jig borer machine
Parameter
Parameter
T170A T200A T250A Max. boring diameter Mm φ170 φ200 φ250 Max. boring depth Mm 400 500 500 Max. drilling& reaming diameter Mm φ30 Spindle speed r/min 120-860 Feeding of the spindle Mm/min 14-900 Rapid moving speed of the spindle Mm/mim 900 Spindle travel Mm 700 Distance between spindle end face and table Mm 0-700 Distance between spindle axis and carriage vertical plane Mm 350 Max. longitudinal travel of the working table Mm 1500 Max. cross travel of the working table Mm 200 Worktable size(W*L) Mm 500*1250 500*1500 500*1500 Quantity of “T” slot Qua. 5 Dimensional precision of boring hole
H7 Machining precision Roundness Mm 0.005 Cylindricity Mm 0.01/300 Boring surface roughness Um Ra2.5 Main motor power Kw 3 Overall dimensions (L*W*H) Cm 260*163*230 Packing dimensions(L*W*H) Cm 225*190*227 N.W./G.W kg 3300/3600 3500/3800 3500/3800 Remark You can buy relative accessories to upgrade your machine.
T series +TX PLC+Grinding head φ250 UPGRADE TX series.
T series +TXM PLC+Grinding head φ250 +Grinding head φ320 +Cooling tank+Protecting panel +AC Contactor UPGRADE TXM series
