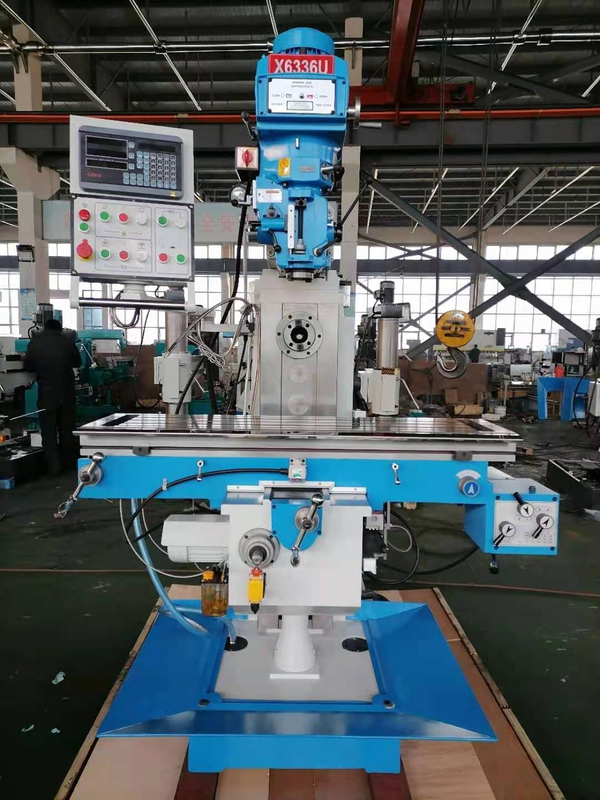

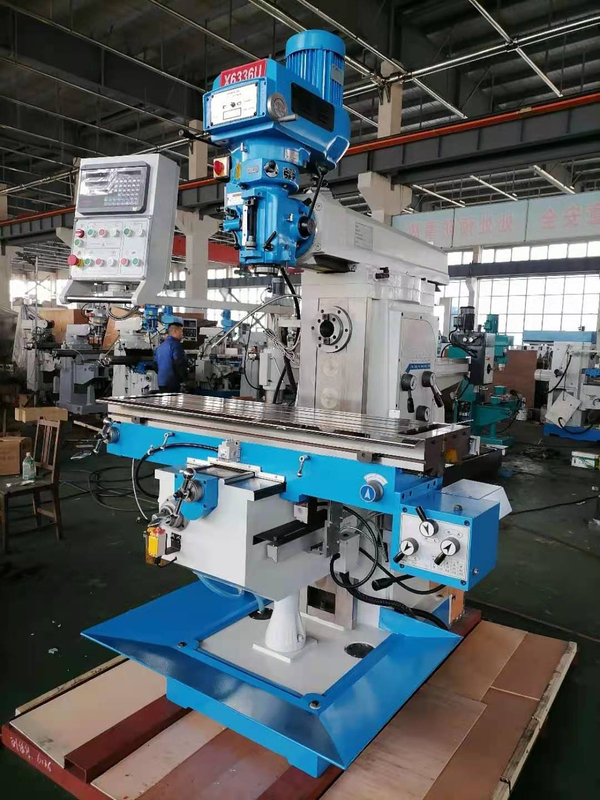

Vertical & Horizontal Spindle Turret Milling X6336U VARIO
Quantity: -
Vertical & Horizontal Spindle Turret Milling , 3 Axis Digital Read Out, X6336U VARIO
Description
This Mill is made with uncompromising quality Hardened and ground table, chromed quill & Turcite coated ways, ballscrew drive mean built-in durability for years of service. With a large 140mm quill travel standard. Check out the capacities, features & specifications below! This is the machine to have for years of accurate, trouble-free operation. Fitted with Easson 3 axis digital read out. two axis table feed, power knee, variable speed head, quill feed all combine to serve you well.
Features
3 axis DRO fitted standard
Horizontal Arbour. Precision Ballscrew Spindles.
Infinitely variable speed drive head with digital display
Rapid Feeds in X,Y,Z Axis
Taiwanese head and quality Meehanite cast frame
Solid, precise cross table with ground surface
Precisely ground carriage guides with adjustable dovetail guides
Head swivels to left and to right
Head tilts ±45° front to back

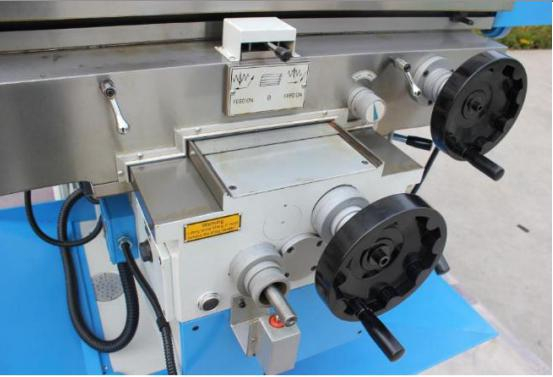

X & y axis feed standard
Fine feed on spindle
Power raise and lower of knee

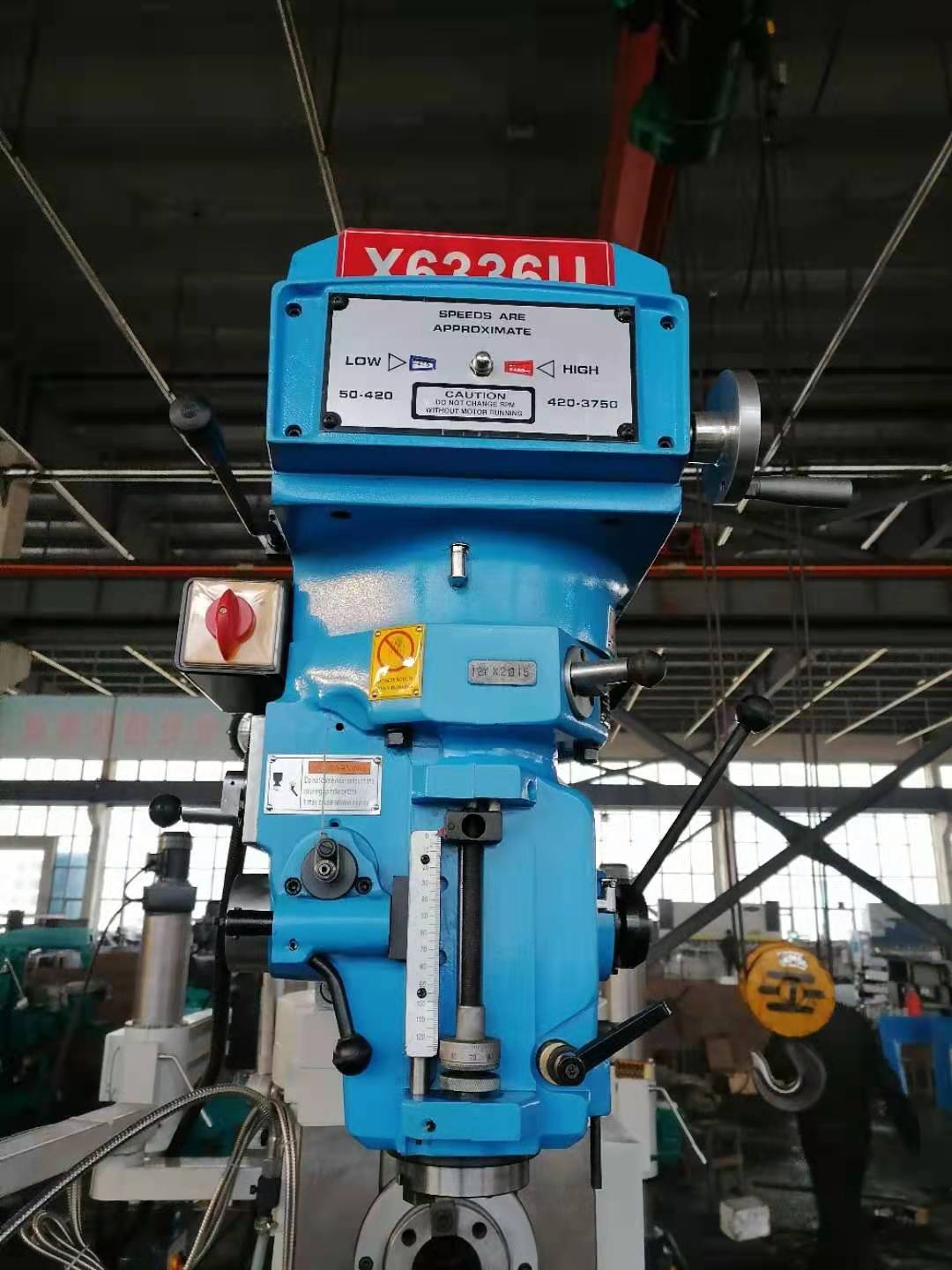

Cutter head with honed sleeve support
Chrome-plated sleeve with extremely long cutting stroke
Large spindle bearings guarantee stability during milling
Guaranteed true run out on spindle taper 0.01 mm
Automatic sleeve stroke
Spindle with right or left-handed rotation function
Cutter head with reduction gear for high torque
Mechanical spindle brake
Halogen work light
Safety interlocked spindle guard
Coolant system standard
Drilling and milling guard
Tool box with tools
Operation & service manual
Technical Data - Snap Shot
table size - 1320mm x 360mm
T slots – 3 off x 18mm wide
table load – 300kg
X / Y / Z travel - 1000mm / 300mm / 450mm
spindle quill travel - 140mm
quill diameter - 120mm
vertical holding fixture - ISO / INT-40
horizontal holding fixture - ISO / INT-50
vertical speeds - 76 ~ 3620 - variable
horizontal speeds - 58 ~ 1800 - variable
motor capacity – 3.7Kw x 240Volt
shipping dimensions - 2000mm x 2000mm x 2340mm
approx weight: 2400kg
Includes
3 Axis digital readout system
2 x Axis power-feed
2 x horizontal arbors - 1 x 27mm & 1 x 32mm diameter.
limit switch safety cutter guard
swarf tray
coolant system
work lamp
tool box and operation manual
