Vertical &Horizontal milling head Drilling Milling Machine ZAY7532--ZAY7550
Quantity: -
ZAY7532/1

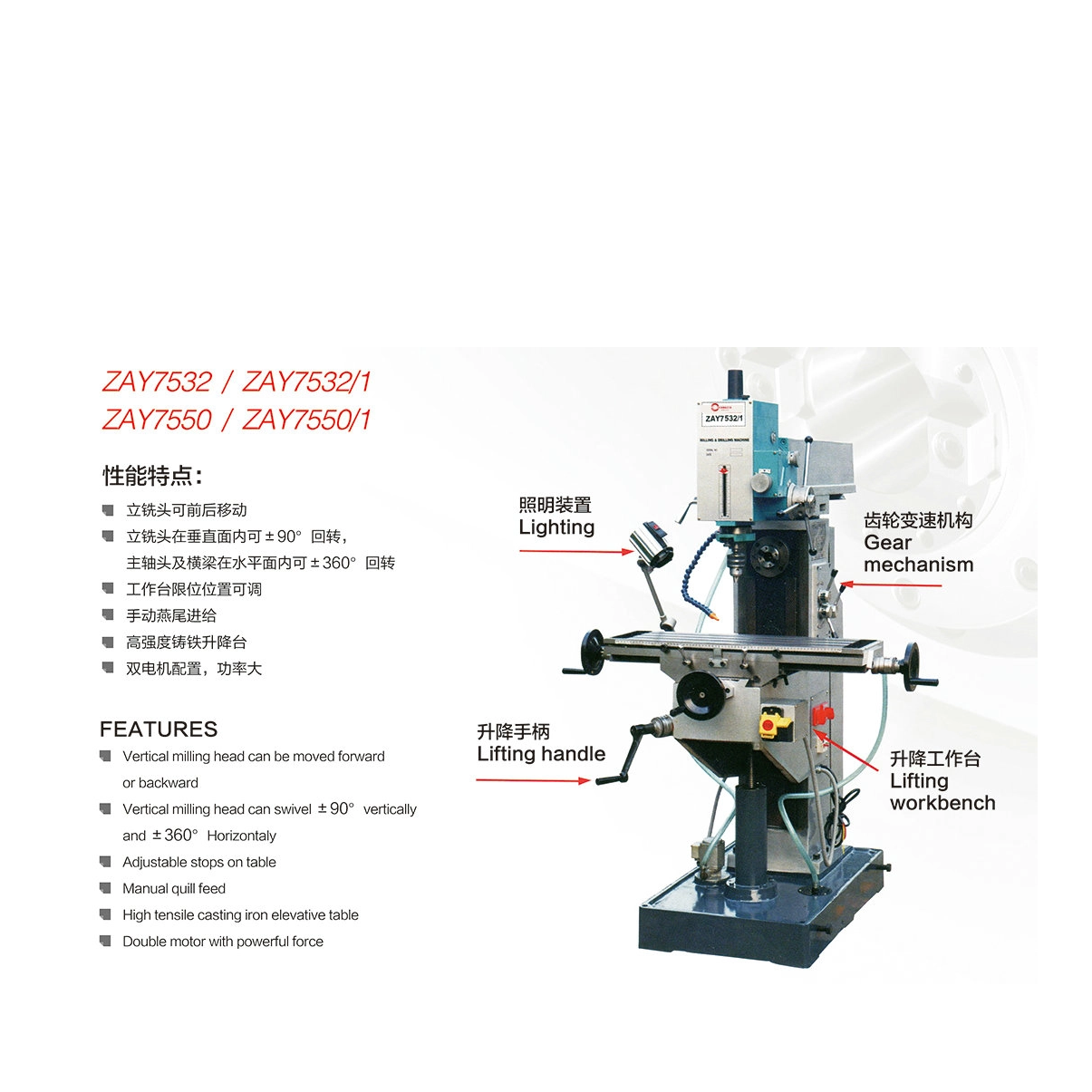

The main performance characteristics:
Vertical milling head can be moved forward or backward
Vertical milling head can swivel 90 vertically and 360 horizontally.
Adjustable atops on table
Manual quill feed
High tensile casting iron elevative table
Double motor with powerful force
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system
Product main technical parameters:
ITEM
ZAY7532/1
ZAY7540/1
ZAY7550/1
Max.drilling capacity
32mm
40mm
50mm
Max.milling capacity(end/face)
25/100mm
32/100mm
32/100mm
Swivel angle of headstock(perpendicular)
±90°
±90°
±90°
spindle taper(end/face)
M.T.3 M.T.4
M.T.4
M.T.4
Distance from spindle nose to worktable surface
80-480mm
80-480mm
80-480mm
spindle travel
130mm
130mm
130mm
beam travel
500mm
500mm
500mm
step of spindle speed(end/face)
6\12
6\12
6\12
Range of spindle speed(end/face) 50HZ
90-1600 /38-1280 (r/min)
90-1600 /38-1280 (r/min)
90-1600 /38-1280 (r/min)
60HZ (4 poles)
110-1920 /45-1540 (r/min)
110-1920 /45-1540 (r/min)
110-1920 /45-1540 (r/min)
Step of spindle auto-feeding(end/face)
3
3
3
Range of spindle auto-feeding(end/face)
0.12 0.18 0.25
0.12 0.18 0.25
0.12 0.18 0.25
Worktable size
800×240mm
800×240mm
1000×240mm
Forward and afterward travel of worktable
300mm
300mm
300mm
Left anf right travel of worktable
585mm
585mm
785mm
Vertical travel of worktable
400mm
400mm
400mm
Min.distance from spindle axis to column
290mm
290mm
290mm
Power(end/face)
0.75KW(1HP)/1.5KW
1.1KW(1.5HP)/1.5KW
1.5KW(2HP)/1.5KW
Cooling pump power
0.04KW
0.04KW
0.04KW
Net weight/Gross weight
930kg/1030kg
933kg/1033kg
950kg/1050kg
Packing size
1020×1350×1850mm
1020×1350×1850mm
1220×1350×1850mm
The main performance characteristics:
Vertical milling head can be moved forward or backward
Vertical milling head can swivel 90 vertically and 360 horizontally.
Adjustable atops on table
Manual quill feed
High tensile casting iron elevative table
Double motor with powerful force
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system
Product main technical parameters:
ITEM
ZAY7532/1
ZAY7540/1
ZAY7550/1
Max.drilling capacity
32mm
40mm
50mm
Max.milling capacity(end/face)
25/100mm
32/100mm
32/100mm
Swivel angle of headstock(perpendicular)
±90°
±90°
±90°
spindle taper(end/face)
M.T.3 M.T.4
M.T.4
M.T.4
Distance from spindle nose to worktable surface
80-480mm
80-480mm
80-480mm
spindle travel
130mm
130mm
130mm
beam travel
500mm
500mm
500mm
step of spindle speed(end/face)
6\12
6\12
6\12
Range of spindle speed(end/face) 50HZ
90-1600 /38-1280 (r/min)
90-1600 /38-1280 (r/min)
90-1600 /38-1280 (r/min)
60HZ (4 poles)
110-1920 /45-1540 (r/min)
110-1920 /45-1540 (r/min)
110-1920 /45-1540 (r/min)
Step of spindle auto-feeding(end/face)
3
3
3
Range of spindle auto-feeding(end/face)
0.12 0.18 0.25
0.12 0.18 0.25
0.12 0.18 0.25
Worktable size
800×240mm
800×240mm
1000×240mm
Forward and afterward travel of worktable
300mm
300mm
300mm
Left anf right travel of worktable
585mm
585mm
785mm
Vertical travel of worktable
400mm
400mm
400mm
Min.distance from spindle axis to column
290mm
290mm
290mm
Power(end/face)
0.75KW(1HP)/1.5KW
1.1KW(1.5HP)/1.5KW
1.5KW(2HP)/1.5KW
Cooling pump power
0.04KW
0.04KW
0.04KW
Net weight/Gross weight
930kg/1030kg
933kg/1033kg
950kg/1050kg
Packing size
1020×1350×1850mm
1020×1350×1850mm
1220×1350×1850mm
