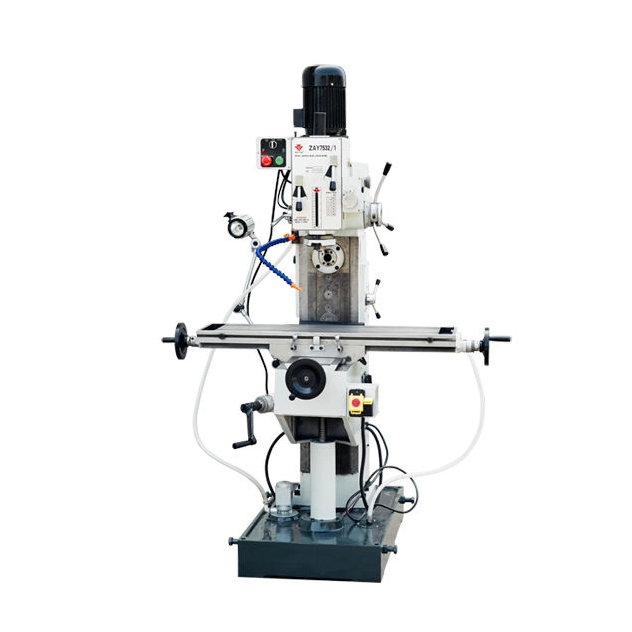

Vertical &Horizontal milling head Drilling Milling Machine ZAY7532-- -ZAY7550

Quantity:
  • ZAY7532



The main performance characteristics:

Vertical milling head can be moved forward or backward

Vertical milling head can swivel 90 vertically and 360 horizontally.

Adjustable atops on table

Manual quill feed

High tensile casting iron elevative table

Double motor with powerful force

Standard accessories:

Allen wrench

Drift

Spanner

Drill chuck rod

Screw-driver

Draw bar and gasket

Optional accessories:

Stand

Oil basin

Power feed attachment

Machine vice

Drill chuck

Milling cutter holder

Reducing sleeve

Mill chuck

Boring rod

Tapping electrical system

Coolant system



SPECIFICATION



ITEM ZAY7532 ZAY7550 ZAY7532/1 ZAY7550/1
Max. drilling capacity 32mm 50mm 32mm 50mm
Max. milling capacity(end/face) 25/100mm 32/100mm 25/100mm 32/100mm
Swivel angle of headstock(perpendicular) ±90°
spindle taper(end/face) M.T.3 M.T.4 M.T.4 M.T.3 M.T.4 M.T.4
Distance from spindle nose to worktable surface 80-480mm
spindle travel 130mm
beam travel 500mm
step of spindle speed(end/face) 612
Range of spindle speed(end/face) 50HZ 80-1250 /38-1280 (r/min) 90-1600 /38-1280 (r/min)
60HZ (4 poles) 95-1500 /45-1540 (r/min) 110-1920 /45-1540 (r/min)
Step of spindle auto-feeding(end/face) 3
Range of spindle auto-feeding(end/face) 0.12 0.18 0.25
Worktable size 800×240mm    1000×240mm    800×240mm    1000×240mm
Forward and backward travel of worktable 300mm
Left and right travel of worktable 585mm 785mm 585mm 785mm
Vertical travel of worktable 400mm
Min. distance from spindle axis to column 290mm
Power(end/face) 0.75KW/1.5KW 1.1KW/1.5KW 0.75KW/1.5KW 1.5KW/1.5KW
Cooling pump power 0.04KW
Net weight/Gross weight 910kg/1010kg 930kg/1030kg 930kg/1030kg 950kg/1050kg
Packing size

1020×1350×

1850mm

1220×1350×

1850mm

1020×1350×

1850mm

1220×1350×

1850mm

Loading amount 13pcs/20'container 12pcs/20'container 13pcs/20'container 12pcs/20'container
