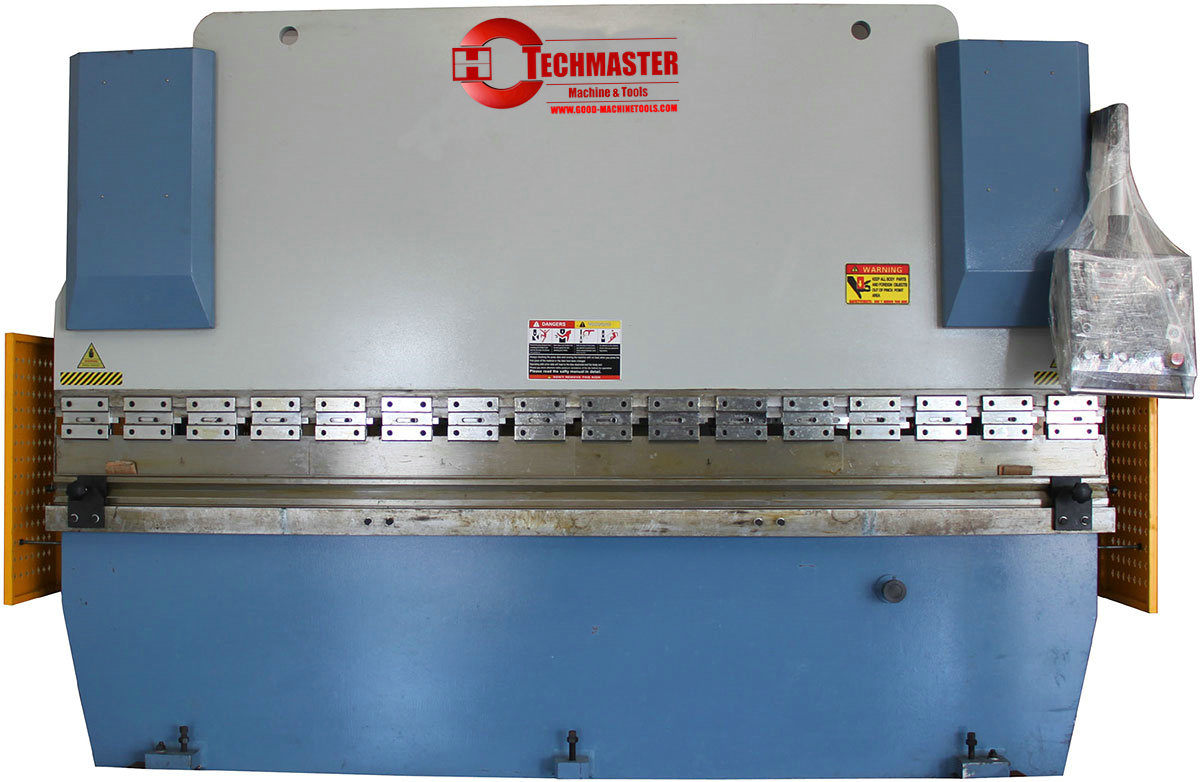

WC67Y PRESS BRAKE
Quantity: Model Tonnage (TON) Working Table Length (mm) Distance between Uprights (mm) Throat Depth (mm) Slide Stroke (mm) Maximum Opening Height (mm) Motor Power (kw) Weight (Kgs) 63/2500 63 2500 2050 250 120 350 5.5 4200 63/3200 63 3200 2600 250 120 350 5.5 5200 80/2500 80 2500 2050 250 120 360 7.5 5100 80/3200 80 3200 2600 250 120 360 7.5 6000 100/2500 100 2500 2050 320 120 380 7.5 5700 100/3200 100 3200 2600 320 120 380 7.5 6800 125/2500 125 2500 2050 320 120 380 7.5 5800 125/3200 125 3200 2600 320 120 380 7.5 7000 160/3200 160 3200 2600 320 155 420 11 9200 160/4000 160 4000 3200 320 155 420 11 11200 200/3200 200 3200 2600 320 200 440 15 10400 200/4000 200 4000 3200 320 200 440 15 12800 250/3200 250 3200 2600 320 250 520 18.5 11900 250/4000 250 4000 3200 320 250 520 18.5 14000 300/3200 300 3200 2600 400 250 535 22 16600 300/4000 300 4000 3200 400 250 535 22 18300 400/3200 400 3200 2600 400 320 615 30 22000 400/4000 400 4000 3200 400 320 615 30 25000 500/4000 500 4000 3200 400 320 635 30 30000
Model Tonnage (TON) Working Table Length (mm) Distance between Uprights (mm) Throat Depth (mm) Slide Stroke (mm) Maximum Opening Height (mm) Motor Power (kw) Weight (Kgs) 63/2500 63 2500 2050 250 120 350 5.5 4200 63/3200 63 3200 2600 250 120 350 5.5 5200 80/2500 80 2500 2050 250 120 360 7.5 5100 80/3200 80 3200 2600 250 120 360 7.5 6000 100/2500 100 2500 2050 320 120 380 7.5 5700 100/3200 100 3200 2600 320 120 380 7.5 6800 125/2500 125 2500 2050 320 120 380 7.5 5800 125/3200 125 3200 2600 320 120 380 7.5 7000 160/3200 160 3200 2600 320 155 420 11 9200 160/4000 160 4000 3200 320 155 420 11 11200 200/3200 200 3200 2600 320 200 440 15 10400 200/4000 200 4000 3200 320 200 440 15 12800 250/3200 250 3200 2600 320 250 520 18.5 11900 250/4000 250 4000 3200 320 250 520 18.5 14000 300/3200 300 3200 2600 400 250 535 22 16600 300/4000 300 4000 3200 400 250 535 22 18300 400/3200 400 3200 2600 400 320 615 30 22000 400/4000 400 4000 3200 400 320 615 30 25000 500/4000 500 4000 3200 400 320 635 30 30000
