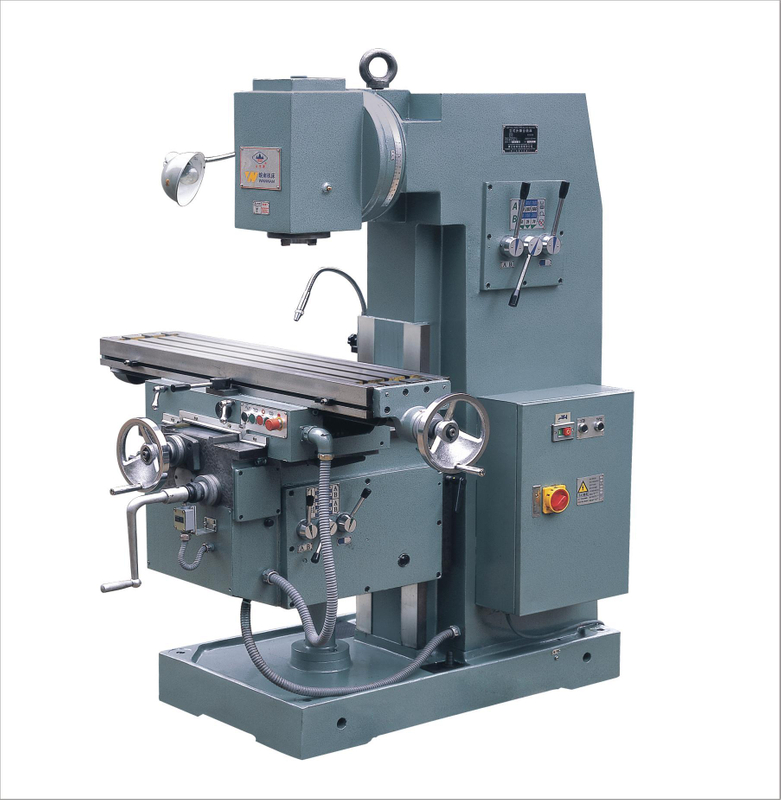

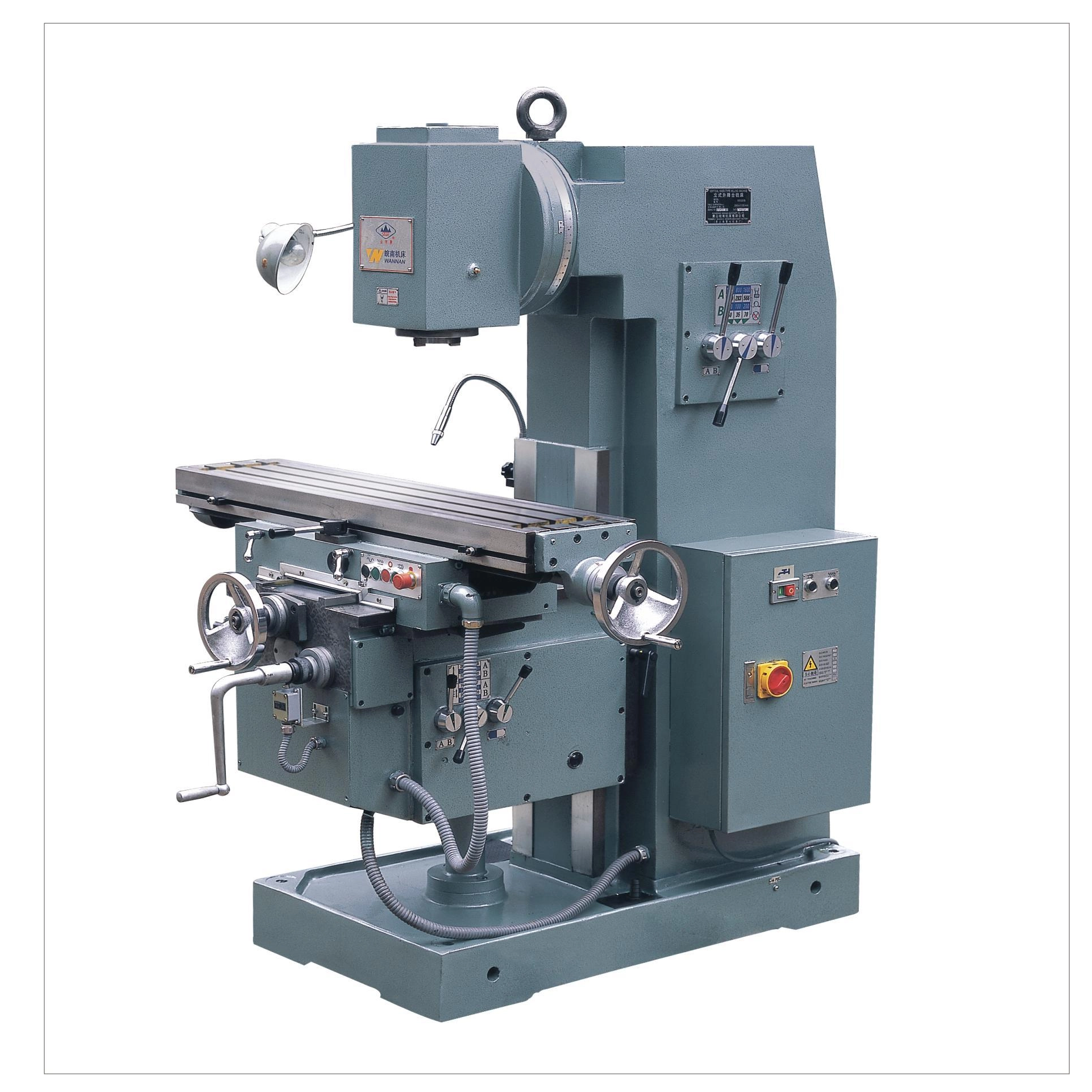

X5025B VERTICAL KNEE TYPE MILLING MACHINE

Quantity:
  • X5025B

♥Product Overview

☆X5025B vertical knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.

♥Machine Characteristics

Vertical milling head can rotate ±45°. Spindle quill can move vertically. Worktable is applied to automatic and rapid feed.

Hardened and ground slide ways ensure high accuracy.

With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.

With gear transmission in machine body and lifting platform, the machine is rigid enough to bear heavy duty processing.

Complete coolant and lubrication system.

DRO equipment is optional.

♥Machine Parameter

CODE

ITEM


DETAILS

1

WORKTABLEWIDTH×LENGTH

mm

250×1100

2

T SLOTS

mm

3×14

3

DISTANCE BETWEEN T SLOTS

mm

63

TRAVEL

4

LONGITUDINAL TRAVEL X

mm

720

5

CROSS TRAVEL Y

mm

265

6

VERTICAL TRAVEL Z

mm

410

SPINDLE

7

MAX. ROTARY ANGLE OF VERTICAL MILLING HEAD

±45°

8

SPINDLE HOLE TAPER

7:24, NO:40

9

SPINDLE SPEED STEPS

12

10

SPINDLE SPEED RANGE

r/min

35-1600

11

ARBOR DIAMETER

mm

Φ27

FEED

12

FEED SPEED STEPS

12

13

FEED SPEED RANGE:LONGITUDINAL X

mm/min

12-560

14

FEED SPEED RANGE:CROSS Y

mm/min

12-560

15

FEED SPEED RANGE:VERTICAL Z

mm/min

5-226

16

RAPID FEED RANGE:LONGITUDINAL X

mm/min

1780

17

RAPID FEED RANGE:CROSS Y

mm/min

1780

18

RAPID FEED RANGE:VERTICAL Z

mm/min

720

POWER SOURCE

19

MAIN MOTOR POWER

kw

4

20

FEED MOTOR POWER

kw

0.75

21

VOLTAGE/FREQUENCY(ACCORDING TO YOUR REQUIREMENT)

V/hz

380/50

OTHERS

22

DISTANCE FROM SPINDLE CENTER TO VERTICAL GUIDE WAY

    mm

290

23

DISTANCE FROM SPINDLE NOSE TO WORKTABLE SURFACE

mm

60-470

24

MACHINE DIMENSION

mm

1670×1350×1800

25

PACKAGE DIMENSION

    mm

1540×1500×2136

26

MACHINE WEIGHT

kg

1800
