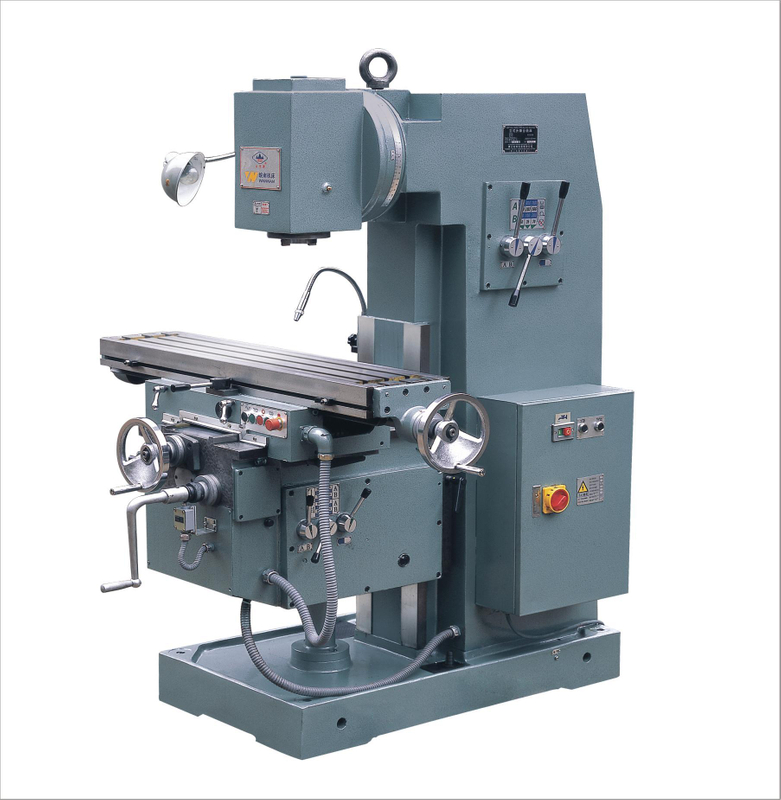

X5025B VERTICAL KNEE TYPE MILLING MACHINE
Quantity: -
X5025B
♥Product Overview
☆X5025B vertical knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.
♥Machine Characteristics
☆Vertical milling head can rotate ±45°. Spindle quill can move vertically. Worktable is applied to automatic and rapid feed.
☆Hardened and ground slide ways ensure high accuracy.
☆With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.
☆With gear transmission in machine body and lifting platform, the machine is rigid enough to bear heavy duty processing.
☆Complete coolant and lubrication system.
☆DRO equipment is optional.
♥Machine Parameter
CODE
ITEM
DETAILS
1
WORKTABLE（WIDTH×LENGTH）
mm
250×1100
2
T SLOTS
mm
3×14
3
DISTANCE BETWEEN T SLOTS
mm
63
TRAVEL
4
LONGITUDINAL TRAVEL X
mm
720
5
CROSS TRAVEL Y
mm
265
6
VERTICAL TRAVEL Z
mm
410
SPINDLE
7
MAX. ROTARY ANGLE OF VERTICAL MILLING HEAD
±45°
8
SPINDLE HOLE TAPER
7:24, NO:40
9
SPINDLE SPEED STEPS
12
10
SPINDLE SPEED RANGE
r/min
35-1600
11
ARBOR DIAMETER
mm
Φ27
FEED
12
FEED SPEED STEPS
12
13
FEED SPEED RANGE:LONGITUDINAL X
mm/min
12-560
14
FEED SPEED RANGE:CROSS Y
mm/min
12-560
15
FEED SPEED RANGE:VERTICAL Z
mm/min
5-226
16
RAPID FEED RANGE:LONGITUDINAL X
mm/min
1780
17
RAPID FEED RANGE:CROSS Y
mm/min
1780
18
RAPID FEED RANGE:VERTICAL Z
mm/min
720
POWER SOURCE
19
MAIN MOTOR POWER
kw
4
20
FEED MOTOR POWER
kw
0.75
21
VOLTAGE/FREQUENCY(ACCORDING TO YOUR REQUIREMENT)
V/hz
380/50
OTHERS
22
DISTANCE FROM SPINDLE CENTER TO VERTICAL GUIDE WAY
mm
290
23
DISTANCE FROM SPINDLE NOSE TO WORKTABLE SURFACE
mm
60-470
24
MACHINE DIMENSION
mm
1670×1350×1800
25
PACKAGE DIMENSION
mm
1540×1500×2136
26
MACHINE WEIGHT
kg
1800
