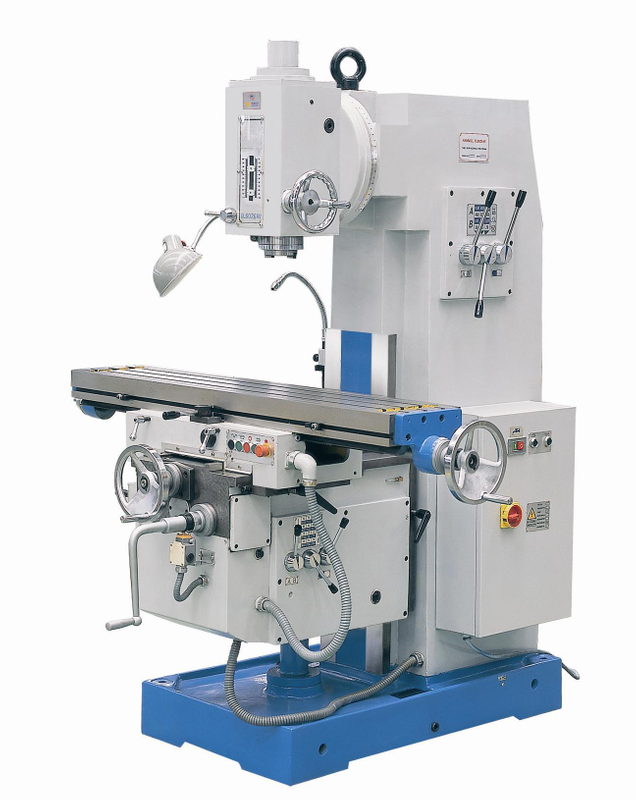

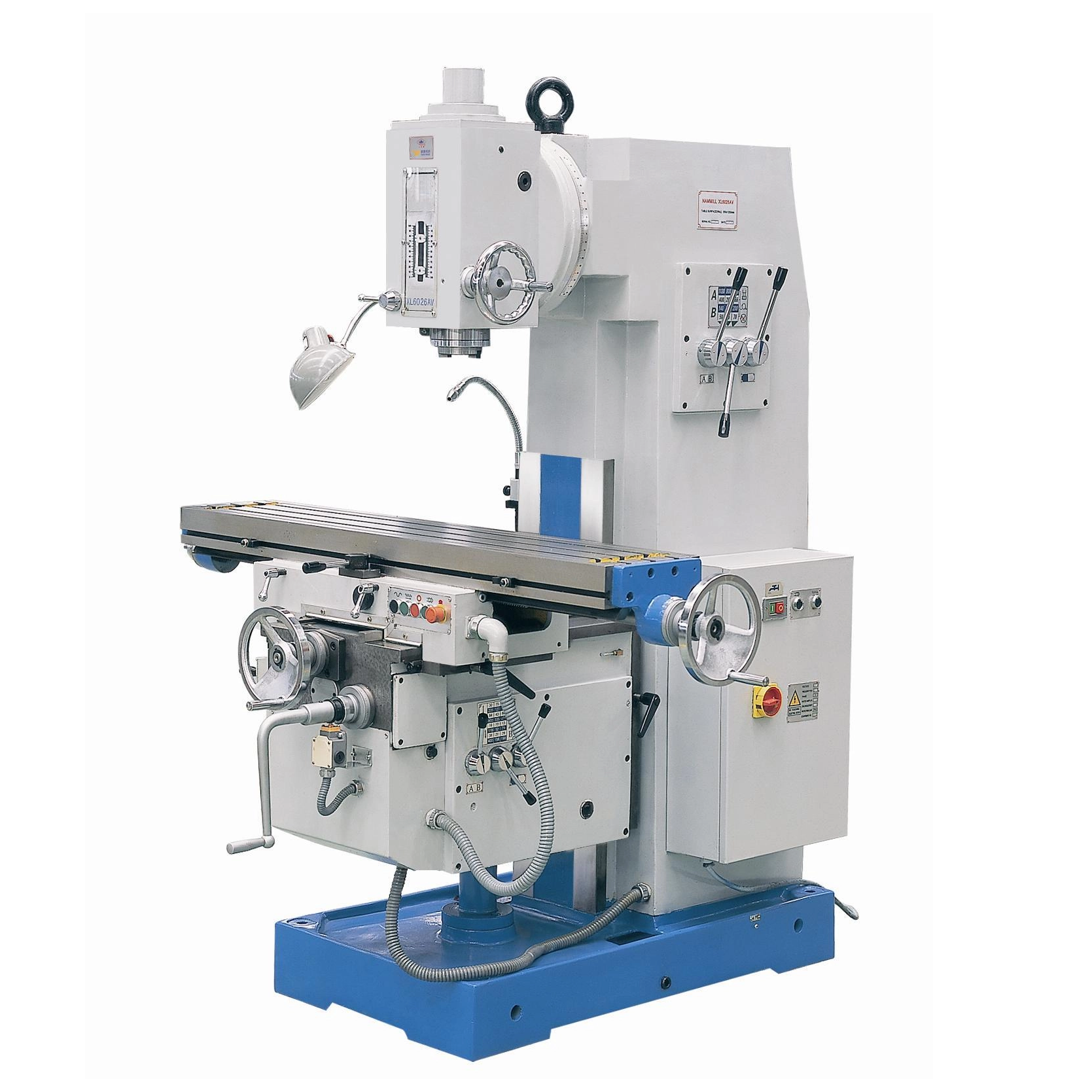

X5030C VERTICAL MILLING MACHINE
Quantity: -
X5030C
Product Overview
☆X5030C vertical knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.
♥Machine Characteristics
☆Vertical milling head can rotate ±45°. Spindle quill can move vertically. Worktable is applied to automatic and rapid feed.
☆Hardened and ground slide ways ensure high accuracy.
☆With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.
☆With gear transmission in machine body and lifting platform, the machine is rigid enough to bear heavy duty processing.
☆Complete coolant and lubrication system.
☆DRO equipment is optional.
♥Machine Parameter
CODE
ITEM
DETAILS
1
WORKTABLE（WIDTH×LENGTH）
mm
300×1250
2
T SLOTS
mm
3×14
3
DISTANCE BETWEEN T SLOTS
mm
63
4
MAX.LOAD BEARING OF WORKTABLE
kg
250
TRAVEL
5
LONGITUDINAL TRAVEL X
mm
800
6
CROSS TRAVEL Y
mm
265
7
VERTICAL TRAVEL Z
mm
410
SPINDLE
8
MAX. ROTARY ANGLE OF VERTICAL MILLING HEAD
±45°
9
SPINDLE HOLE TAPER
7:24, NO:40
10
SPINDLE SPEED STEPS
12
11
SPINDLE SPEED RANGE
r/min
35-1600
12
ARBOR DIAMETER
mm
Φ27
13
SPINDLE QUILL TRAVEL
mm
70
FEED
14
FEED SPEED STEPS
12
15
FEED SPEED RANGE:LONGITUDINAL X
mm/min
15-800
16
FEED SPEED RANGE:CROSS Y
mm/min
15-800
17
FEED SPEED RANGE:VERTICAL Z
mm/min
6-270
18
RAPID FEED RANGE:LONGITUDINAL X
mm/min
2100
19
RAPID FEED RANGE:CROSS Y
mm/min
2100
20
RAPID FEED RANGE:VERTICAL Z
mm/min
880
POWER SOURCE
21
MAIN MOTOR POWER
kw
4
22
FEED MOTOR POWER
kw
0.75
23
VOLTAGE/FREQUENCY(ACCORDING TO YOUR REQUIREMENT)
V/hz
380/50
OTHERS
24
DISTANCE FROM SPINDLE CENTER TO VERTICAL GUIDE WAY
mm
290
25
DISTANCE FROM TABLE CENTER TO VERTICAL GUIDE WAY
mm
152-417
26
DISTANCE FROM SPINDLE NOSE TO WORKTABLE SURFACE
mm
60-470
27
MACHINE DIMENSION
mm
1650×1540×1920
28
PACKAGE DIMENSION
mm
1670×1580×2040
29
MACHINE WEIGHT
kg
1800
