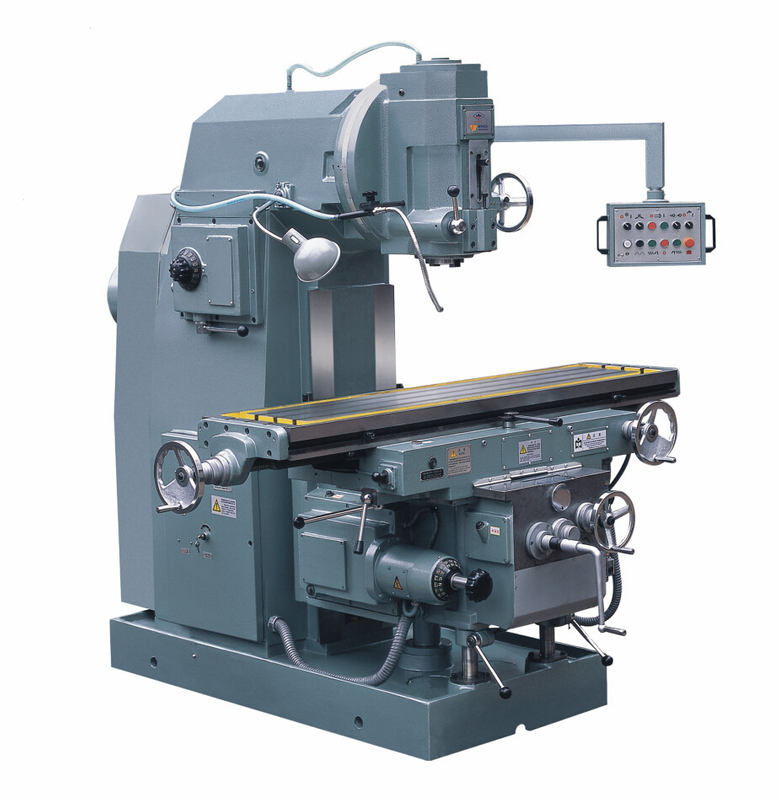

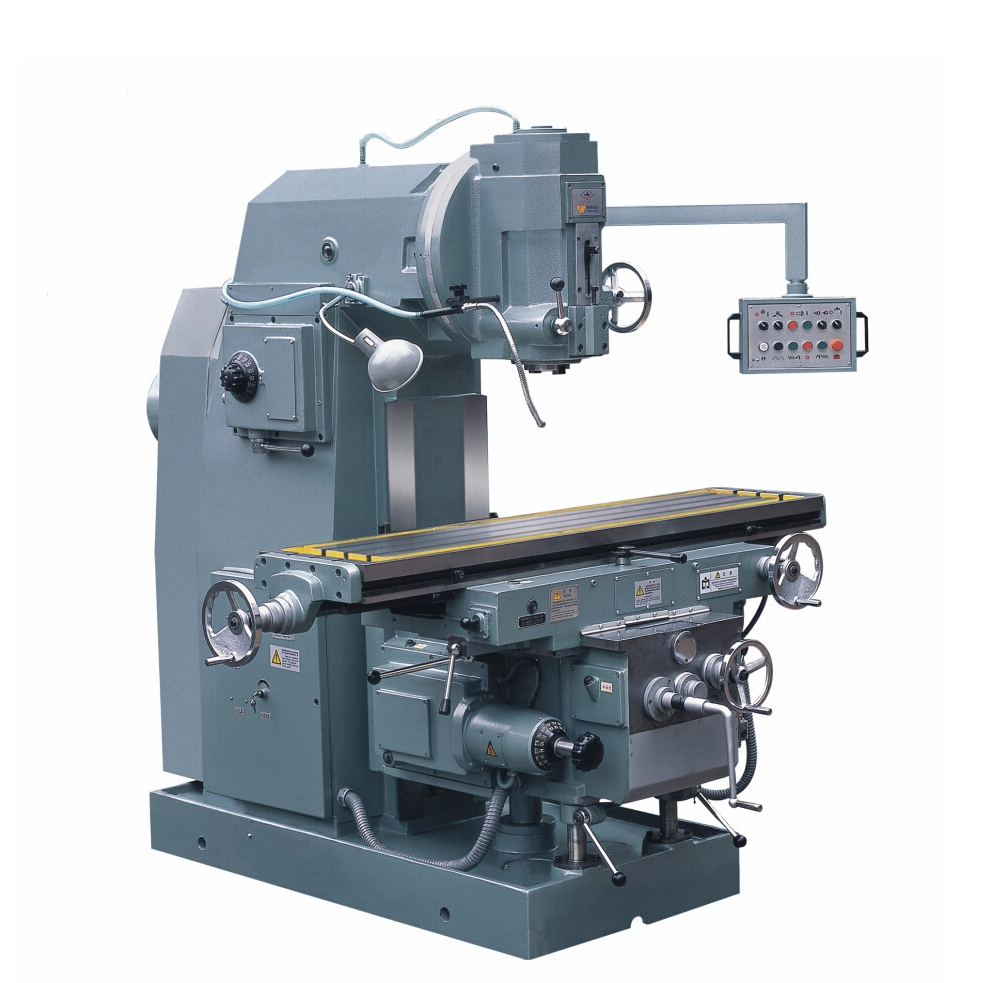

X5042 VERTICAL MILLING MACHINE

Quantity:
  • X5042

Product Overview

☆X5042 vertical knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.

Machine Characteristics

Vertical milling head can rotate ±45°. Spindle quill can move vertically. Worktable is applied to automatic and rapid feed.

Hardened and ground slide ways ensure high accuracy.

With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.

With gear transmission in machine body and lifting platform, the machine is rigid enough to bear heavy duty processing.

Complete coolant and lubrication system.

DRO equipment is optional.


Machine Parameter

CODE

ITEM


DETAILS

1

WORKTABLE(WIDTH×LENGTH)

mm

420×1800

2

T SLOTS

mm

3×18

3

DISTANCE BETWEEN T SLOTS

mm

90

4

MAX.LOAD BEARING OF WORKTABLE

kg

800

TRAVEL

5

X AXIS (MANUAL/POWER)

mm

1200/1180

6

Y AXIS (MANUAL/POWER)

mm

360/350

7

Z AXIS (MANUAL/POWER)

mm

470/450

SPINDLE

8

MAX. ROTARY ANGLE OF VERTICAL MILLING HEAD

±45°

9

SPINDLE HOLE TAPER

7:24, NO:50

10

SPINDLE SPEED STEPS

18

11

SPINDLE SPEED RANGE

r/min

30-1500

12

ARBOR DIAMETER

mm

φ32  φ50

13

SPINDLE QUILL TRAVEL

mm

85

FEED

14

FEED SPEED STEPS

18

15

FEED SPEED RANGE:LONGITUDINAL X

mm/min

22-1100

16

FEED SPEED RANGE:CROSS Y

mm/min

22-1100

17

FEED SPEED RANGE:VERTICAL Z

mm/min

8.3-410

18

RAPID FEED RANGE:LONGITUDINAL X

mm/min

2400

19

RAPID FEED RANGE:CROSS Y

mm/min

2400

20

RAPID FEED RANGE:VERTICAL Z

mm/min

900

POWER SOURCE

21

MAIN MOTOR POWER

kw

11

22

FEED MOTOR POWER

kw

3

23

VOLTAGE/FREQUENCY(ACCORDING TO YOUR REQUIREMENT)

V/hz

380/50

OTHERS

24

DISTANCE FROM SPINDLE CENTER TO VERTICAL GUIDE WAY

    mm

450

25

DISTANCE FROM TABLE CENTER TO VERTICAL GUIDE WAY

mm

275-655

26

DISTANCE FROM SPINDLE NOSE TO WORKTABLE SURFACE

mm

40-510

27

MACHINE DIMENSION

mm

2522×2265×2432

28

PACKAGE DIMENSION

    mm

2470×2400×2720

29

MACHINE WEIGHT

kg

4700
