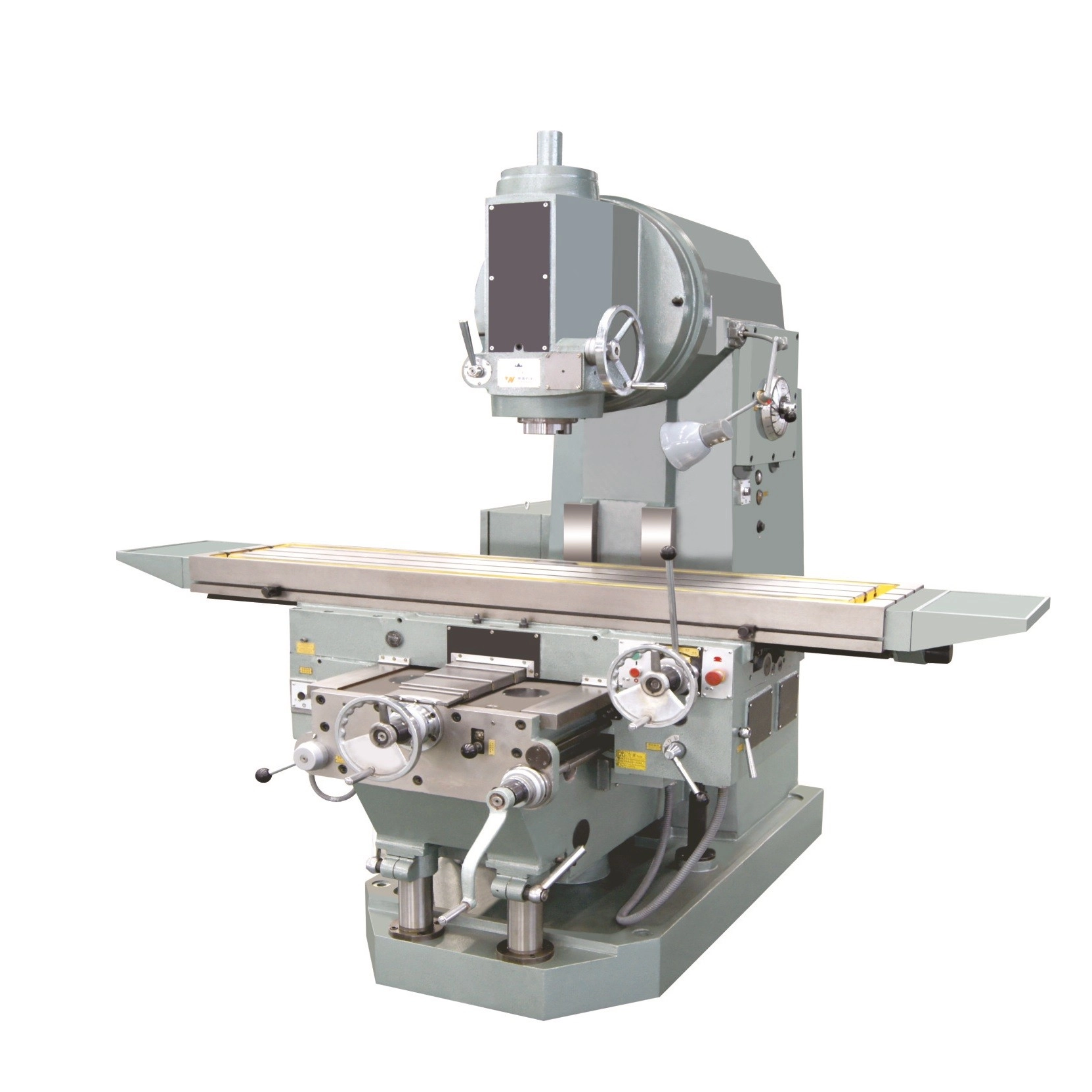

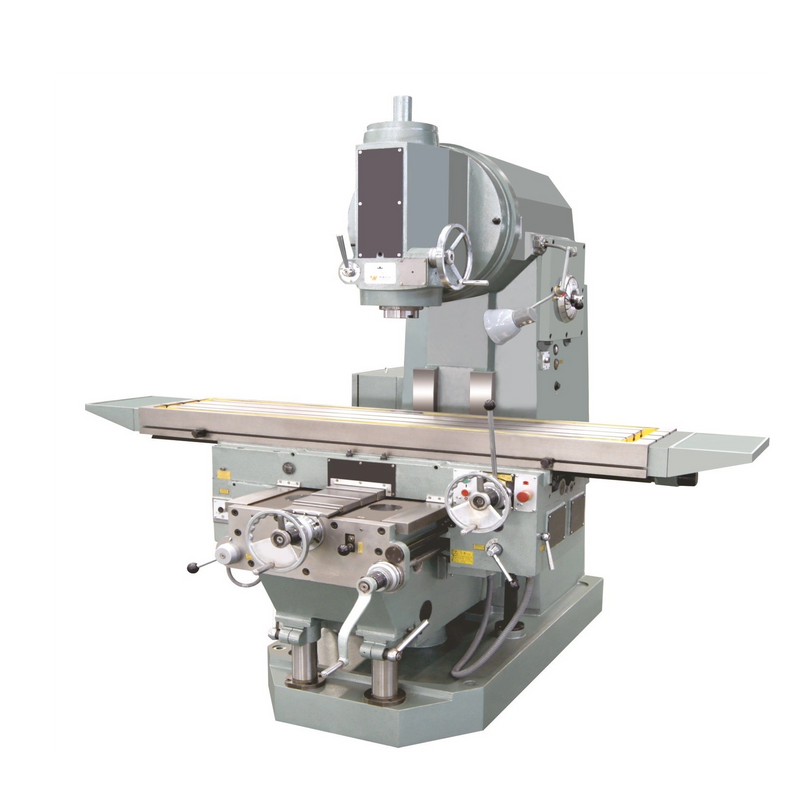

X5042B VERTICAL MILLING MACHINE
Quantity: -
X5042B
♥Product Overview
☆Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.
♥Machine Characteristics
☆”T type” lead screw in three axis ensure convenient operation, reliable performance, and higher processing accuracy.
☆The movement direction is changed through mechanical clutch. Inside the feed gear box, mechanical clutch instead of magnetic clutch to protect machine parts and electric components and prolong lifetime.
☆Complete coolant and lubrication system.
☆DRO equipment is optional.
♥Machine Parameter
CODE
ITEM
DETAILS
1
WORKTABLE（WIDTH×LENGTH）
mm
428×2000
2
T SLOTS
mm
3×18
3
DISTANCE BETWEEN T SLOTS
mm
100
4
MAX.LOAD BEARING OF WORKTABLE
kg
800
TRAVEL
5
X AXIS (MANUAL/POWER)
mm
1250/1230
6
Y AXIS (MANUAL/POWER)
mm
420/350
7
Z AXIS (MANUAL/POWER)
mm
470/450
SPINDLE
8
MAX. ROTARY ANGLE OF VERTICAL MILLING HEAD
±45°
9
SPINDLE HOLE TAPER
7:24, NO:50
10
SPINDLE SPEED STEPS
20
11
SPINDLE SPEED RANGE
r/min
18-1400
12
DIAMETER OF FRONT BEARING
mm
Φ100
13
SPINDLE QUILL TRAVEL
mm
90
FEED
14
FEED SPEED STEPS
15
15
FEED SPEED RANGE:LONGITUDINAL X
mm/min
10-1250
16
FEED SPEED RANGE:CROSS Y
mm/min
10-1250
17
FEED SPEED RANGE:VERTICAL Z
mm/min
2.5-315
18
RAPID FEED RANGE:LONGITUDINAL X
mm/min
3200
19
RAPID FEED RANGE:CROSS Y
mm/min
3200
20
RAPID FEED RANGE:VERTICAL Z
mm/min
800
POWER SOURCE
21
MAIN MOTOR POWER
kw
11
22
FEED MOTOR POWER
kw
3
23
VOLTAGE/FREQUENCY(ACCORDING TO YOUR REQUIREMENT)
V/hz
380/50
OTHERS
24
DISTANCE FROM SPINDLE NOSE TO WORKTABLE SURFACE
mm
40-520
25
MACHINE DIMENSION
mm
2600×2470×2450
26
MACHINE WEIGHT
kg
5800
