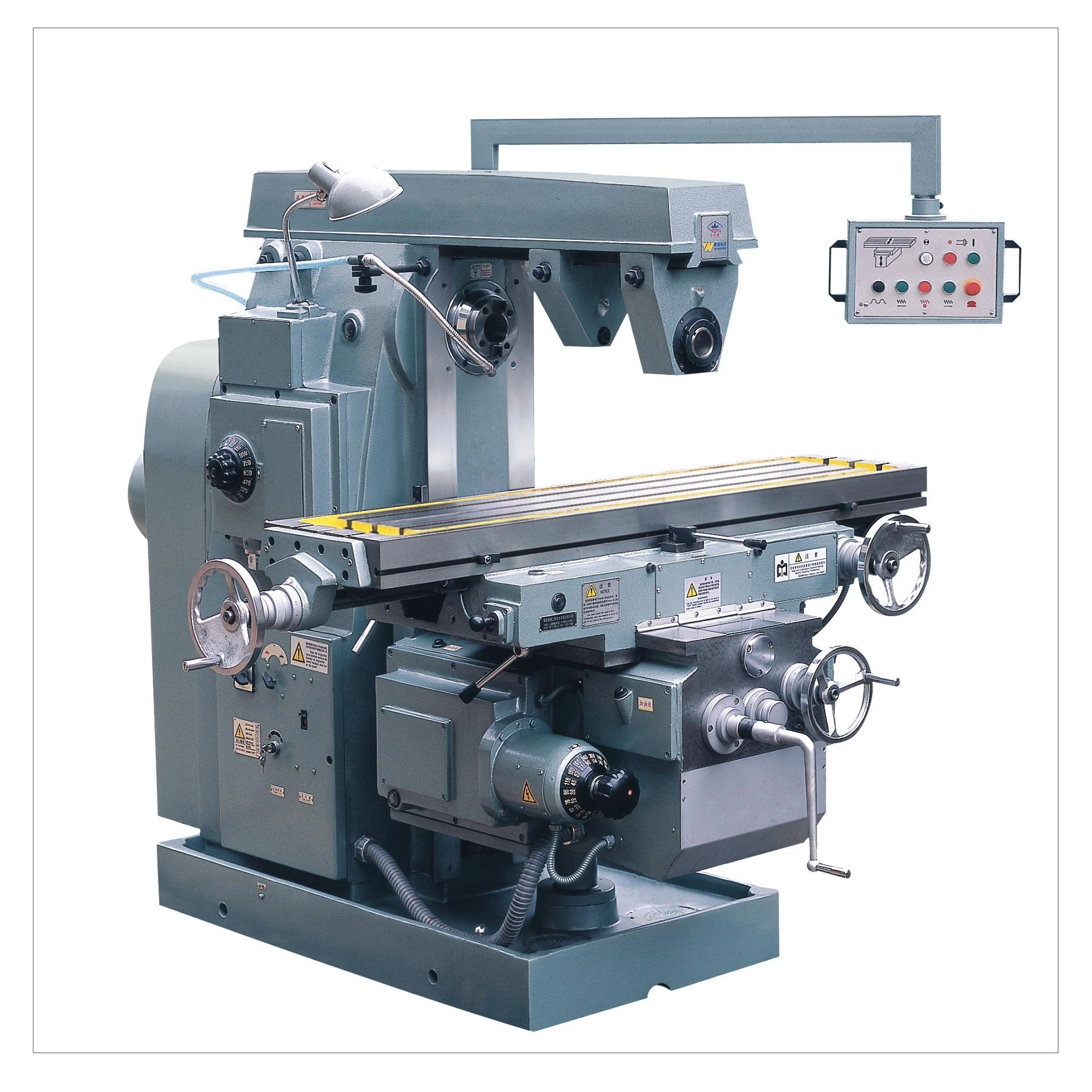

X6036 HORIZONTAL MILLING MACHINE
Quantity: -
X6036
♥Product Overview
☆X6036 horizontal knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as vertical milling head and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.
♥Machine Characteristics
☆The worktable apply to automatic and rapid feed.
☆Hardened and ground slide ways ensure high accuracy.
☆With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.
☆With gear transmission in machine body and lifting platform, the machine is rigid enough to bear heavy duty processing.
☆Complete coolant and lubrication system.
☆DRO equipment is optional.
♥Machine Parameter
CODE
ITEM
DETAILS
1
WORKTABLE（WIDTH×LENGTH）
mm
360×1600
2
T SLOTS
mm
3×18
3
DISTANCE BETWEEN T SLOTS
mm
80
4
MAX.LOAD BEARING OF WORKTABLE
kg
500
TRAVEL
5
X AXIS (MANUAL/POWER)
mm
1020/1000
6
Y AXIS (MANUAL/POWER)
mm
300/280
7
Z AXIS (MANUAL/POWER)
mm
410/400
SPINDLE
8
SPINDLE HOLE TAPER
7:24, NO:50
9
SPINDLE SPEED STEPS
18
10
SPINDLE SPEED RANGE
r/min
30-1500
11
ARBOR DIAMETER
mm
Φ22 φ27 φ32
FEED
12
FEED SPEED STEPS
18
13
FEED SPEED RANGE:LONGITUDINAL X
mm/min
15-750
14
FEED SPEED RANGE:CROSS Y
mm/min
15-750
15
FEED SPEED RANGE:VERTICAL Z
mm/min
5.7-280
16
RAPID FEED RANGE:LONGITUDINAL X
mm/min
2250
17
RAPID FEED RANGE:CROSS Y
mm/min
2250
18
RAPID FEED RANGE:VERTICAL Z
mm/min
844
POWER SOURCE
19
MAIN MOTOR POWER
kw
7.5
20
FEED MOTOR POWER
kw
1.5
21
VOLTAGE/FREQUENCY(ACCORDING TO YOUR REQUIREMENT)
V/hz
380/50
OTHERS
23
DISTANCE FROM SPINDLE CENTER TO ARM
mm
155
24
DISTANCE FROM TABLE CENTER TO VERTICAL GUIDE WAY
mm
235-535
25
DISTANCE FROM SPINDLE CENTER TO WORKTABLE SURFACE
mm
50-460
26
MACHINE DIMENSION
mm
2327×2067×1720
27
PACKAGE DIMENSION
mm
2220×2180×2200
28
MACHINE WEIGHT
kg
3200
