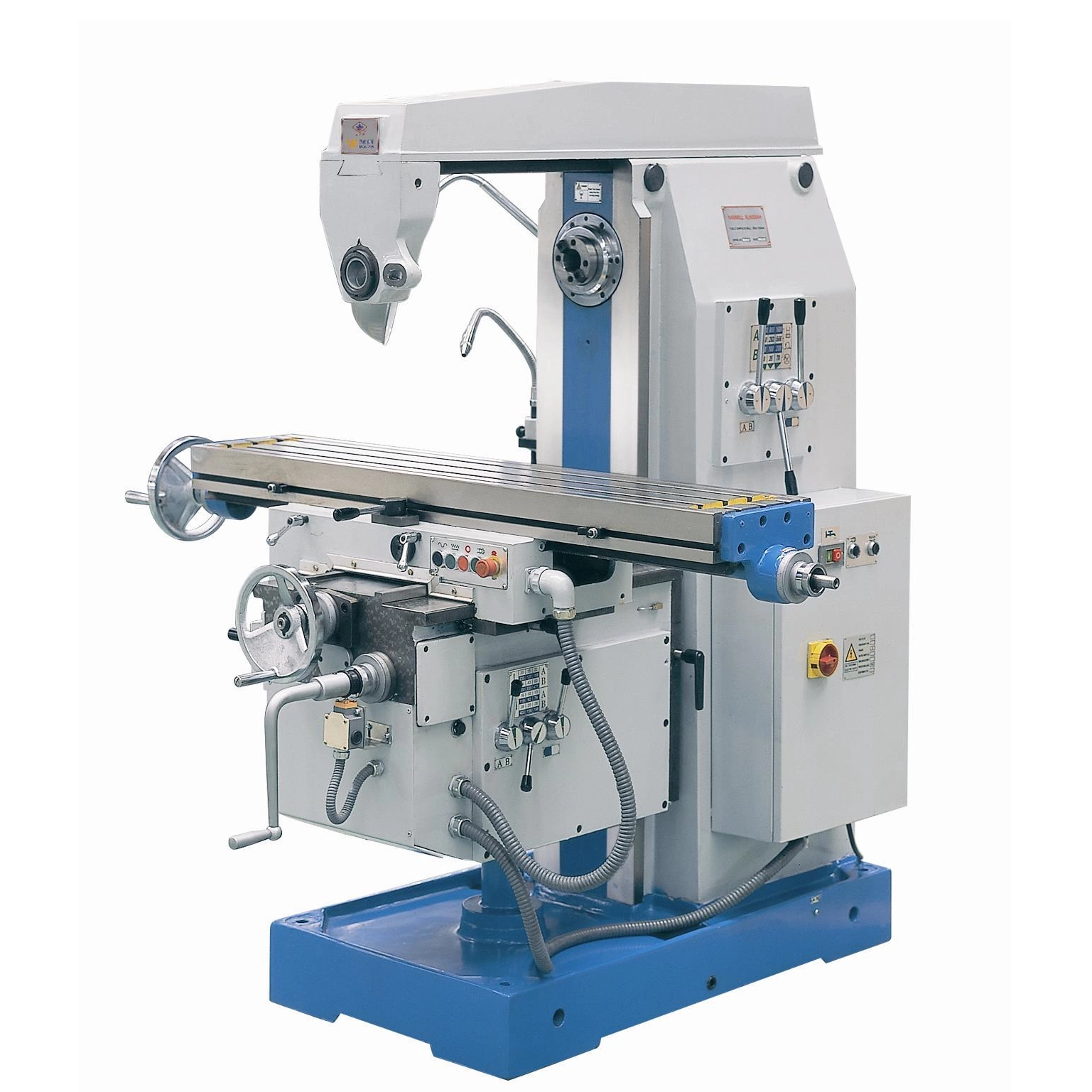

X6130C UNIVERSAL KNEE-TYPE MILLING MACHINE

Availability:
Quantity:
  • X6130C

♥Product Overview

☆X6130C universal knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as vertical milling head and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.

♥Machine Characteristics

The worktable can rotate ±45°and apply to automatic and rapid feed.

Hardened and ground slide ways ensure high accuracy.

With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.

With gear transmission in machine body and lifting platform, the machine is rigid enough to bear heavy duty processing.

Complete coolant and lubrication system.

DRO equipment is optional.


♥Machine Parameter

CODE

ITEM


DETAILS

1

WORKTABLEWIDTH×LENGTH

mm

300×1250

2

T SLOTS

mm

3×14

3

DISTANCE BETWEEN T SLOTS

mm

63

4

MAX.LOAD BEARING OF WORKTABLE

kg

250

TRAVEL

5

LONGITUDINAL TRAVEL X

mm

800

6

CROSS TRAVEL Y

mm

235

7

VERTICAL TRAVEL Z

mm

440

SPINDLE

8

SPINDLE HOLE TAPER

7:24, NO:40

9

SPINDLE SPEED STEPS

12

10

SPINDLE SPEED RANGE

r/min

35-1600

11

ARBOR DIAMETER

mm

Φ22 φ27

FEED

12

FEED SPEED STEPS

12

13

FEED SPEED RANGE:LONGITUDINAL X

mm/min

15-800

14

FEED SPEED RANGE:CROSS Y

mm/min

15-800

15

FEED SPEED RANGE:VERTICAL Z

mm/min

6-270

16

RAPID FEED RANGE:LONGITUDINAL X

mm/min

2100

17

RAPID FEED RANGE:CROSS Y

mm/min

2100

18

RAPID FEED RANGE:VERTICAL Z

mm/min

880

POWER SOURCE

19

MAIN MOTOR POWER

kw

4

20

FEED MOTOR POWER

kw

0.75

21

VOLTAGE/FREQUENCY(ACCORDING TO YOUR REQUIREMENT)

V/hz

380/50

OTHERS

23

DISTANCE FROM SPINDLE CENTER TO ARM

    mm

162

24

DISTANCE FROM SPINDLE NOSE TO WORKTABLE SURFACE

mm

30-470

25

MACHINE DIMENSION

mm

1650×1540×1720

26

PACKAGE DIMENSION

   mm

1800×1560×2220

27

MACHINE WEIGHT

kg

1800
