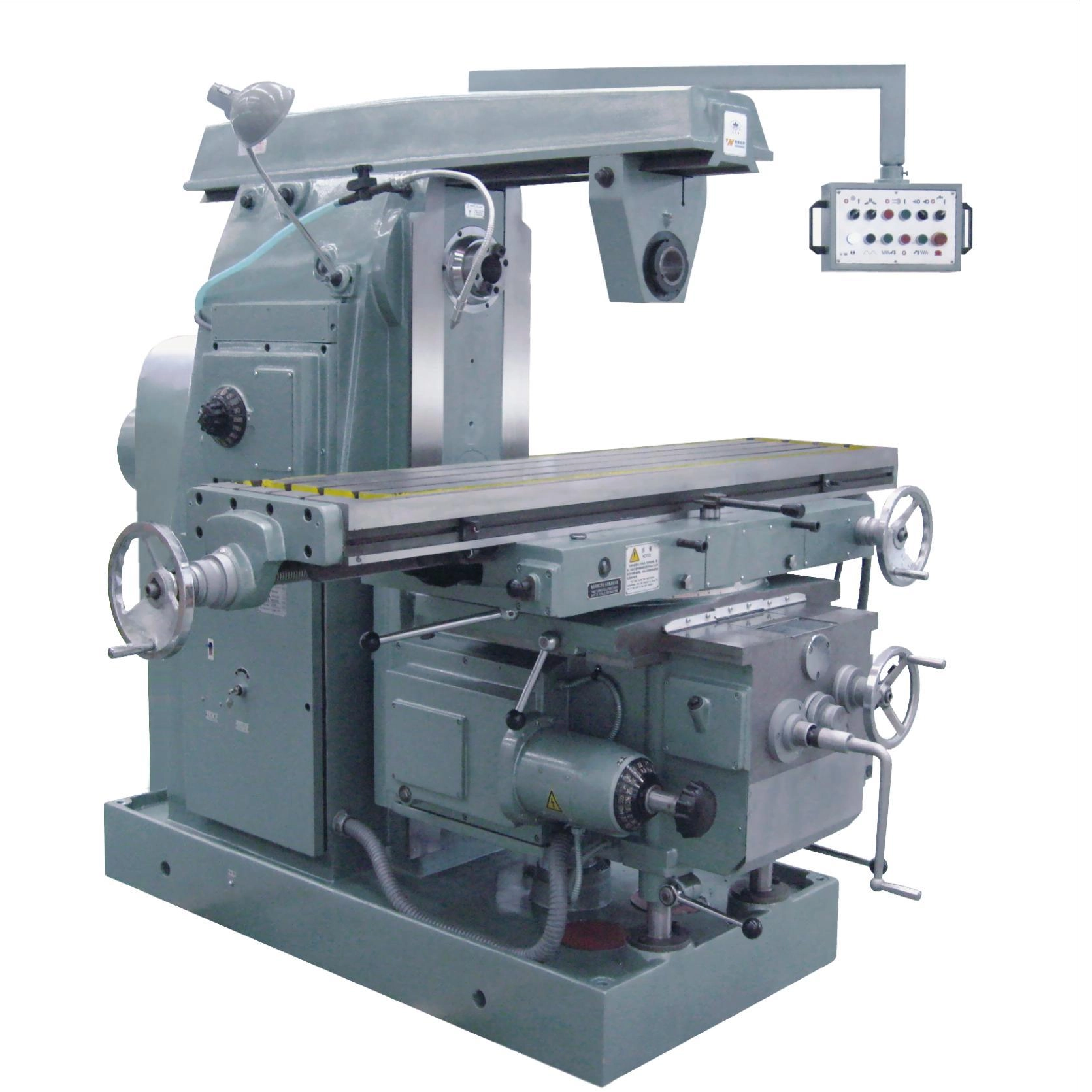

X6142 UNIVERSAL KNEE-TYPE MILLING MACHINE
Quantity: -
X6142
♥Product Overview
☆Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as vertical milling head and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.
♥Machine Characteristics
☆The worktable can rotate ±45°and apply to automatic and rapid feed.
☆Hardened and ground slide ways ensure high accuracy.
☆With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.
☆With gear transmission in machine body and lifting platform, the machine is rigid enough to bear heavy duty processing.
☆Complete coolant and lubrication system.
☆DRO equipment is optional.
♥Machine Parameter
CODE
ITEM
DETAILS
1
WORKTABLE（WIDTH×LENGTH）
mm
420×1800
2
T SLOTS
mm
3×18
3
DISTANCE BETWEEN T SLOTS
mm
90
4
MAX.LOAD BEARING OF WORKTABLE
kg
800
TRAVEL
5
X AXIS (MANUAL/POWER)
mm
1200/1180
6
Y AXIS (MANUAL/POWER)
mm
360/350
7
Z AXIS (MANUAL/POWER)
mm
470/450
SPINDLE
8
SPINDLE HOLE TAPER
7:24, NO:50
9
SPINDLE SPEED STEPS
18
10
SPINDLE SPEED RANGE
r/min
30-1500
11
ARBOR DIAMETER
mm
φ32 φ50
FEED
12
FEED SPEED STEPS
18
13
FEED SPEED RANGE:LONGITUDINAL X
mm/min
22-1100
14
FEED SPEED RANGE:CROSS Y
mm/min
22-1100
15
FEED SPEED RANGE:VERTICAL Z
mm/min
8.3-410
16
RAPID FEED RANGE:LONGITUDINAL X
mm/min
2400
17
RAPID FEED RANGE:CROSS Y
mm/min
2400
18
RAPID FEED RANGE:VERTICAL Z
mm/min
900
POWER SOURCE
19
MAIN MOTOR POWER
kw
11
20
FEED MOTOR POWER
kw
3
21
VOLTAGE/FREQUENCY(ACCORDING TO YOUR REQUIREMENT)
V/hz
380/50
OTHERS
22
MAX. ROTARY ANGLE OF TABLE
±45°
23
DISTANCE FROM SPINDLE CENTER TO ARM
mm
200
24
DISTANCE FROM TABLE CENTER TO VERTICAL GUIDE WAY
mm
280-650
25
DISTANCE FROM SPINDLE CENTER TO WORKTABLE SURFACE
mm
30-500
26
MACHINE DIMENSION
mm
2522×2262×2047
27
PACKAGE DIMENSION
mm
2470×2400×2530
28
MACHINE WEIGHT
kg
4500
