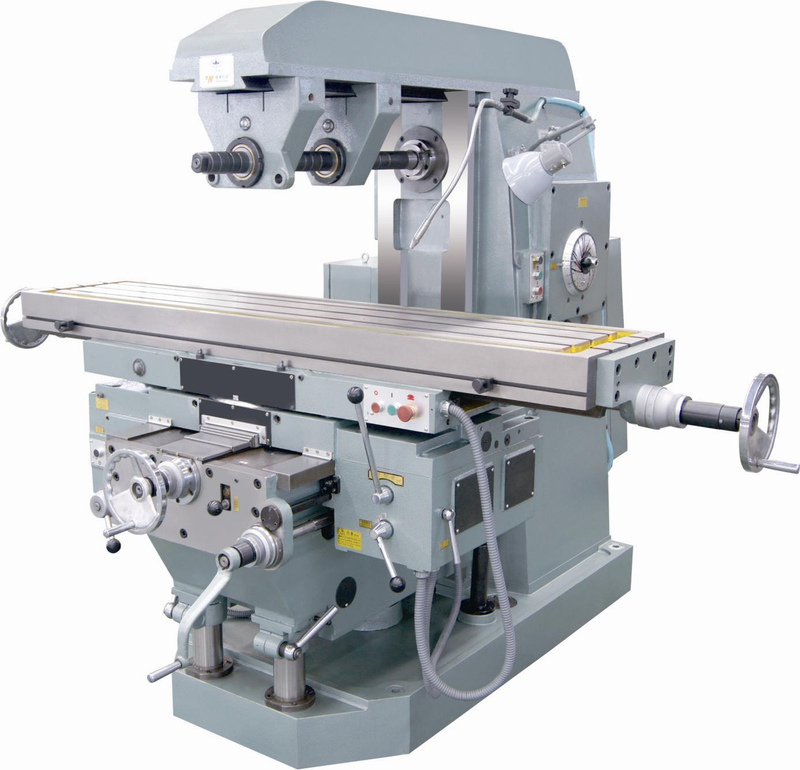

♥Product Overview
☆Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as vertical milling head and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.
♥Machine Characteristics
☆”T type” lead screw in three axis ensure convenient operation, reliable performance, and higher processing accuracy.
☆The movement direction is changed through mechanical clutch. Inside the feed gear box, mechanical clutch instead of magnetic clutch to protect machine parts and electric components and prolong lifetime.
☆Complete coolant and lubrication system.
☆DRO equipment is optional.
♥Machine Parameter
CODE | ITEM | DETAILS | |
1 | WORKTABLE（WIDTH×LENGTH） | mm | 428×2000 |
2 | T SLOTS | mm | 3×18 |
3 | DISTANCE BETWEEN T SLOTS | mm | 100 |
4 | MAX.LOAD BEARING OF WORKTABLE | kg | 800 |
TRAVEL | |||
5 | X AXIS (MANUAL/POWER) | mm | 1220/1200 |
6 | Y AXIS (MANUAL/POWER) | mm | 420/410 |
7 | Z AXIS (MANUAL/POWER) | mm | 480/470 |
SPINDLE | |||
8 | SPINDLE HOLE TAPER | 7:24, NO:50 | |
9 | SPINDLE SPEED STEPS | 20 | |
10 | SPINDLE SPEED RANGE | r/min | 18-1400 |
11 | DIAMETER OF SPINDLE FRONT BEARING | mm | Φ100 |
FEED | |||
12 | FEED SPEED STEPS | 15 | |
13 | FEED SPEED RANGE:LONGITUDINAL X | mm/min | 10-1250 |
14 | FEED SPEED RANGE:CROSS Y | mm/min | 10-1250 |
15 | FEED SPEED RANGE:VERTICAL Z | mm/min | 2.5-315 |
16 | RAPID FEED RANGE:LONGITUDINAL X | mm/min | 3200 |
17 | RAPID FEED RANGE:CROSS Y | mm/min | 3200 |
18 | RAPID FEED RANGE:VERTICAL Z | mm/min | 800 |
POWER SOURCE | |||
19 | MAIN MOTOR POWER | kw | 11 |
20 | FEED MOTOR POWER | kw | 3 |
21 | VOLTAGE/FREQUENCY(ACCORDING TO YOUR REQUIREMENT) | V/hz | 380/50 |
OTHERS | |||
22 | MAX. ROTARY ANGLE OF TABLE | ±45° | |
23 | DISTANCE FROM SPINDLE CENTER TO WORKTABLE SURFACE | mm | 20-500 |
24 | DISTANCE FROM SPINDLE CENTER TO ARM | mm | 182 |
25 | MACHINE DIMENSION | mm | 2800×2415×2055 |
26 | MACHINE WEIGHT | kg | 5650 |
