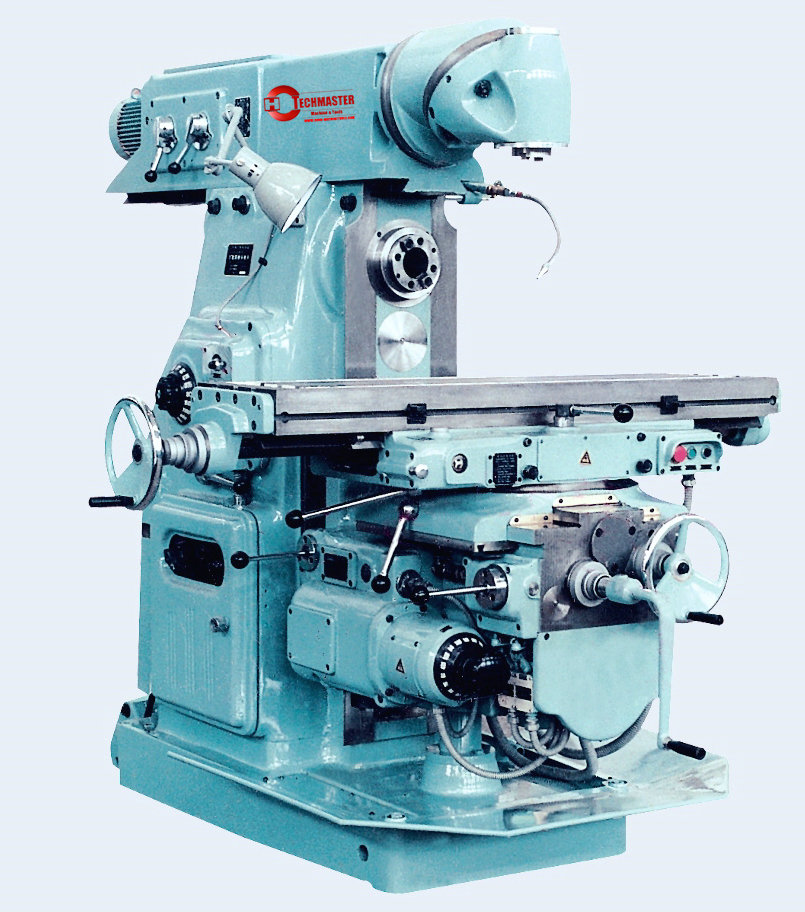

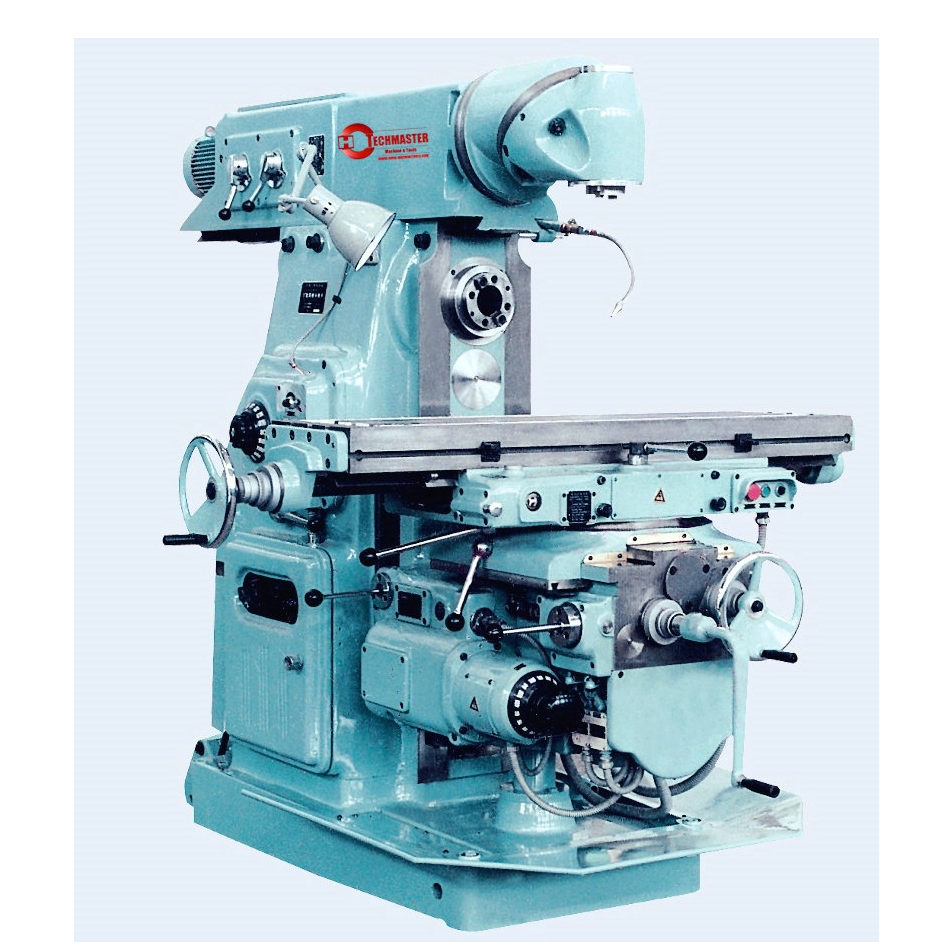

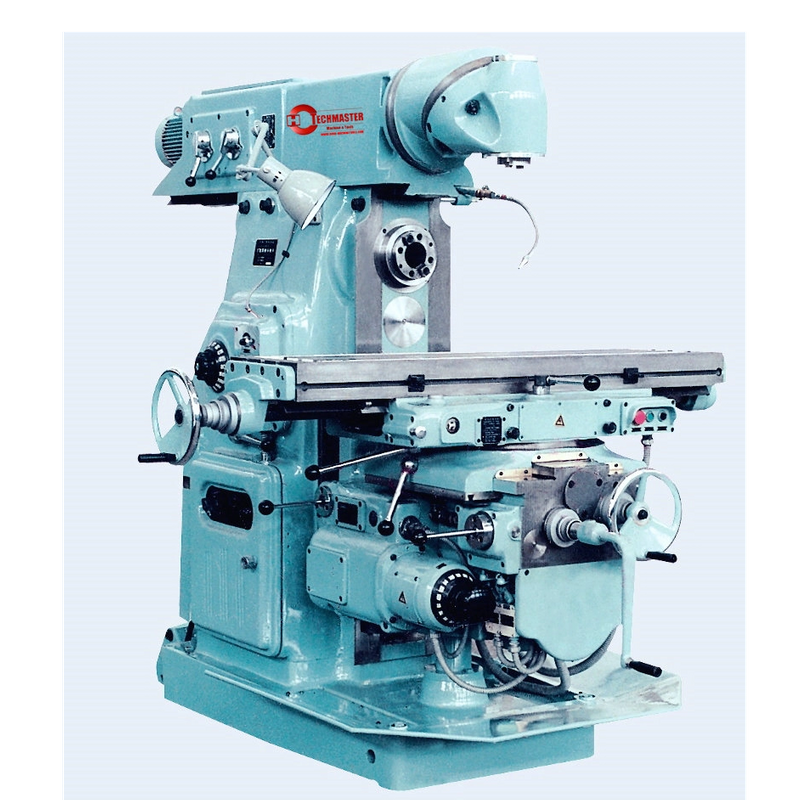

X6232C

Quantity:
The Universal Knee-type milling machine is widely used in the machining workshop, with optional accessories as dividing head, rotary table, machine vice, transmission box, boring and facing milling head ,milling chuck ,etc. its machining scope/capacity greatly enlarged. X6232C/1: Digital readout(2 dimensional or 3 dimensional) is added to X6232C machine which can improve the machining accuracy and producing efficiency. X6232X16: The same as X6232C, except that the Table length Extended to 1600mm. Universal head can rotate 270, have 45 degree rotary surface


Product Name: Universal Rotary Head Milling Machine
Product Type: X6232C X6232C/1 X6232CX16
work table area(width*length): 320*1320mm 320*1600mm
T-slots(number of slot-width*pitch) slot-width*pitch): 3-18*70mm 3-18*70mm
Max weight of workpiece: 500Kg 500Kg
Table swivel angle: ±45° ±45°
Max.stroke longitudinal/transversal/ vertical(power): 680/240/300mm 780/240/300mm
Max.stroke longitudinal/transversal/vertical (manual): 700/255/320mm 800/255/320mm
Distance from center line of horizontal spindle to table surface: 30-350mm 30-350mm
Distance from vertical spindle nose to table surface: 250-570mm 250-570mm
Vertical milling head max. swivel angle: 360° 360°
spindle motor power (horizontal/vertical spindle): 5.5/3Kw 5.5/3Kw
Spindle taper (horizontal/vertical spindle): ISO(50/40)/XT(50/40) ISO(50/40)/XT(50/40)
Spindle speed range (horizontal/vertical spindle): 18 steps 30-1500/9 steps 125-2000r/min 18 steps 30-1500/9 steps 125-2000r/min



Model
X6232C
X6232Cx16
Table area(W x L)(mm)
320x1320
320x1320
T-slots(No.-width x pitch) (mm)
3-18x17
3-18x17
Table Travel(manual)X/Y/Z(mm)
700/255/320
700/255/320
Table travel(power)X/Y/Z(mm)
680/240/300
780/240/300
Table swivel degree
45°
45°
Vertical milling head swivel degree
360°
360°
Max weight of workpiece(kg)
500
500
Spindle motor power(H/V head)(kw)
5.5/3
5.5/3
Spindle taper(H/V head)
7:24 50#/40#
7:24 50#/40#
Spindle speed range(H/V head)(r/min)
18
30-1500/125-2000
18
30-1500/125-2000
Feed speed(X/Y/Z)(mm/min)
18
23.5-1180
23.5-1180/8-394
18
23.5-1180
23.5-1180/8-394
Rapid speed(X/Y/Z)(mm/min)
2300/2300/770
2300/2300/770
Distance from center line of horizontal spindle to table surface (mm)
30-350
30-350
Distance from vertical spindle nose to table surface(mm)
250-570
250-570
Feed motor power(kw)
1.5
1.5
DRO resoluction(DRO milling machine only(mm)
0.05

Machine dimensions(L x W x H) (mm)
2294x1770x1858
2294x2045x1858
Weight of machine(kg)
3000
3000
