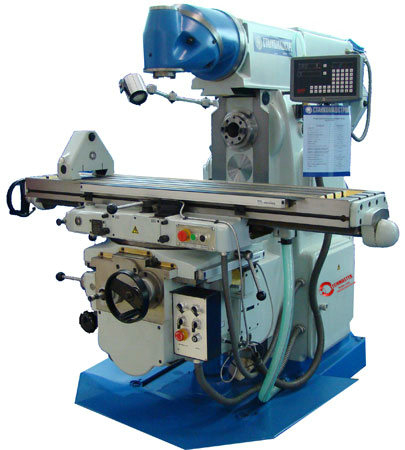

Universal Rotary Head Milling Machine X6232C,X6232C/1,X6232CX16
Universal head can rotate 270, have 45 degree rotary surface
Universal Rotary Head Milling Machine X6232C, X6232C/1,X6232CX16
The Universal Knee-type milling machine is widely used in the machining workshop, with optional accessories as dividing head, rotary table, machine vice, transmission box, boring and facing milling head ,milling chuck ,etc. its machining scope/capacity greatly enlarged. X6232C/1: Digital readout(2 dimensional or 3 dimensional) is added to X6232C machine which can improve the machining accuracy and producing efficiency. X6232X16: The same as X6232C, except that the Table length Extended to 1600mm
Product Name: | Universal Rotary Head Milling Machine | |
Product Type: | X6232C X6232C/1 | X6232CX16 |
work table area(width*length): | 320*1320mm | 320*1320mm |
T-slots(number of slot-width*pitch) slot-width*pitch): | 3-18*70mm | 3-18*70mm |
Max weight of workpiece: | 500Kg | 500Kg |
Table swivel angle: | ±45° | ±45° |
Max.stroke longitudinal/transversal/ vertical(power): | 680/240/300mm | 780/240/300mm |
Max.stroke longitudinal/transversal/vertical (manual): | 700/255/320mm | 800/255/320mm |
Distance from center line of horizontal spindle to table surface: | 30-350mm | 30-350mm |
Distance from vertical spindle nose to table surface: | 250-570mm | 250-570mm |
Vertical milling head max. swivel angle: | 360° | 360° |
spindle motor power (horizontal/vertical spindle): | 5.5/3Kw | 5.5/3Kw |
Spindle taper (horizontal/vertical spindle): | ISO(50/40)/XT(50/40) | ISO(50/40)/XT(50/40) |
Spindle speed range (horizontal/vertical spindle): | 18 steps 30-1500/9 steps 125-2000r/min | 18 steps 30-1500/9 steps 125-2000r/min |

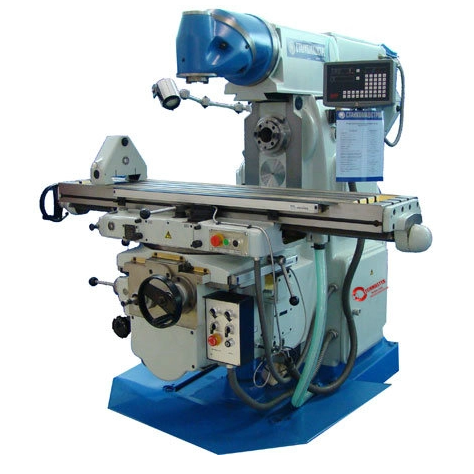

Universal Rotary Head Milling Machine X6232C,X6232C/1,X6232CX16
