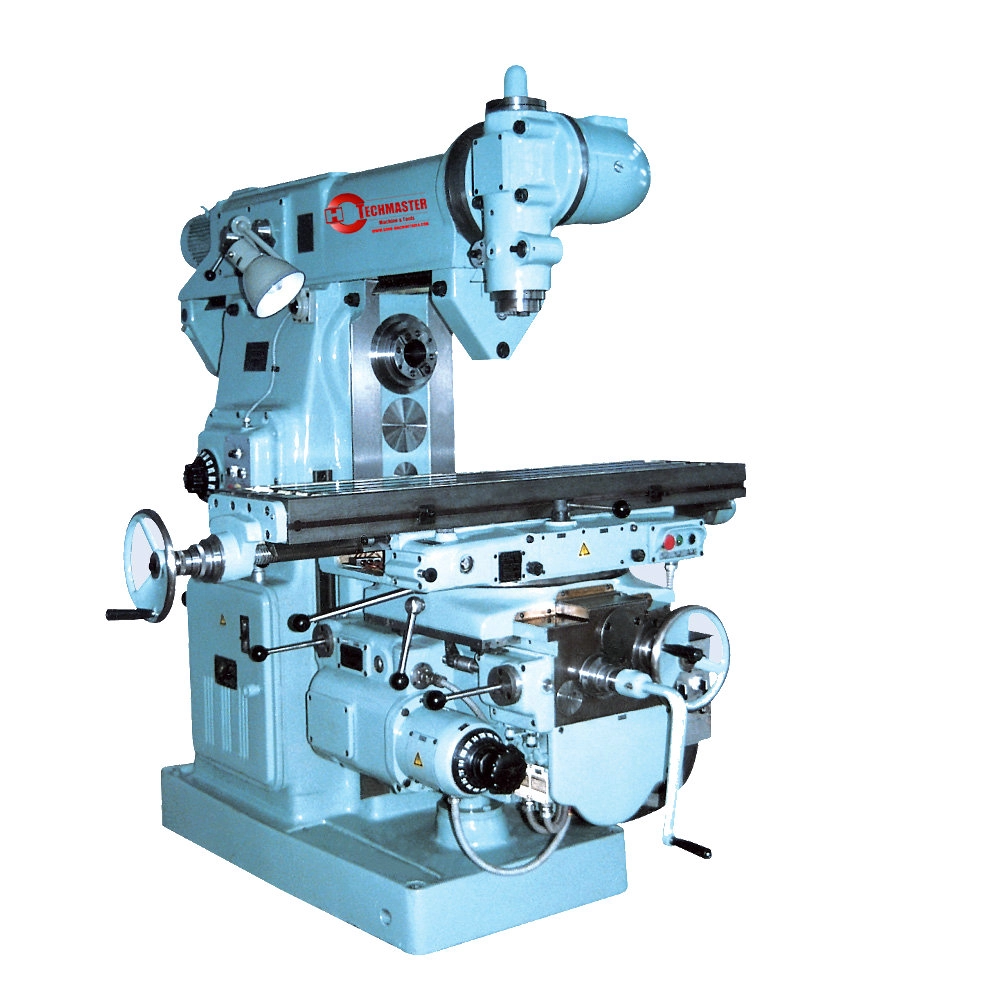

X6232X16
Quantity: The Universal Knee-type milling machine is widely used in the machining workshop, with optional accessories as dividing head, rotary table, machine vice, transmission box, boring and facing milling head ,milling chuck ,etc. its machining scope/capacity greatly enlarged. X6232B/1: Digital readout(2 dimensional or 3 dimensional) is added to X6232C machine which can improve the machining accuracy and producing efficiency. X6232X16: The same as X6232B, except that the Table length Extended to 1600mm. Universal head can rotate 270, have 45 degree rotary surface
Product Name: Universal Rotary Head Milling Machine Product Type: X6232B X6232B/1 X6232X16 work table area(width*length): 320*1320mm 320*1600mm T-slots(number of slot-width*pitch) slot-width*pitch): 3-18*70mm 3-18*70mm Max weight of workpiece: 500Kg 500Kg Table swivel angle: ±45° ±45° Max.stroke longitudinal/transversal/ vertical(power): 680/240/300mm 780/240/300mm Max.stroke longitudinal/transversal/vertical (manual): 700/255/320mm 800/255/320mm Distance from center line of horizontal spindle to table surface: 30-350mm 30-350mm Distance from vertical spindle nose to table surface: 250-570mm 250-570mm Vertical milling head max. swivel angle: 360° 360° spindle motor power (horizontal/vertical spindle): 5.5/3Kw 5.5/3Kw Spindle taper (horizontal/vertical spindle): ISO(50/40)/XT(50/40) ISO(50/40)/XT(50/40) Spindle speed range (horizontal/vertical spindle): 18 steps 30-1500/9 steps 90-1400r/min 18 steps 30-1500/9 steps 90-1400r/min
