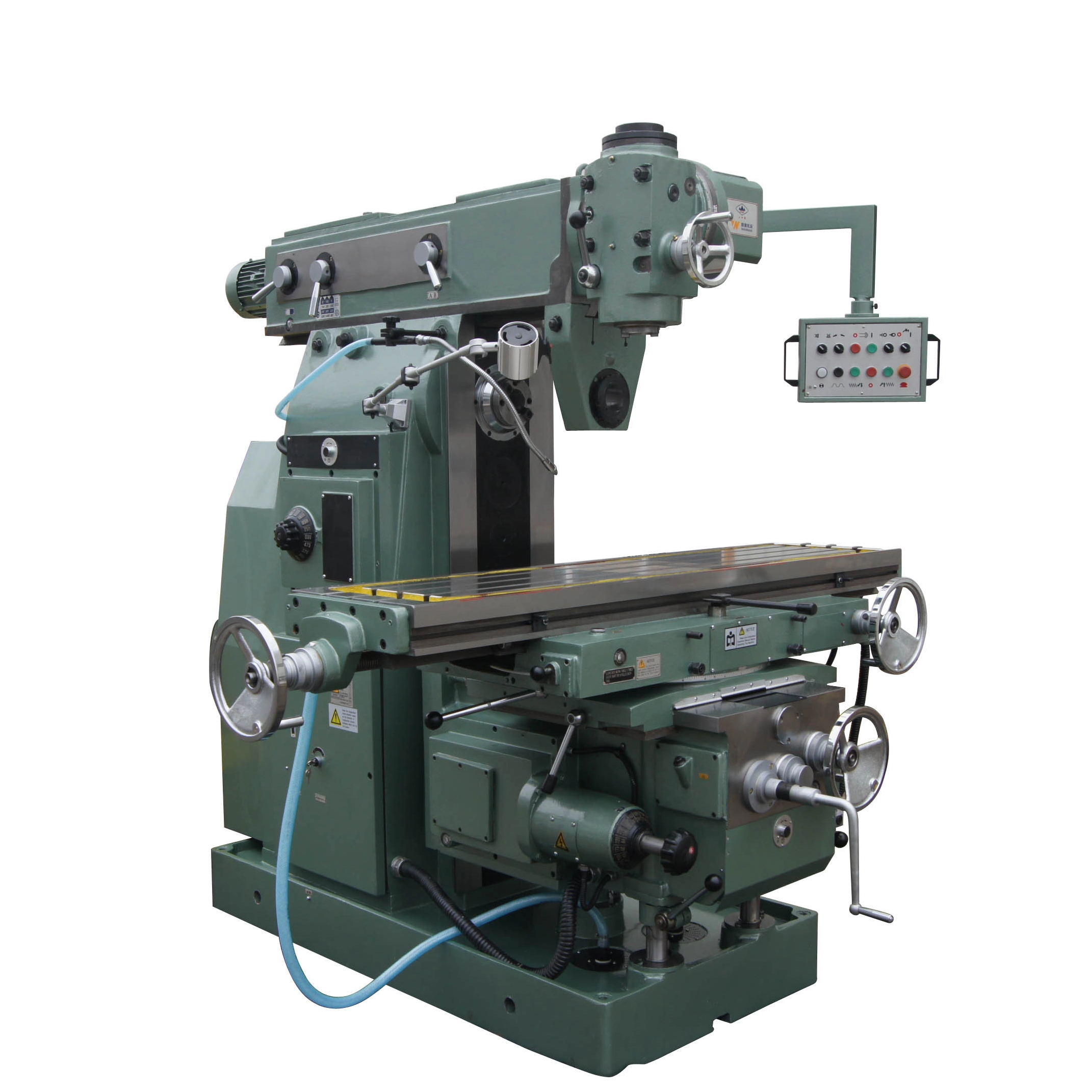

X6242 UNIVERSAL TURRET HEAD MILLING MACHINE
Quantity: -
X6242
♥Product Overview
☆X6242 universal turret head milling machine install one turret head on X6142 universal knee-type milling machine. The flexible turret head sleeve to match up direction movement, also it can be used for milling bevel, drilling, reaming or fine boring and processing inclined shallow hole.
♥Machine Characteristics
☆Mounted with different face milling cutter, cylindrical milling cutter, side milling cutter, angle milling cutter and formed milling cutter, drill, boring cutter, the machine is suitable to process flat, inclined surface, slots, arbitrary angle hole, gear and miscellaneous work pieces.
☆Equipped with optional accessories, such as dividing head and rotary table, machine can be applicable to versatile processing.
☆The movement direction is changed through mechanical clutch. Inside the feed gear box, mechanical clutch instead of magnetic clutch to protect machine parts and electric components and prolong lifetime.
☆Complete coolant and lubrication system.
☆DRO equipment is optional.
♥Machine Parameter
CODE
ITEM
DETAILS
1
WORKTABLE（WIDTH×LENGTH）
mm
420×1800
2
T SLOTS
mm
3×18
3
DISTANCE BETWEEN T SLOTS
mm
90
4
MAX.LOAD BEARING OF WORKTABLE
kg
800
TRAVEL
5
X AXIS (MANUAL/POWER)
mm
1200/1180
6
Y AXIS (MANUAL/POWER)
mm
360/3500
7
Z AXIS (MANUAL/POWER)
mm
470/450
SPINDLE
8
VERTICAL SPINDLE HOLE TAPER
7:24, ISO40#
9
HORIZONTAL SPINDLE HOLE TAPER
7:24, ISO50#
10
VERTICAL SPINDLE HOLE DIAMETER
Φ20
11
HORIZONTAL SPINDLE HOLE DIAMETER
Φ29
12
VERTICAL SPINDLE FRONT BEARING DIAMETER
Φ95
13
HORIZONTAL SPINDLE FRONT BEARING DIAMETER
Φ100
14
VERTICAL SPINDLE SPEED STEPS
12
15
VERTICAL SPINDLE SPEED RANGE
r/min
52-1400
16
HORIZONTAL SPINDLE SPPED STEPS
18
17
HORIZONTAL SPINDLE SPPED RANGE
r/min
30-1500
FEED
18
FEED SPEED STEPS
18
19
FEED SPEED RANGE:LONGITUDINAL X
mm/min
22-1100
20
FEED SPEED RANGE:CROSS Y
mm/min
22-1100
21
FEED SPEED RANGE:VERTICAL Z
mm/min
8.3-410
22
RAPID FEED RANGE:LONGITUDINAL X
mm/min
2400
23
RAPID FEED RANGE:CROSS Y
mm/min
2400
24
RAPID FEED RANGE:VERTICAL Z
mm/min
900
POWER SOURCE
25
MAIN MOTOR POWER
kw
11
26
MAIN MOTOR REVOLVING SPEED
r/min
960
27
FEED MOTOR POWER
kw
3
28
FEED MOTOR REVOLVING SPEED
r/min
1420
29
COOLANT PUMP POWER
kw
0.12
30
COOLANT PUMP REVOLVING SPEED
litre/min
2760
31
VERTICAL MILLING HEAD MOTOR POWER
kw
3
32
VERTICAL MILLING HEAD MOTOR REVOLVING SPEED
r/min
1420
OTHERS
33
MAX. ROTARY ANGLE OF TABLE
±45°
34
UNIVERSAL MILLING HEAD ROTARY ANGLE
360°
35
DISTANCE FROM HORIZONTAL SPINDLE FACE TO WORKTABLE
mm
30-500
36
DISTANCE FROM HORIZONTAL SPINDLE CENTER TO ARM
mm
201
37
DISTANCE FROM VERICAL SPINDLE FACE TO HORIZONTAL SPIDDLE CENTER
mm
60-140
38
VERTAL TRAVEL OF VERTICAL SPINDLE
mm
80
39
MACHINE DIMENSION
mm
2522×2262×2210
40
MACHINE WEIGHT
kg
5300
