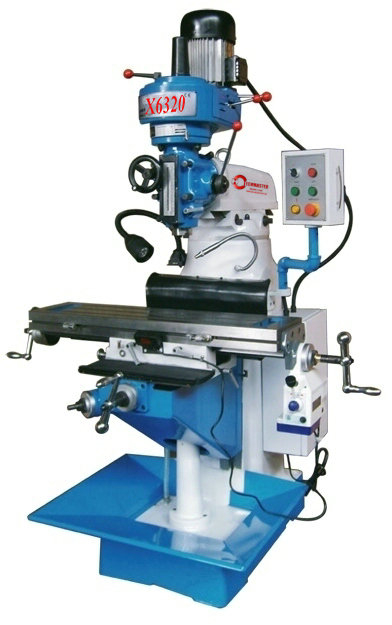

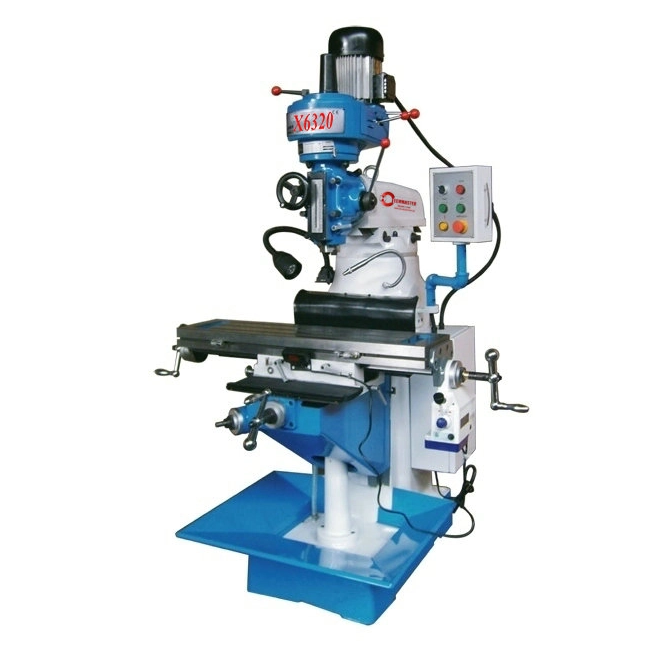

| MODEL | X6320/X6320V |
| Specifications | |
| Table size | 910 x 200 mm |
| Table travel (X,Y) | 600 x 240 mm |
| Knee travel | 350 mm |
| T-slot | 3 x 16 mm |
| Ram travel | 300 mm |
| Distance spindle nose to table | 350 mm |
| Spindle taper | R8/NT30 |
| Spindle stroke | 120 mm |
| Step of spindle speeds | 12 Kinds / Variable |
| Range of spindle speeds | 150~2500 / 50~3500 rpm |
| Automatic spindle feed (mm/rev) | 0/3 steps 0.04/0.08/0.16 mm/rev |
| Spindle motor | 1.1 / 2.2 kw |
| Head swivel (L&R) | 90° |
| Head tilt (Back&Forward) | 0°/ 0° |
| Y-axis guideway | Dovetail |
| Z-axis guideway | Dovetail |
| Packing size | 1400 x 1300 x 1900 mm |
| Net weight | 800 kg |
