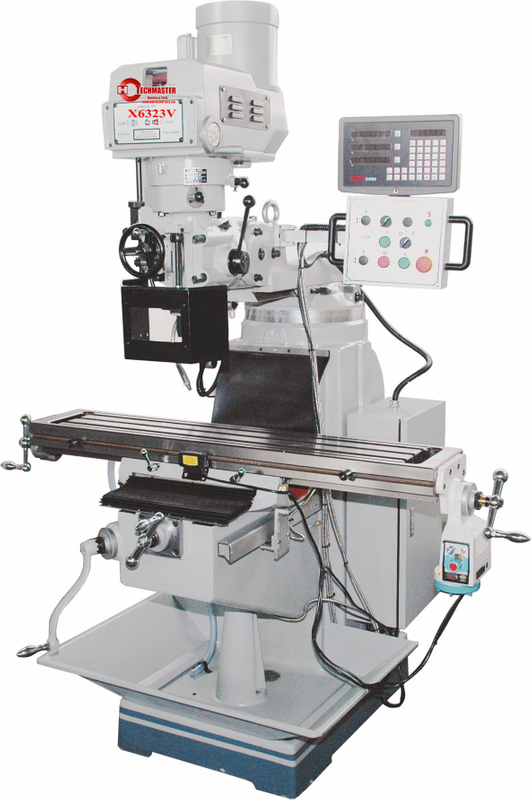

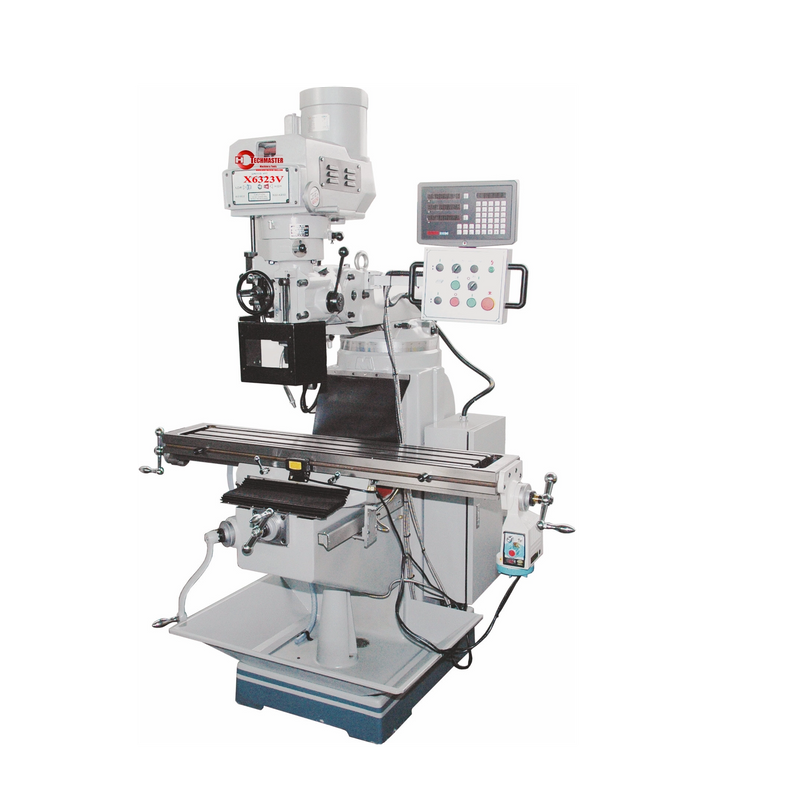

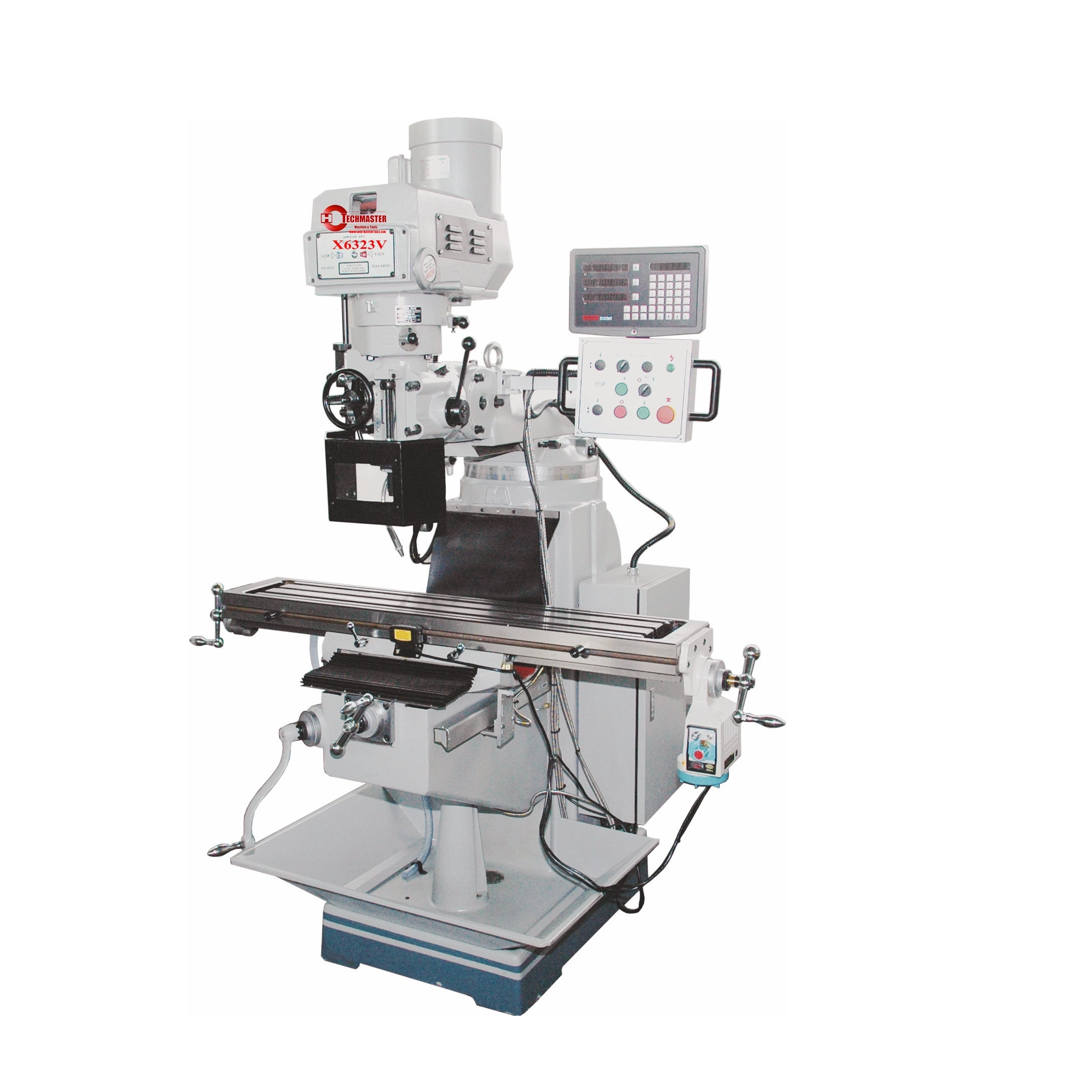

3-axes digital read-out
aut. feed for X- and Y axis
aut. quill feed
infinitely variable spindle speed
left- / right-handed rotation
head can swivel on 3 axes
panning r + l 90°
tilting forward + back 45°
turning on the column 45°
hardened and ground guidings and work table
halogen working light
cooling equipment
central lubrication for spindle, lead screw and slideways
operator tools
machine and equipment according to the CE-regulations
user manual in GERMAN and ENGLISH
torquing arbor
swarf plate
operator tools
technical data table: | 230 x 1067 mm |
working area: | 650 x 305 x 405 mm |
taper: | ISO 40 |
revs: | 68 - 3.000 r.p.m. |
longit. travel man. feed: | 750 mm |
longit. travel aut. feed: | 650 mm |
cross travel: | 305 mm |
vertical travel: | 405 mm |
spindle head tiltable left-right: | 90° |
spindle head tiltable front-back: | 45° |
spindle feed: | 0,04/ 0,08/ 0,15 mm/1 |
spindle diameter: | 86 mm |
spindle stroke: | 127 mm |
motor: | 2,2 kW |
length: | 2.045 mm |
width: | 1.630 mm |
height: | 2.070 mm |
weight: | 1.100 kg |
