| Quantity: | |
|---|---|

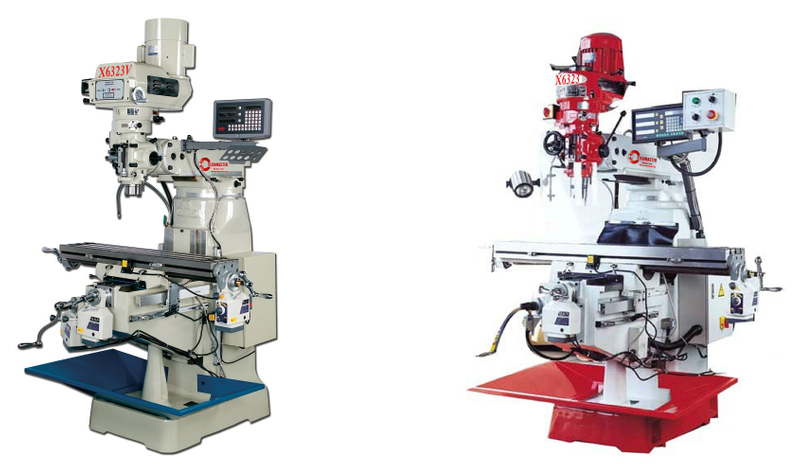

| Item No. | X6323 | X6323V |
| Specifications | ||
| Table size | 1067 x 230 mm | 1067 x 230 mm 9"X42" |
| Table travel (X,Y) | 650 x 305 mm | 650 x 305 mm |
| Knee travel | 400 mm | 400 mm |
| T-slot | 3 x 16 mm | 3 x 16 mm |
| Ram travel | 312 mm | 312 mm |
| Distance spindle nose to table | 415 mm | 415 mm |
| Spindle taper | R8 or ISO30 | R8 or ISO30 |
| Spindle stroke | 127 mm | 127 mm |
| Step of spindle speeds | 16 Kinds / Variable | Variable |
| Range of spindle speeds | 65~4500 rpm | 65~4200 rpm |
| Automatic spindle feed (mm/rev) | 3 steps 0.04/0.08/0.15 | 3 steps 0.04/0.08/0.15 |
| Spindle motor | 2.25 kw | 2.25 kw |
| Head swivel (L&R) | 90° | 90° |
| Head tilt (Back&Forward) | 45° | 45° |
| Y-axis guideway | Dovetail | Dovetail |
| Z-axis guideway | Dovetail | Rectangular |
| Packing size | 1400 x 1476 x 2030 mm | 1400 x 1476 x 2030 mm |
| Net weight | 1100 kg | 1160 kg |
| Item No. | X6323 | X6323V |
| Specifications | ||
| Table size | 1067 x 230 mm | 1067 x 230 mm 9"X42" |
| Table travel (X,Y) | 650 x 305 mm | 650 x 305 mm |
| Knee travel | 400 mm | 400 mm |
| T-slot | 3 x 16 mm | 3 x 16 mm |
| Ram travel | 312 mm | 312 mm |
| Distance spindle nose to table | 415 mm | 415 mm |
| Spindle taper | R8 or ISO30 | R8 or ISO30 |
| Spindle stroke | 127 mm | 127 mm |
| Step of spindle speeds | 16 Kinds / Variable | Variable |
| Range of spindle speeds | 65~4500 rpm | 65~4200 rpm |
| Automatic spindle feed (mm/rev) | 3 steps 0.04/0.08/0.15 | 3 steps 0.04/0.08/0.15 |
| Spindle motor | 2.25 kw | 2.25 kw |
| Head swivel (L&R) | 90° | 90° |
| Head tilt (Back&Forward) | 45° | 45° |
| Y-axis guideway | Dovetail | Dovetail |
| Z-axis guideway | Dovetail | Rectangular |
| Packing size | 1400 x 1476 x 2030 mm | 1400 x 1476 x 2030 mm |
| Net weight | 1100 kg | 1160 kg |
