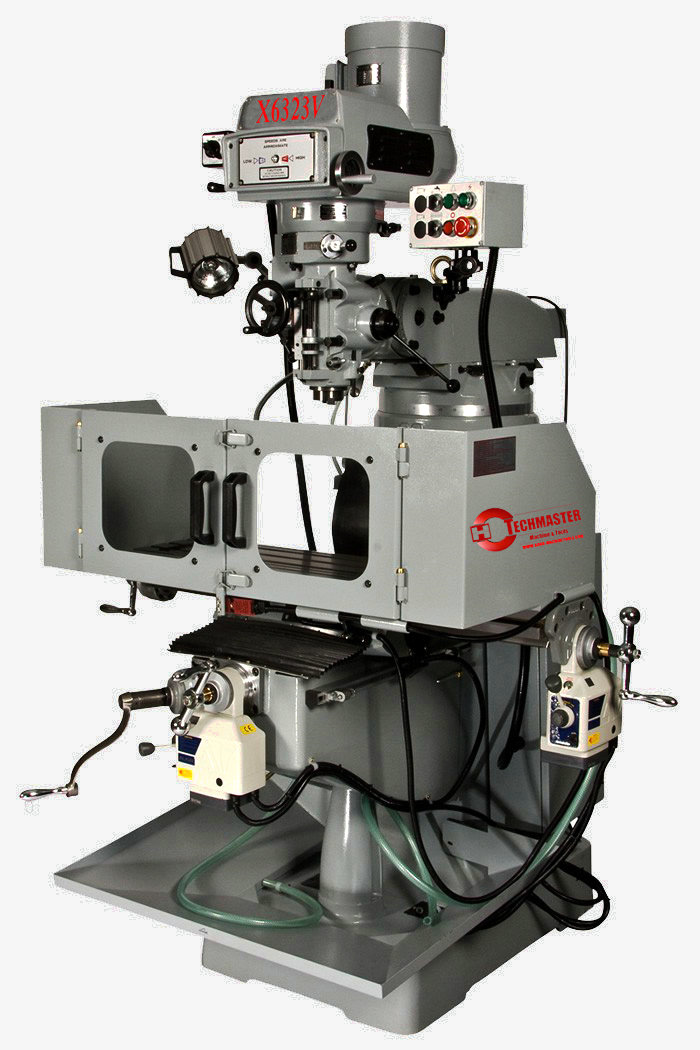

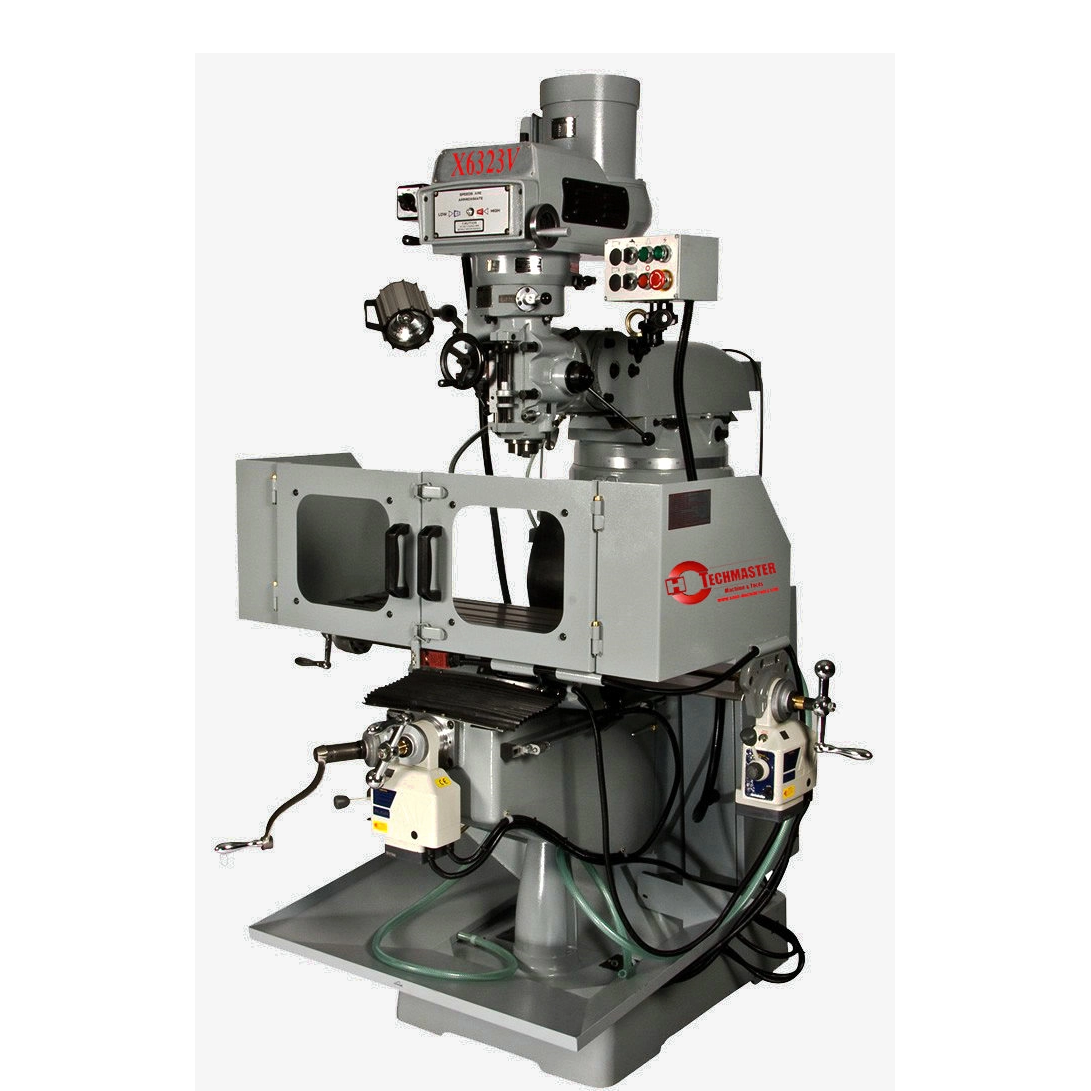

X6323V
Quantity: Milling machine, Bridgeport type, well finished. Quill with feed. Lubrication system equipped with timer. High quality bearing for high RPM.
- feed on X and Y axis
- spindle with mechanical brake
- turning and tilting head
- including Newall DRO
- guideways hardened and ground
- dovetail guide on X axis, square guide on Y axis
- control panel
- halogen machine light
- high quality table protection
Spindle taper DIN 2080 ISO 40 Diameter spindle 86 mm Speed vertical spindle 60 - 4200 vario rpm Motor power vertical 2,2 kW Upper arm travel 305 mm Longitudinal table travel X - 762, Y - 305, Z - 406 mm T-slots number/dimensions 3 x 16 mm Milling head tilt forward/backward 45 ° Milling head tilt left/right 90 ° Table size 1067 x 230 lxw Dimensions machine w x h x d 1600 x 1450 x 2100 mm Net weight 1000 kg Voltage 400 V
Milling machine, Bridgeport type, well finished. Quill with feed. Lubrication system equipped with timer. High quality bearing for high RPM.
- feed on X and Y axis
- spindle with mechanical brake
- turning and tilting head
- including Newall DRO
- guideways hardened and ground
- dovetail guide on X axis, square guide on Y axis
- control panel
- halogen machine light
- high quality table protection
Spindle taper DIN 2080 ISO 40 Diameter spindle 86 mm Speed vertical spindle 60 - 4200 vario rpm Motor power vertical 2,2 kW Upper arm travel 305 mm Longitudinal table travel X - 762, Y - 305, Z - 406 mm T-slots number/dimensions 3 x 16 mm Milling head tilt forward/backward 45 ° Milling head tilt left/right 90 ° Table size 1067 x 230 lxw Dimensions machine w x h x d 1600 x 1450 x 2100 mm Net weight 1000 kg Voltage 400 V
