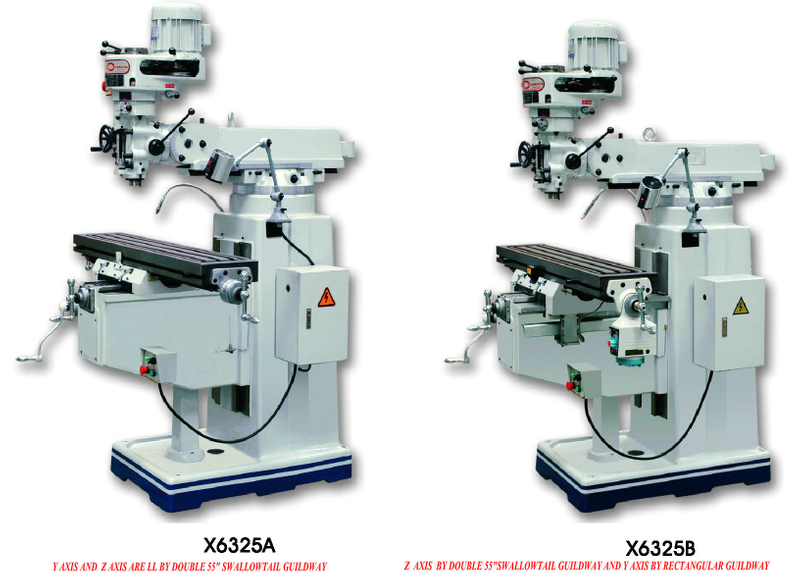

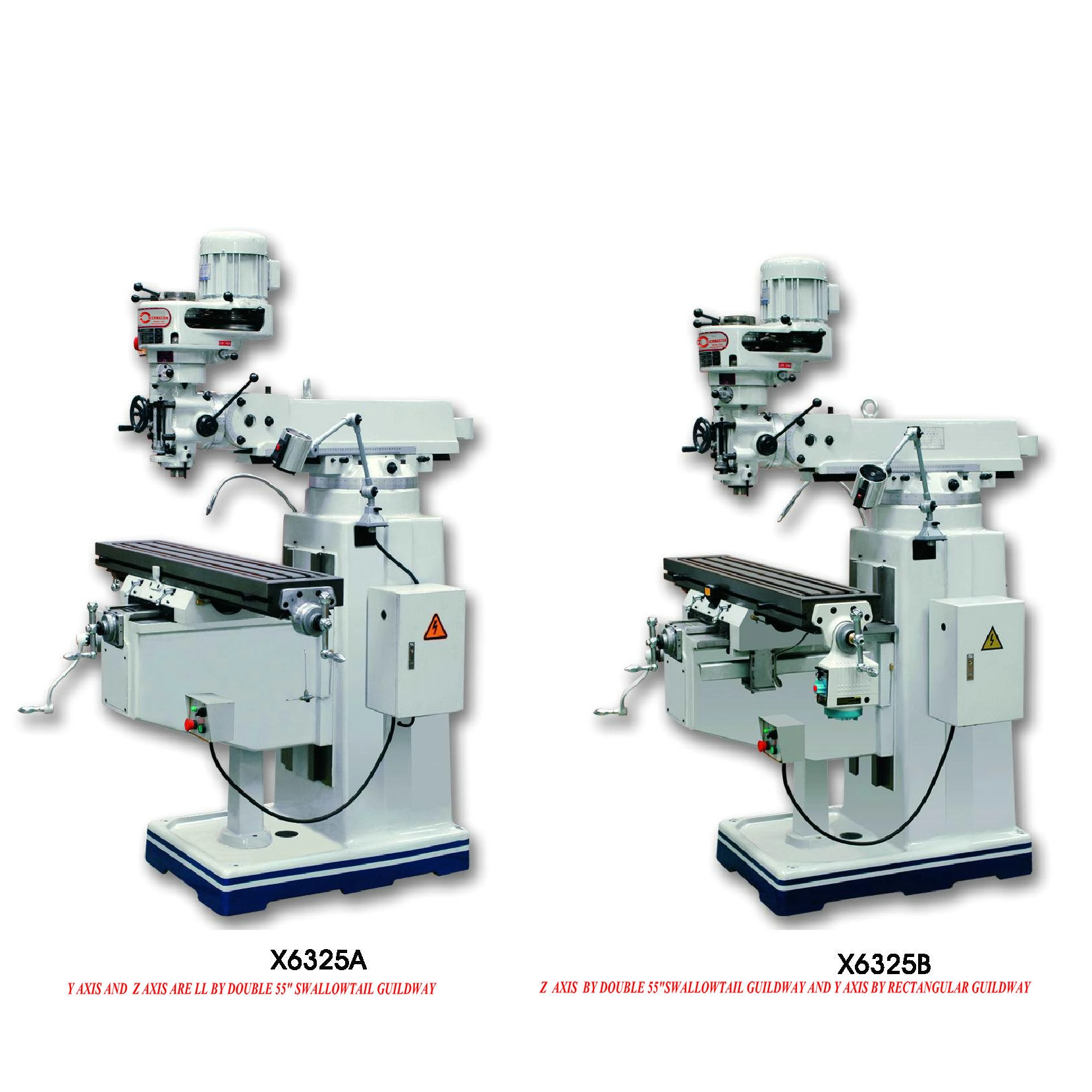

| Model No. | X6325A/X6325B | |
| Specifications | ||
Table size | 254X1270mm | |
Table travel (X,Y) mm | 850x400 | 950x400 |
Knee travel | 420 mm | |
T-slot | 3 x 16 mm | |
Ram travel | 470 mm | |
| Distance spindle nose to table | 0~405 mm | |
Spindle taper | R8/ISO30 | |
Spindle stroke | 127 mm | |
Step of spindle speeds | 16Kinds | |
Range of spindle speeds | 65~4500 rpm | |
Automatic spindle feed | 3 steps 0.04/0.08/0.15 mm/rev. | |
Spindle motor | 2.25 kw | |
Head swivel (L&R) | 90° | |
| Head tilt (Back&Forward) | 45° | |
z-axis guideway | Dovetail | |
y-axis guideway | Dovetail | Rectangular |
Packing size | 1516 x 1550 x 2080mm | |
Net weight | 1420 kg | 1550 kg |
