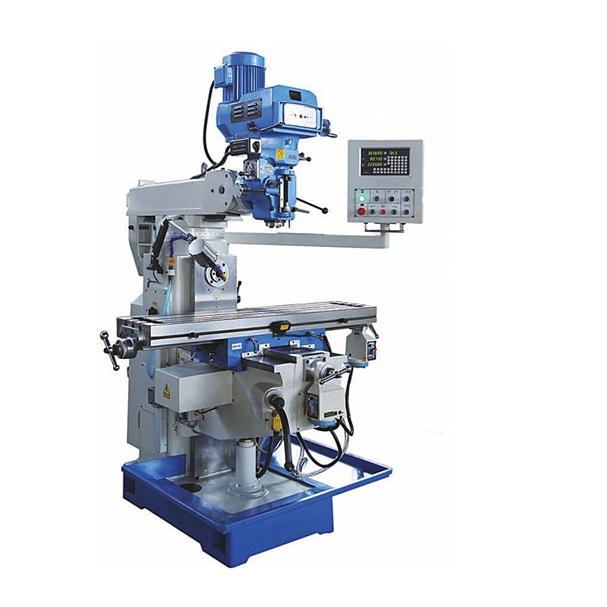

Main Specification for X6330W
Turret Milling machine
vertical milling variable speed
X/Y axis auto feedidng
| Specification | Unit | X6325W | X6330W -VARIO |
| Table size | mm | 1270X254 | 1370x305 |
| T slot | 3/16/65 | 3/16/65 | |
| Longitudinal travel | mm | 750(850manually) | 800 |
| Cross travel | mm | 400 | 380 |
| Vertical travel | mm | 400 | 360 |
| Quill travel | mm | 127 | 127 |
| Spinedle and Column distance | mm | 155-635 | 155-635 |
| Spindle and table distance | mm | 0-640 | 0-460 |
| Arm travel | mm | 400 | 500 |
| Milling head tilting | degree | 90(left right)45(front back) | 90(left right)45(front back) |
| Spindle taper | R8(V);NT80(H) | R8(V);NT80(H) | |
| Spindle speed | r/min | 66-4540(V);40-1300(H) | 66-4540(V);40-1300(H) |
| Spindle motor power | kw | 2.2(V);3(H) | 2.2(V);3(H) |
| Table load | kg | 350 | 350 |
| Overall size | mm | 1750x1530x2340 | 1750x1650x2340 |
| Net weight | kg | 1380 | 1550 |
| Standrad Accessories: |
| drill chuck, wrench, wedge shifter, milling chuck, reduction sleeve, spindle arbor, draw bar, |
| horizontal milling arbor, QH160mm machine vise, oil tray, coolant system, |
| manual central lubrication system. |
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
Machine's Detailed Pics.
