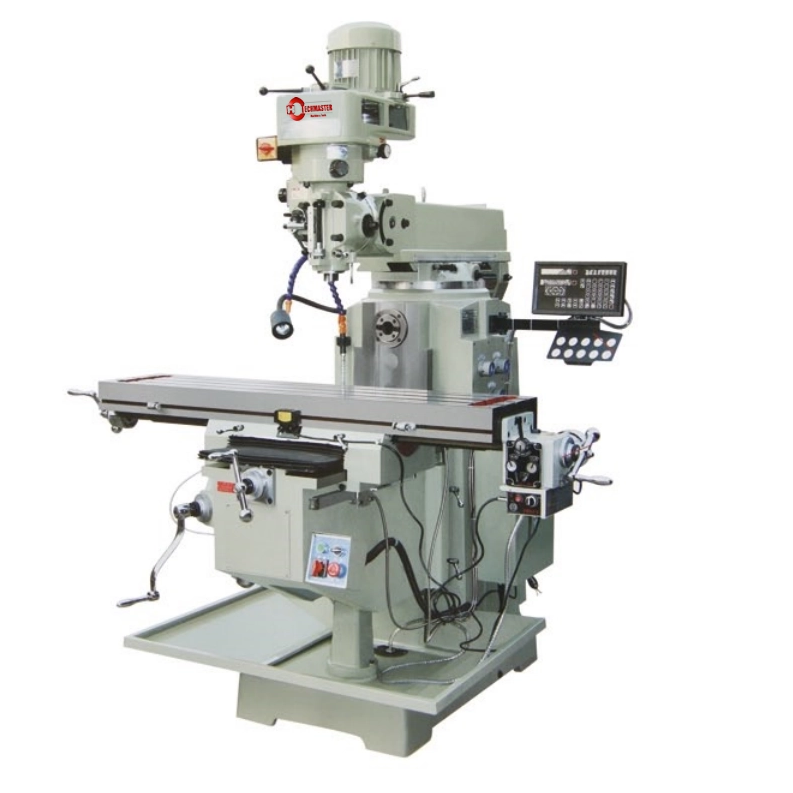

X6330W universal vertical turret milling machine

Availability:
Quantity:
  • X6330W


Main Specification for X6330W
Turret Milling machine
vertical milling variable speed
X/Y axis auto feedidng


Specification Unit X6325W X6330W
Table size mm 1270X254 1370x305
T slot
3/16/65 3/16/65
Longitudinal travel mm 750(850manually) 800
Cross travel mm 400 380
Vertical travel mm 400 360
Quill travel mm 127 127
Spinedle and Column distance mm 155-635 155-635
Spindle and table distance mm 0-640 0-460
Arm travel mm 400 500
Milling head tilting degree 90(left right)45(front back) 90(left right)45(front back)
Spindle taper
R8(V);NT80(H) R8(V);NT80(H)
Spindle speed r/min 66-4540(V);40-1300(H) 66-4540(V);40-1300(H)
Spindle motor power kw 2.2(V);3(H) 2.2(V);3(H)
Table load kg 350 350
Overall size mm 1750x1530x2340 1750x1650x2340
Net weight kg 1380 1550
Standrad Accessories:
drill chuck, wrench, wedge shifter, milling chuck, reduction sleeve, spindle arbor, draw bar,
horizontal milling arbor, QH160mm machine vise, oil tray, coolant system,
manual central lubrication system.

 Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operationcan contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.


Machine's Detailed Pics.
X6330W Vertical Variable Speed Universal Turret Milling Machine with Ce
