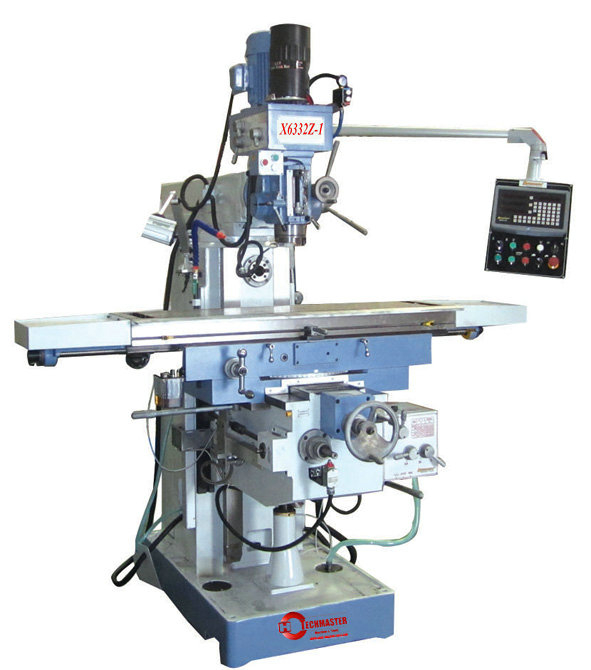

| Model No | Units | X633Z-1 |
| Table size | mm | 1320×320mm |
| Number/width/distance of T-slot | mm | 3-14- 95 |
| Table travel | mm | 1000×280×400 |
| Spindle taper | | ISO40 (V) /ISO50 (H) |
| Spindle speed/steps | rpm | 90-2000/18 steps (V) 38-1310/12 steps (H) |
| Max. drilling dia. | mm | 50 |
| Max. tapping dia. | mm | 25 |
| Quill travel | mm | 120 |
| Max. swivel angle of headstock | | ±45° |
| Vertical spindle axis to column surface | mm | 200-780 |
| Vertical spindle nose to table surface | mm | 180-580 |
| Vertical spindle axis to table surface | mm | 70-470 |
| Longitudinal/transverse feed | mm/min | 22-420 /22-393/ 10-168 |
| Spindle motor power | Kw | 2.2(V) 4.0(H) |
| Overall dimension | mm | 1710×1720×2330 |
| G.W. | Kg | 2000Kgs |
