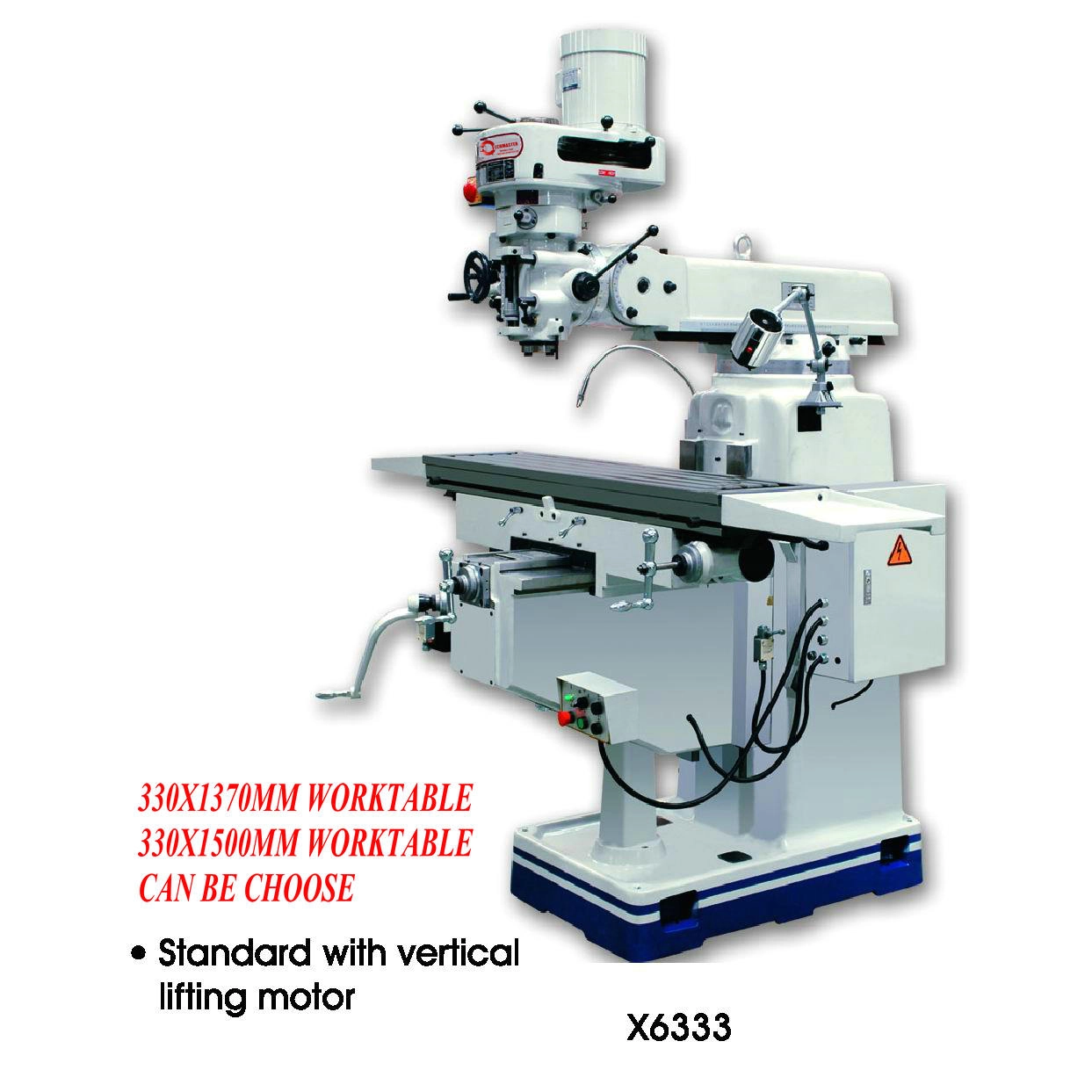

X6333
Quantity: Model X6333 /X6333V(VARIABLE SPEED ) Specifications Table size1370 x 330 mm
Table travel (X,Y)840 x 368 mm
Knee travel450 mm
T-slot3 x 16 mm
Ram travel500 mm
Distance spindle nose to table0~450 mm
Spindle taperISO40
Spindle stroke127 mm
Step of spindle speeds16 Kinds / Variable
Range of spindle speeds65-4500rpm(16KINDS )
65~3750 rpm(VARIABLE )Automatic spindle feed3 steps 0.04/0.08/0.15 mm/rev.
Spindle motor3.75 kw
Head swivel (L&R)90°
Head tilt (Back&Forward) 45°
Y-axis guidewayRectangular
Z-axis guidewayRectangular
Packing size1800 x 2016 x 2180 mmNet weight2300 kg
