The main performance characteristics:
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application:

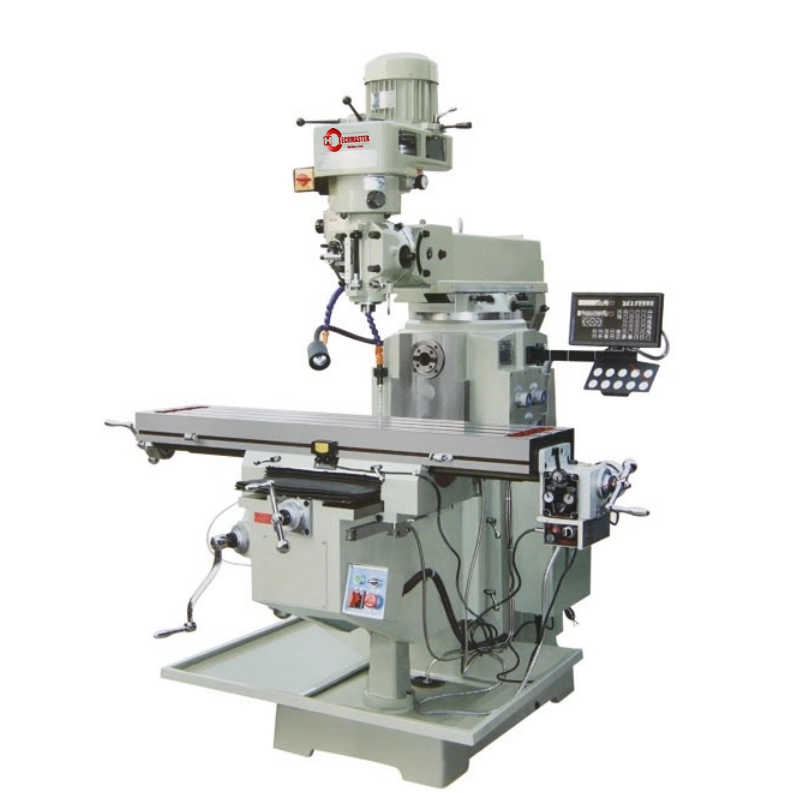

The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Specifications | Units | X6333W | ||
mm | 1500x330 | |||
mm | ||||
X | mm | 1000 | ||
Y | 350 | |||
Z | 360 | |||
mm | 500 | |||
horizontal nose to working table distance | mm | 0-360 | ||
-- | Horizontal : NT40 | |||
r/min | vertical:50-3750(variable) 66-4540(16 steps) horizontal:40-1300(16 steps) | |||
KW | V 5kw H 3kw | |||
Head rotation (left - right ) | ° | 90° | ||
Head rotation (front - rear) | ° | 45° | ||
overall size | mm | 2400x1700x2350 | ||
net weight | Kg | 1980 | ||
| Standrad Accessories: |
| drill chuck, wrench, wedge shifter, milling chuck, reduction sleeve, spindle arbor, draw bar, |
| horizontal milling arbor, QH160mm machine vise, oil tray, coolant system, |
| manual central lubrication system. |
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
