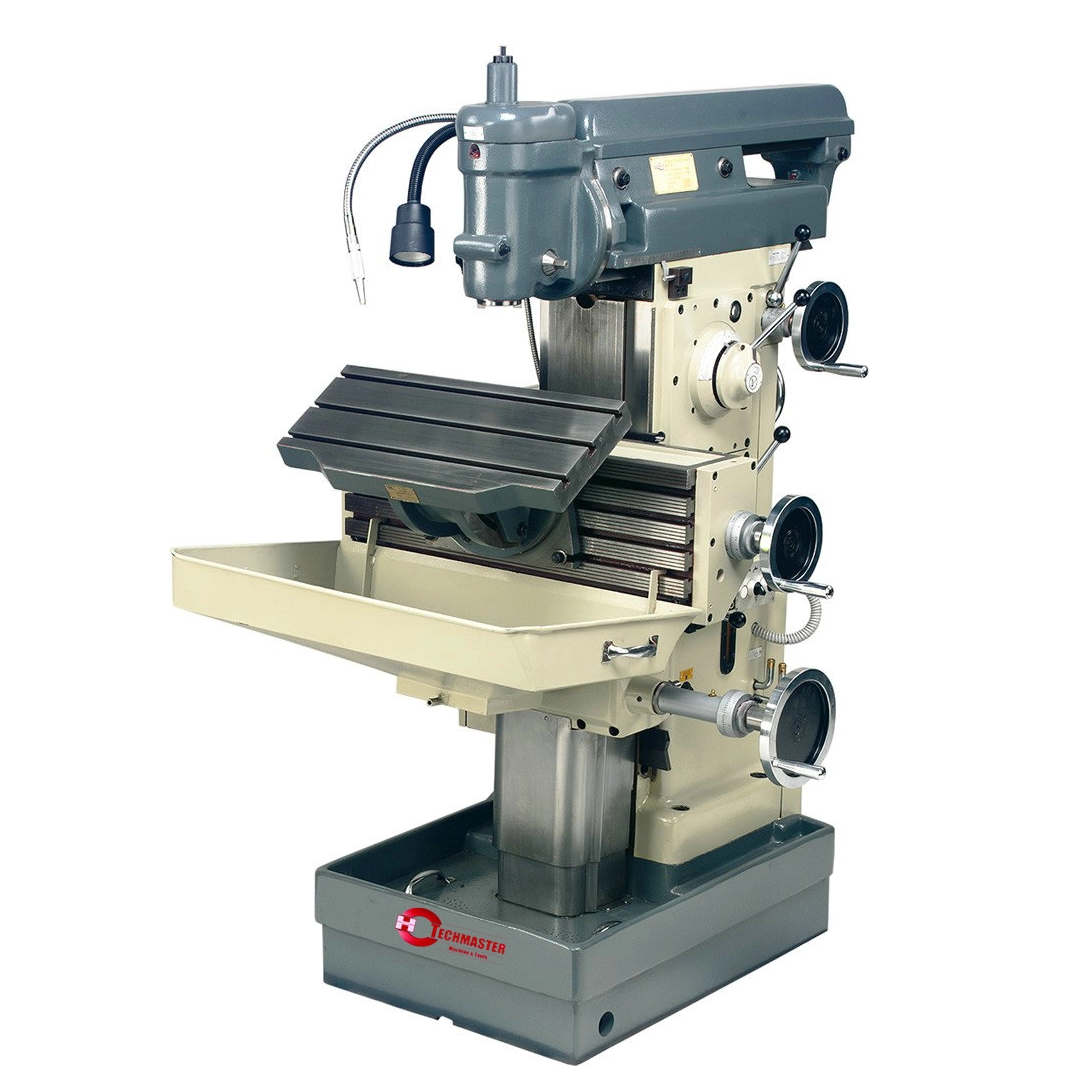

| Model | X8126C |
| Distance between axis of horizontal spindle to table | 35---385mm/42---392mm/132---482mm |
| Distance between vertical spindle nose to horizontal spindle axis | 95 mm |
| Distance between horizontal spindle nose to vertical spindle axis | 131 mm |
| Transverse travel of horizontal spindle | 200mm |
| Vertical travel of vertical spindle quil | 80 mm |
| Range of horizontal spindle speeds | (8 steps),110---1230rpm |
| Range of vertical spindle speed | (8 steps) 150---1660rpm |
| Spindle hole taper | ISO40 |
| Swivel angle of vertical spindle axis | ± 45° |
| Main motor | 3KW |
| Overall packing dimension | 1700x1270x1980mm |
| Net weight | 1410KG |
