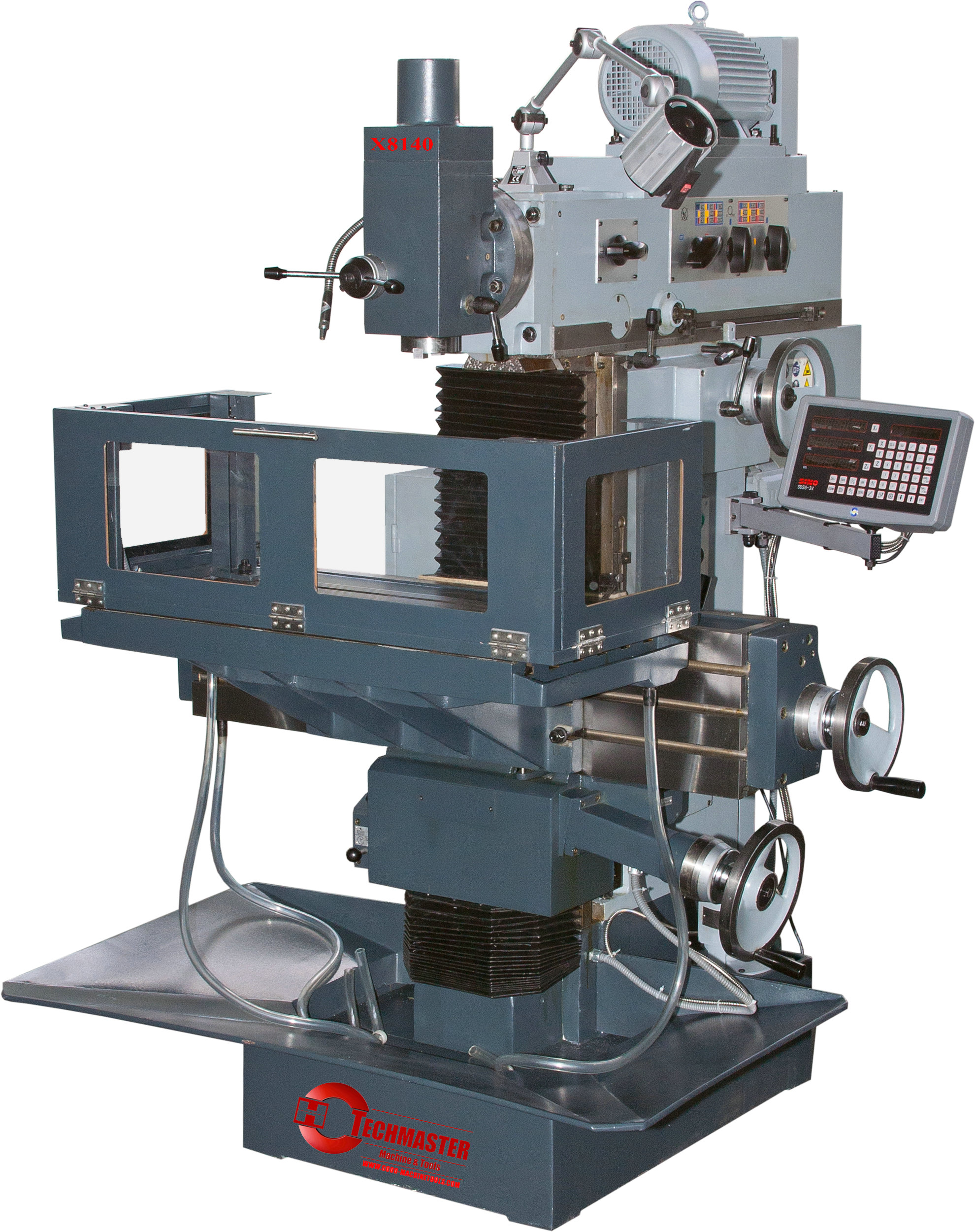

X8132 DRO

Quantity:

3 axes digital read out
feed in all 3 axes
hardended and ground guideways
horizontal milling unit
cooling equipment
machine lamp
torquing arbor
horizontal counter bearing
milling arbor set
adapter set ISO-MK
set of collets
swarf plate
table cover
operator tools


table: 750 x 320 mm
working area: 405 x 305 x 400 mm
taper: ISO 40
revs: 40 - 2000 U/min (18)
vertical table: 830 x 225 mm
distance spindle - table: horizontal spindle 85 - 485 mm, vertical spindle 50 - 450 mm
distance vertical spindle-column: 425 mm
max. load on table: 300 kg
feeds (X,Y,Z): 10-380 mm/min
main motor: 2,2 kW
feed motor: 0,75 kW
length: 1.200 mm
width: 1.400 mm
height: 1.820 mm
weight: 1.300 kg
