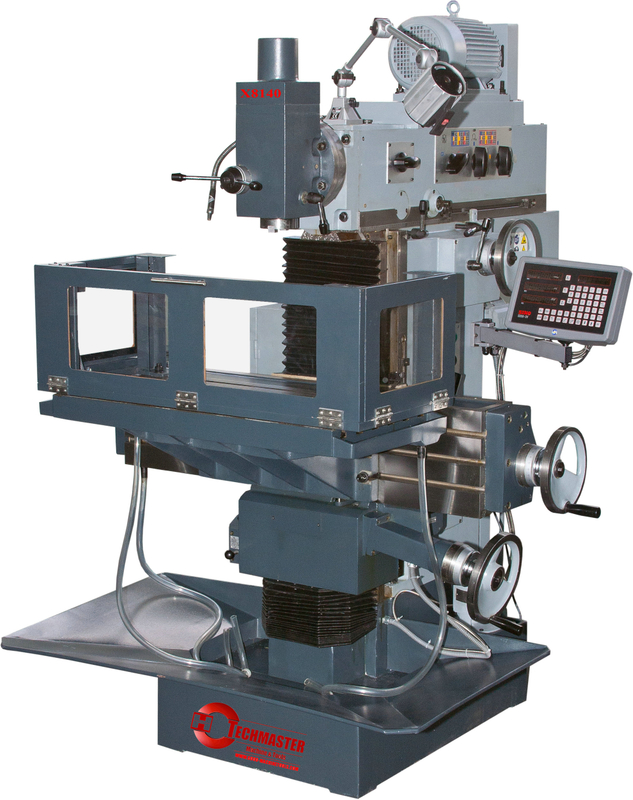

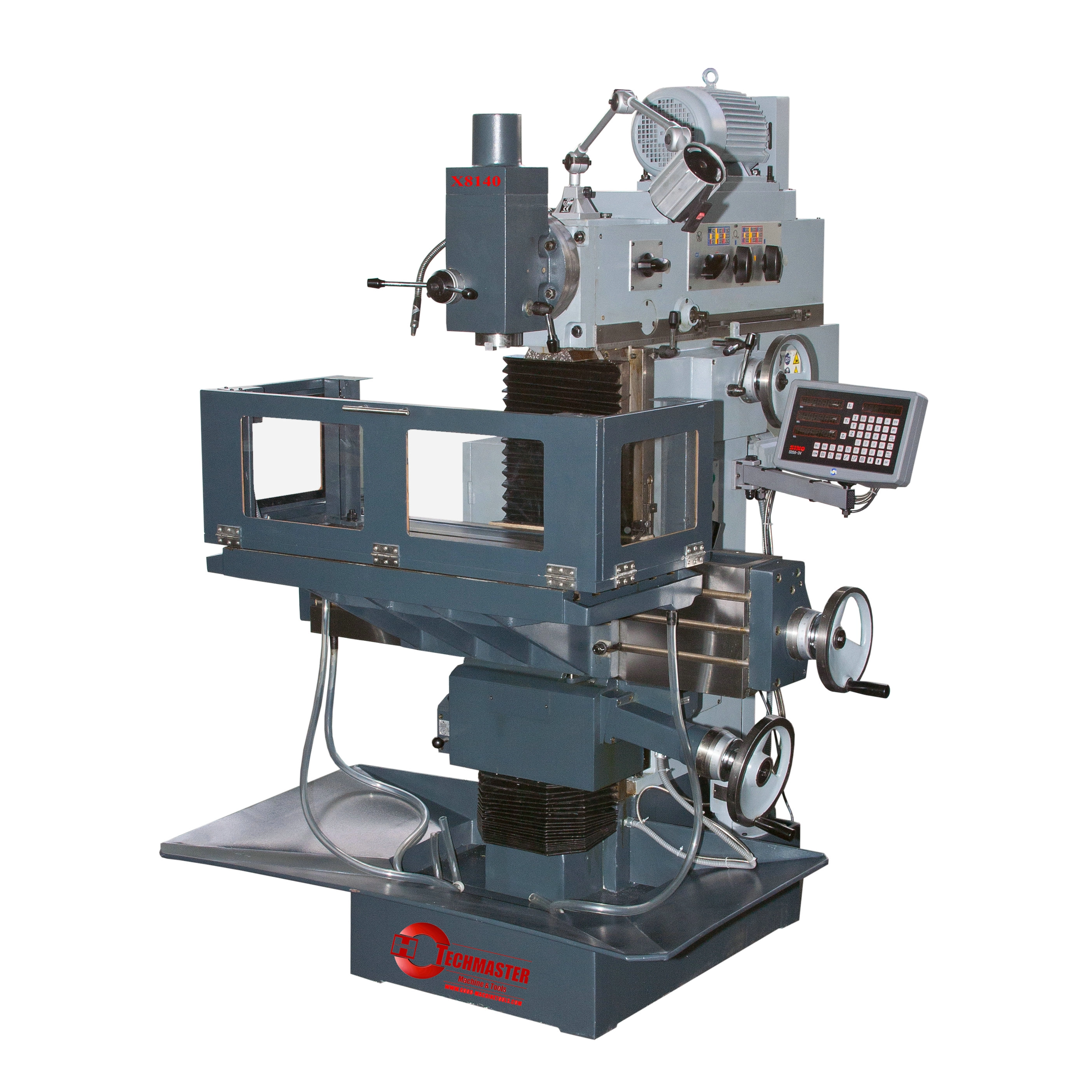

X8140 DRO
Quantity: 3 axes digital read out
feed in all 3 axes
hardended and ground guideways
horizontal milling unit
cooling equipment
machine lamp
torquing arbor
horizontal counter bearing
milling arbor set
adapter set ISO-MK
set of collets
swarf plate
table cover
operator tools
table: 800 x 400 mm working area: 405 x 400 x 400 mm taper: ISO 40 revs: 40 - 2000 U/min (18) vertical table: 1.060 x 250 mm distance spindle - table: horizontal spindle 85 - 450 mm, vertical spindle 50 - 450 mm distance vertical spindle-column: 540 mm max. load on table: 300 kg feeds (X,Y,Z): 10-380 mm/min main motor: 3 kW feed motor: 1,1 kW length: 1.650 mm width: 1.430 mm height: 1.820 mm weight: 1.400 kg
