X8140 WANGQUAN

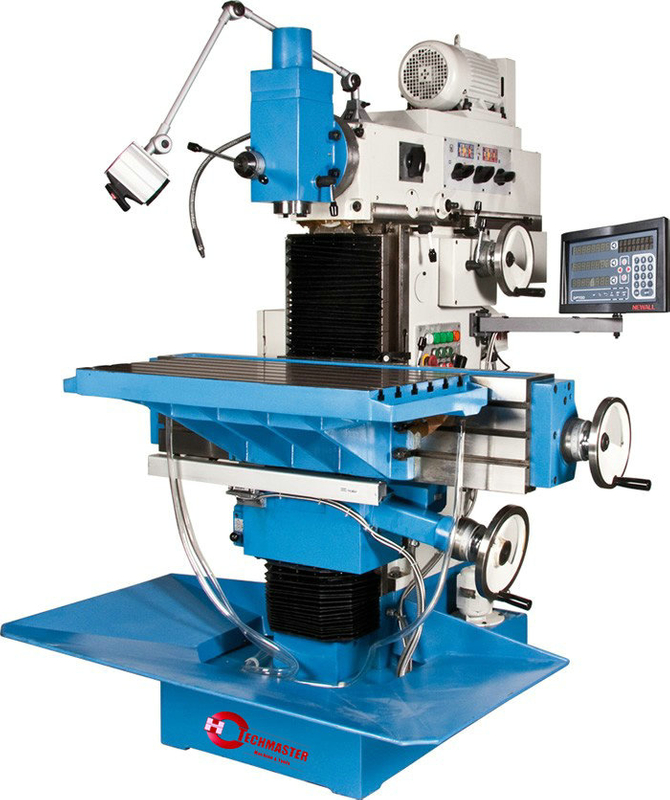

Industrial milling machine for mechanical construction. The controls are easily accessed on the right hand side of the machine. By turning the head away, the machine can be converted into a horizontal milling machine in no time. The table can be removed through 6 T bolts. Equipped with a heavy drill spindle. The ram can be moved. The head can be tilted to the left and right and has a graduation. Compact machine but very stable construction.
hardened guide ways
cooling system
central lubrication
halogen machine light
chip tray
Spindle taper | DIN 2080 ISO 40 |
---|---|
Spindle speed range vertical spindle | 40-2000 rpm |
Motor power vertical | 3 kW |
Longitudinal table travel | X-500 Y-400 Z-400 mm |
Distance spindle column | 90-540 mm |
Rapid travel | 1200 mm/min |
Feed range | 10-380 mm/r |
T-slots number/dimensions | 6, 14x63 mm |
Distance spindle-table | 50-450 mm |
Max. weight work piece | 300 kg |
Table size | 800x400 lxw |
Dimensions machine w x h x d | 1390x1430x1820 mm |
Net weight | 1400 kg |
Voltage | 400 V |
