| Quantity: | |
|---|---|
Optional
NO. | Name | Reference photo |
1 | Aluminum hang arm |
|
2 | 4-axis Digital readout (after install DRO, Y travel will be 360mm) |
|
3 | Spindle cover |
|
4 | Worktable cover |
|
5 | LED work lamp |
|
6 | Swivel table ±45° |
|
7 | Automatic central oil lubrication |
|
8 | Schneider electric |
|
Standard Accessories
No. | Name | Specifications | Qty. |
1 | Main machine | 1 | |
2 | Allen wrench | 5 | 1 |
3 | Allen wrench | 6 | 1 |
4 | Allen wrench | 10 | 1 |
5 | Allen wrench | 12 | 1 |
6 | Wrench | 17×19 | 1 |
7 | Wrench | 22×24 | 1 |
8 | Wrench | 32×36 | 1 |
9 | Lifting crank | 1 | |
10 | Machine vice | 5 inch | 1 |
11 | Milling arbor | 7:24 ISO40 Φ27 | 1 |
12 | ISO40 milling chuck | 6 pcs | 1 |
13 | Draw bar | 1 |

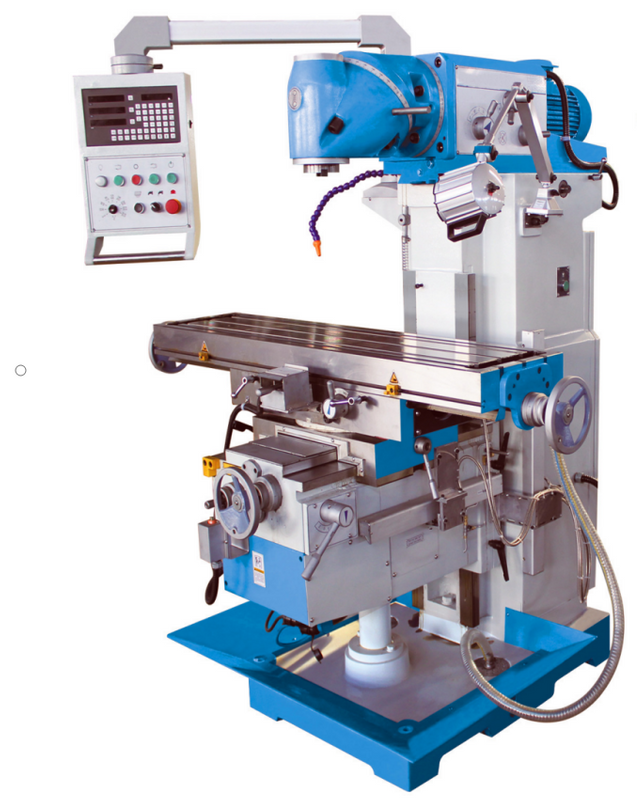

Specifications

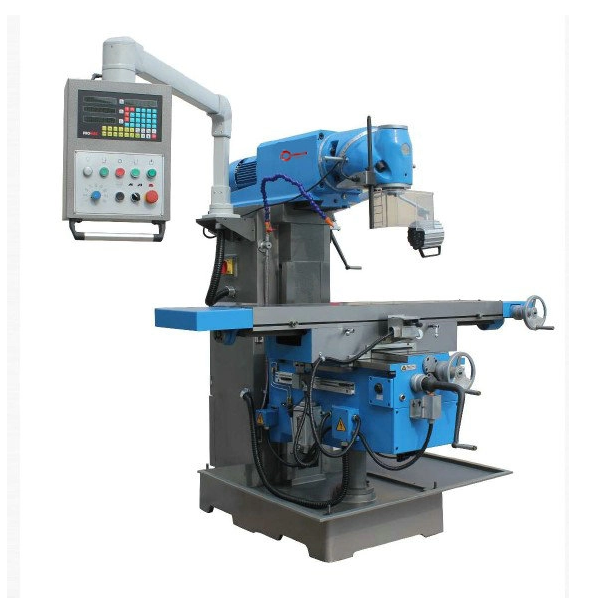

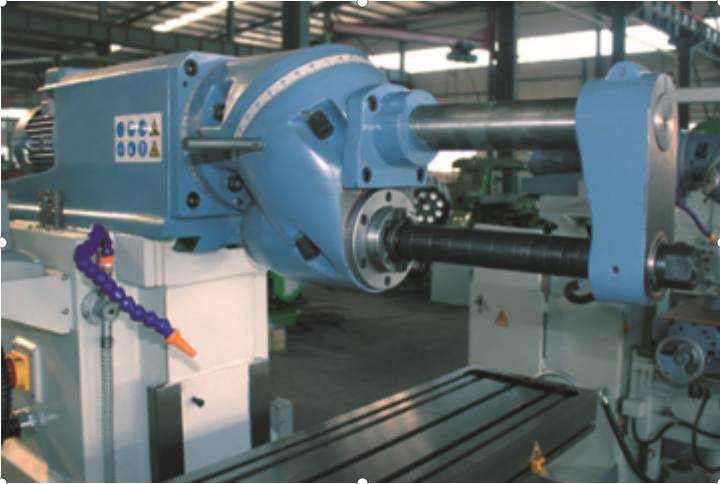

Specifications | Unit | XL6230 | XL6230A | XL6230B | XL6230C | |
Table size | mm | 1270*300 | 1370*300 | 1270*300 | 1370*300 | |
T-slots(NO./width/pitch) | mm | 3*14*80 | ||||
Max table travel - X/Y/Z | mm | 720/300/400 | 820/300/400 | 900/380/400 | 1000/380/400 | |
Spindle taper | - | 7:24 ISO40 | ||||
Distance between spindle nose and table surface | mm | 100-500 | ||||
Spindle speed range | r.p.m | 11 steps 45-1660 | ||||
Max swivel angle of milling head | - | 360° | ||||
Table feed(X/Y/Z) | mm/min | XY:30-830 Z:23-625 | ||||
Table rapid speed | 1335/1335/1000 | |||||
Main motor power | Kw | 3 | ||||
Torque of X/Y/Z axis AC servo motor | Nm | 10 | ||||
Overall size | mm | 1730*1760*1700 | 1830*1760*1700 | 1730*1760*1700 | 1830*1760*1700 | |
Optional rotary table is available
Model | Table size | Max table travel - X/Y/Z | Max rotary angle of table | Distance between spindle nose and table surface |
6230W | 1270*320 | 720/300/400 | 60-460 |
Optional rotary table is available
Model | Table size | Max table travel - X/Y/Z | Max rotary angle of table | Distance between spindle nose and table surface |
XL6230W | 1270*320 | 720/300/400 | 60-460 | |
XL6230AW | 1370*320 | 820/300/400 | ||
XL6230BW | 1270*320 | 900/380/400 | ||
XL6230CW | 1370*320 | 1000/380/400 |
Optional
NO. | Name | Reference photo |
1 | Aluminum hang arm |
|
2 | 4-axis Digital readout (after install DRO, Y travel will be 360mm) |
|
3 | Spindle cover |
|
4 | Worktable cover |
|
5 | LED work lamp |
|
6 | Swivel table ±45° |
|
7 | Automatic central oil lubrication |
|
8 | Schneider electric |
|
Standard Accessories
No. | Name | Specifications | Qty. |
1 | Main machine | 1 | |
2 | Allen wrench | 5 | 1 |
3 | Allen wrench | 6 | 1 |
4 | Allen wrench | 10 | 1 |
5 | Allen wrench | 12 | 1 |
6 | Wrench | 17×19 | 1 |
7 | Wrench | 22×24 | 1 |
8 | Wrench | 32×36 | 1 |
9 | Lifting crank | 1 | |
10 | Machine vice | 5 inch | 1 |
11 | Milling arbor | 7:24 ISO40 Φ27 | 1 |
12 | ISO40 milling chuck | 6 pcs | 1 |
13 | Draw bar | 1 |
Specifications
Specifications | Unit | XL6230 | XL6230A | XL6230B | XL6230C | |
Table size | mm | 1270*300 | 1370*300 | 1270*300 | 1370*300 | |
T-slots(NO./width/pitch) | mm | 3*14*80 | ||||
Max table travel - X/Y/Z | mm | 720/300/400 | 820/300/400 | 900/380/400 | 1000/380/400 | |
Spindle taper | - | 7:24 ISO40 | ||||
Distance between spindle nose and table surface | mm | 100-500 | ||||
Spindle speed range | r.p.m | 11 steps 45-1660 | ||||
Max swivel angle of milling head | - | 360° | ||||
Table feed(X/Y/Z) | mm/min | XY:30-830 Z:23-625 | ||||
Table rapid speed | 1335/1335/1000 | |||||
Main motor power | Kw | 3 | ||||
Torque of X/Y/Z axis AC servo motor | Nm | 10 | ||||
Overall size | mm | 1730*1760*1700 | 1830*1760*1700 | 1730*1760*1700 | 1830*1760*1700 | |
Optional rotary table is available
Model | Table size | Max table travel - X/Y/Z | Max rotary angle of table | Distance between spindle nose and table surface |
6230W | 1270*320 | 720/300/400 | 60-460 |
Optional rotary table is available
Model | Table size | Max table travel - X/Y/Z | Max rotary angle of table | Distance between spindle nose and table surface |
XL6230W | 1270*320 | 720/300/400 | 60-460 | |
XL6230AW | 1370*320 | 820/300/400 | ||
XL6230BW | 1270*320 | 900/380/400 | ||
XL6230CW | 1370*320 | 1000/380/400 |
