XN6330H-X6330H-XS6330H

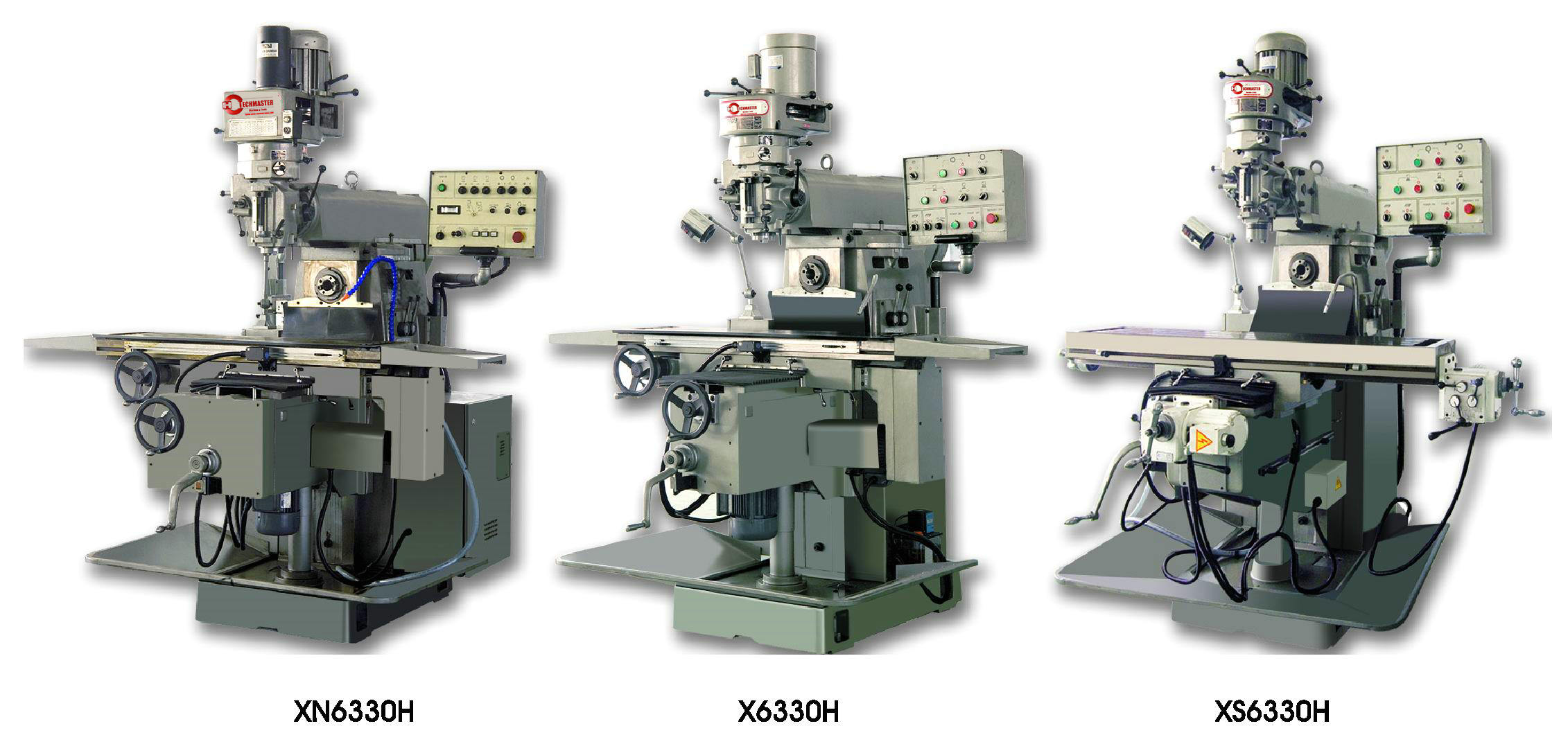

Applications of XN6330H X6330H XS6330H Universal Vertical and Horizontal Milling Machine

XN6330H X6330H XS6330H Universal Vertical and Horizontal Milling Machine has reasonable construction and

superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions

available by use of the corresponding attachments as milling of helix slot, round surface, rack, gear and spline.

Features of XN6330H X6330H XS6330H Universal Vertical and Horizontal Milling Machine

XN6330H X6330H XS6330H Universal Vertical and Horizontal Milling Machine has super width of bed and knee

box guide way, which have been hardened and precision ground, with high rigidity and stability. The guide way of

the saddle is lined with TF wearable belt. The machine with one vertical spindle and one horizontal spindle,

the spindles and gears have been hardened and ground,suitable heavy cutting.

Technical Specifications of XN6330H X6330H XS6330H Universal Vertical and Horizontal Milling Machine

Model		Unit	XN6330H		X6330H		XS6330H
Table		mm	300x1300		300x1300	300x1500	300x1370		300x1500
Table longitudinal travel		mm	845		845	1000	880		1000
Table cross travel		mm	385				380
Knee vertical travel		mm	435
Table longitudinal feed rate		mm/min	0-3500 Servo motor	------------
Table cross feed rate		mm/min		------------
Knee rapid speed		mm/min	900
Vertical spindle	Motor power	hp	5hp				Standard: 3hp; optional: 5hp
	Speed	rpm	Standard/16 steps: 50HZ:65-4500 / 60HZ:80-5440 Optional: variable speed 65-3750
	Taper		ISO40				Standard: R8; Optional: ISO40
	Quill travel	mm	127
	Quill feed	mm/rev	0.04/0.08/0.15
	Head rotating		R/L: 90°				R/L: 90°; B/F: 45°
	Distance from spindle end to table surface	mm	115-545
Horizontal spindle	Motor power	hp	5hp
	Speed	rpm	50Hz: 45/80/165/260/500/980; 60Hz: 55/100/200/315/600/1180
	Taper		ISO40
	Distance from spindle end to table surface	mm	-20-410
	Distance from spindle end to ram	mm	183
Ram travel		mm	480
Ram rotating			360°
Net weigh		kg	1900		1900	1950	1680	1730
Package size (L x W x H)		cm	180x150x220			180x180x220	180x160x220	180x180x220

Standard accessories of XN6330H X6330H XS6330H Universal Vertical & Horizontal Milling Machine

Draw bar, Tool box & tools, Working lamp, Electrical cabinet and hang up control panel, Automatic.

Lubication pump, Coolant system, Oil tray, plastic splashing guard.

Optional accessories of XN6330H X6330H XS6330H Universal Vertical and Horizontal Milling Machine
