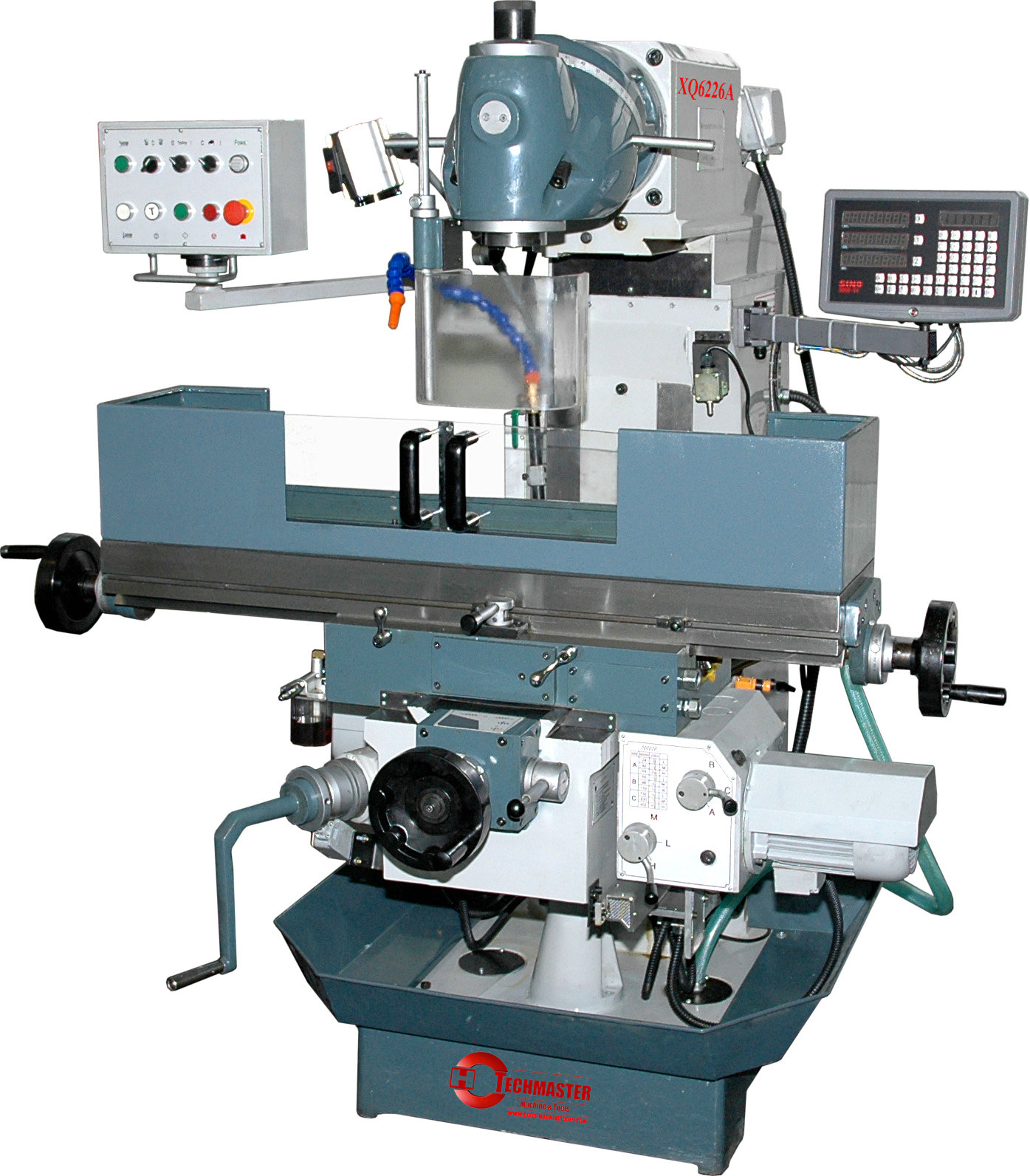

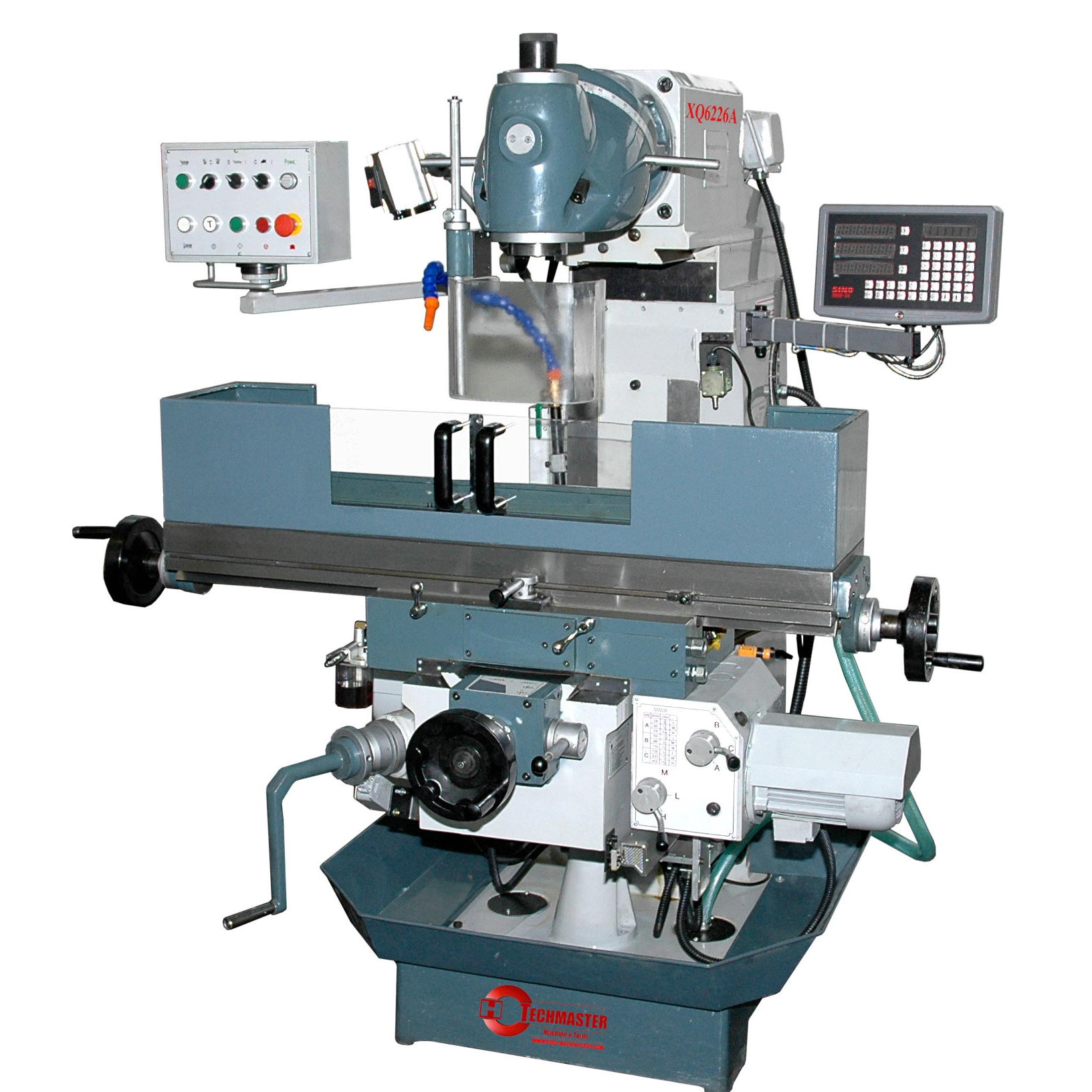

3-axes digital read-out
aut. feed for X- and Y-axes
table elevation motor
hardened and ground work table and guides
milling head similar Huron 360° pivoting
counter support for horizontal milling
halogen working light
cooling equipment
milling chuck with  8 pcs. collets (4, 5, 6, 8, 10, 12, 14, 16 mm)
operator tools
machine and equipment according to the CE-regulations
horizontal milling unit
torquing arbor
horizontal counter bearing
milling arbor set
set of collets
swarf plate
table cover
operator tools
table: 1.120 x 260 mm
working area: 600 x 300 x 440 mm
taper: ISO 40
revs: 45 - 1.660 (11) r.p.m.
motor: 2,2 kW
length: 1.655 mm
width: 1.325 mm
height: 1.730 mm
vertical milling Ø: 28 mm
horizontal milling Ø: 125 mm
max. dist. vertical spindle-table: 440 mm
max. dist. horiz. spindle-table: 500 mm
milling head pivoting: 360°
weight: ~ 1.350 kg
