Quality Machine Tools
1.X,Y automatic feed through one gear box, Z lifting motor
2.head swivel 360 degrees
3.ram is movable
4.lubrication system

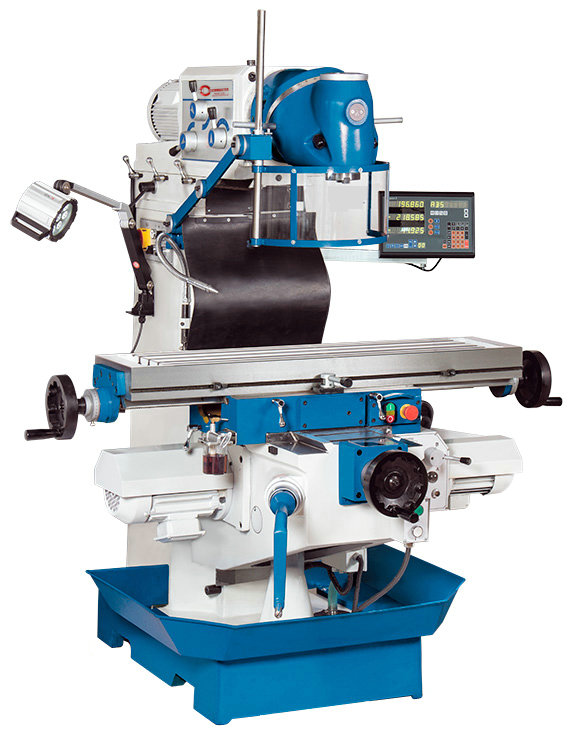

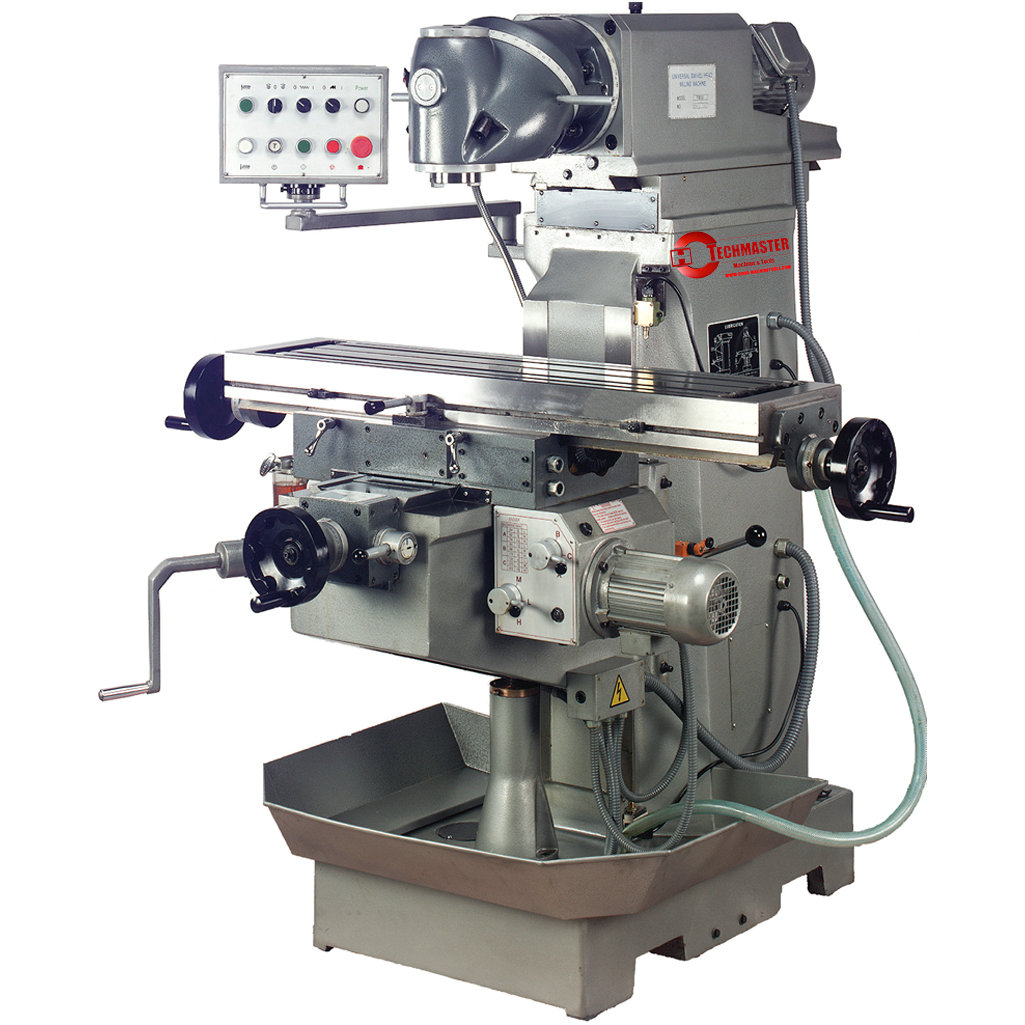

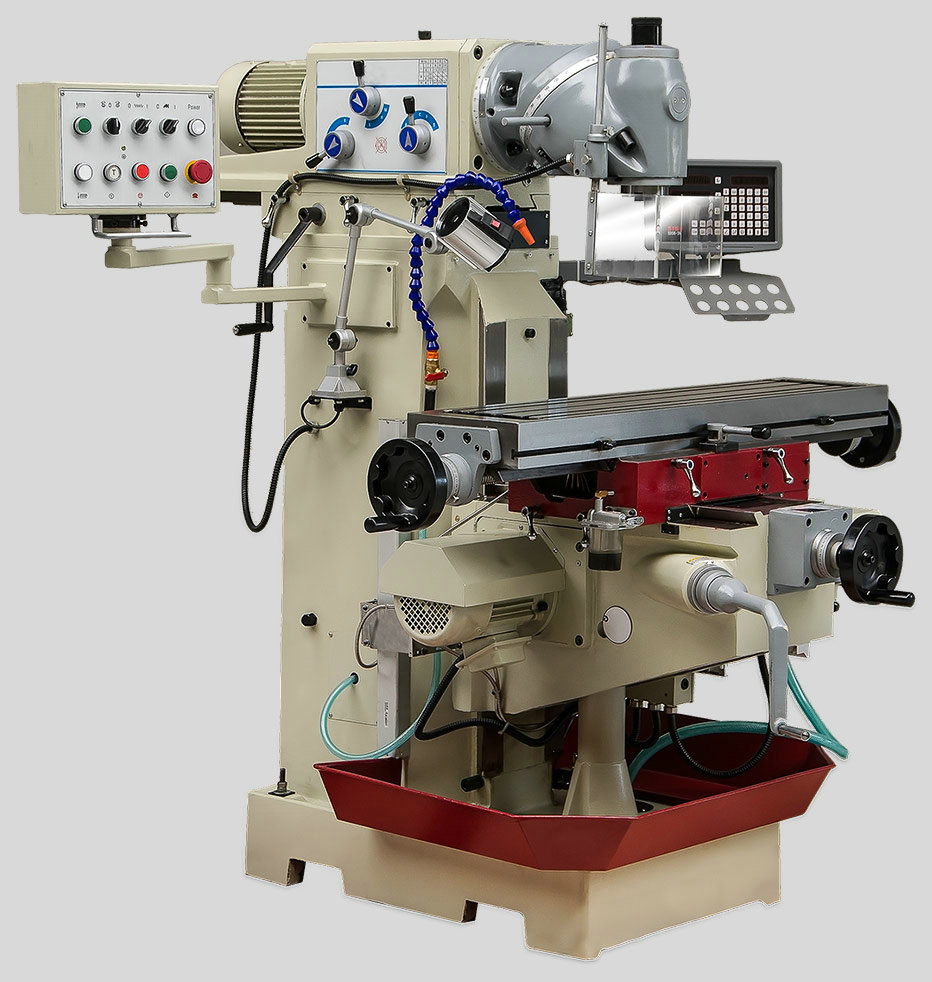

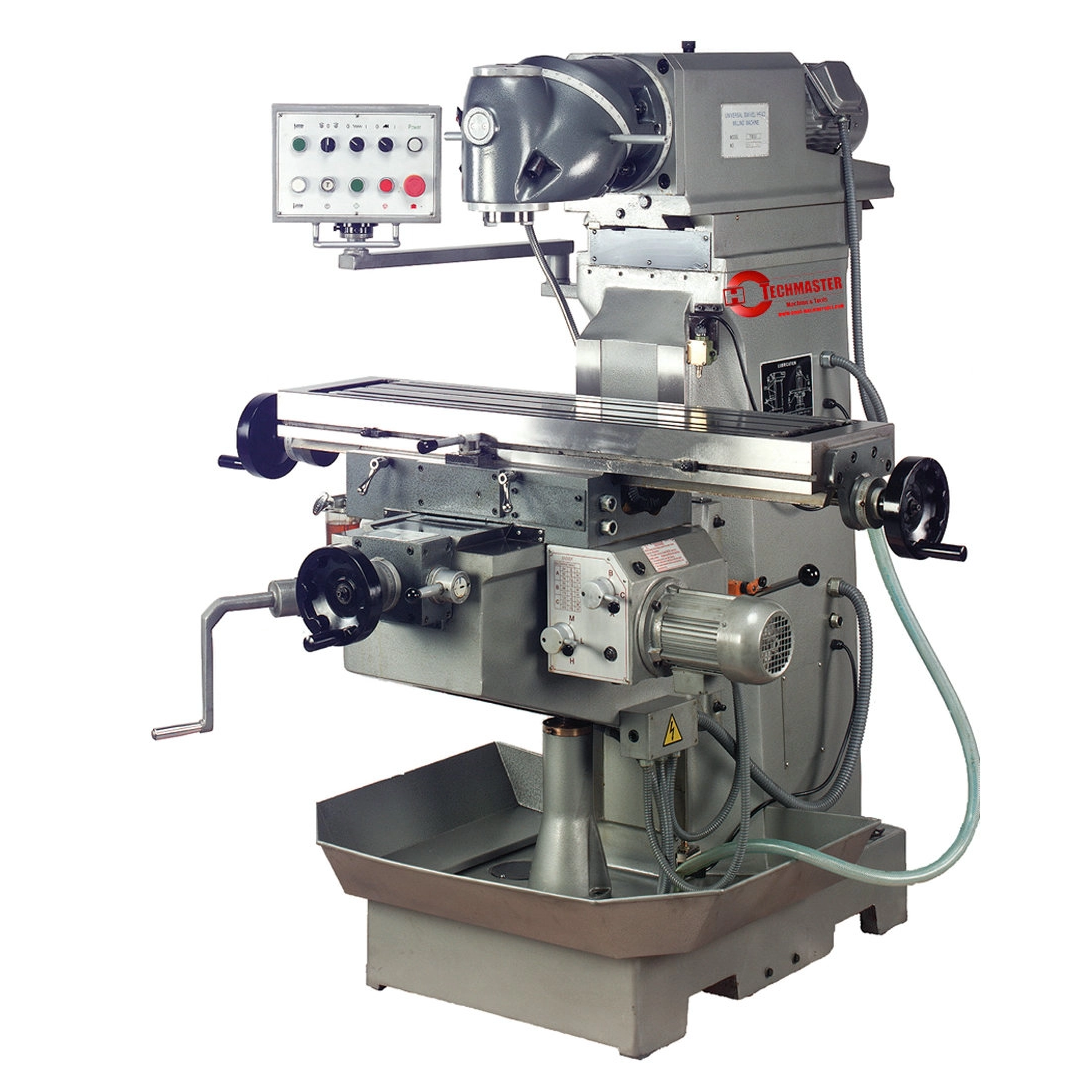

1.The machine is with universal milling head,it can swivel 360 degrees.
2.The machine can automatic feed on three axes.
3.The ram is movable forward and backward.
4. The machine is equipped with operation panel which is convenient for the operator.
| unit | XQ6226B |
TABLE : | ||
Table size | mm | 1120X260 |
T slot no./width/distance | no | 3/14/63 |
Max. load of Table | kg | 250 |
machining range : | ||
table Longitudinal travel(manual/auto) | mm | 600 |
table Cross travel (manual/auto) | mm | 270 |
table Vertical travel(manual/auto) | mm | 380 |
MAIN SPINDLE : | ||
Spindle taper | ISO40 | |
spindle speed /step | rpm | 45-1660/11steps |
Max.end milling width | mm | 125 |
Max. vertical milling Dia. | mm | 25 |
swivel angle of swivel head | degree | 360º |
vertical spindle axis to column surface | mm | 60-500 |
vertical spindle nose to table surface | mm | 100-480 |
ram travel | mm | 440 |
FEEDS : | ||
Longitudinal/cross feed | mm / min | 24-402/9steps |
Vertical/step | mm/min | 422/1step |
Longitudinal/cross rapid speed | mm / min | 402 |
Rapid Traverse vertical | mm/min | 422/1step |
POWER : | ||
main motor | kw | 2.2 |
feed motor | kw | 0.37(X/Y),0.55(Z) |
coolant motor | kw | 0.04 |
overall dimension | cm | 166x150x173 |
N/W,G/W | kg | 1480/1680 |
