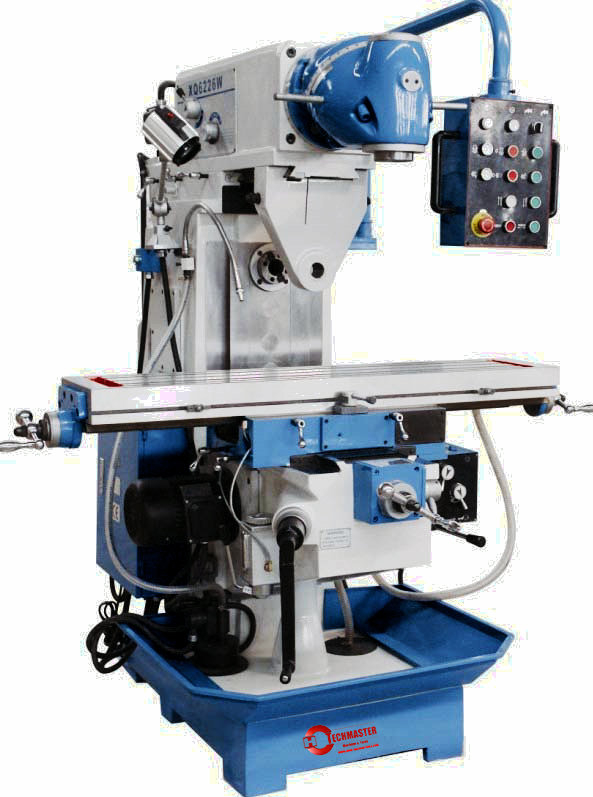

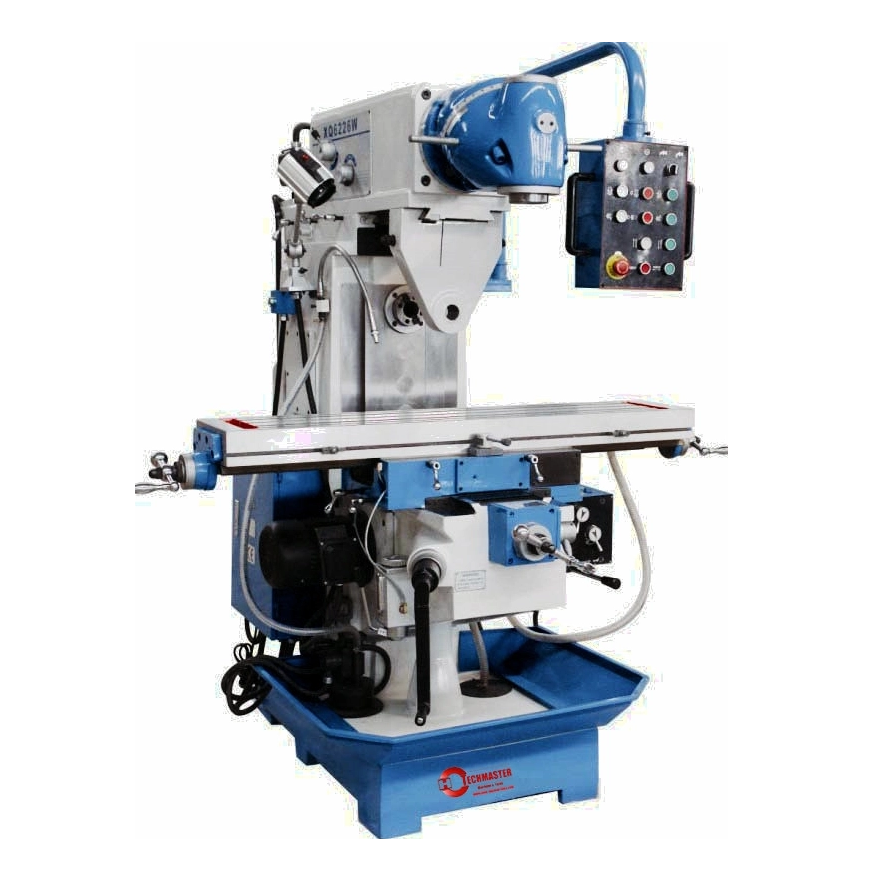

XQ6226W
Quantity: XQ6226WA Vertical and horizontal universal milling machine
Two axis auto feed
Worke table: 1270*260
Table travel: 750*300
It is a Vertical and horizontal universal milling machine, In the original horizontal milling based on the increase in the independent part of the horizontal milling part, two-axis automatic feed, z-axis can be added according to customer requirements lifting system Change of the original milling machine horizontal milling power Shortage, Lack of processing limitations, three axial hardeningSpecification XQ6226W Max. horizontal milling dia (mm) 125 Max. vertical millng dia (mm) 28 Distance. spindle to table surface (mm) 560 Spindle speeds range (r. p. m) 35-1600(V) Swivel angle of swivel head ± 360 ° Ram travel 420 Table size (mm) 1270 × 260 Table travel (mm) ( 750)700 × 270 Overall dimensions (mm) 1655 × 1500 × 1730 Motor (KM) 3 N. W/G. W (kg) 1750/1850 Spindle speeds range (r. p. m) 40-1300 (H)
XQ6226WA Vertical and horizontal universal milling machine
Two axis auto feed
Worke table: 1270*260
Table travel: 750*300
It is a Vertical and horizontal universal milling machine, In the original horizontal milling based on the increase in the independent part of the horizontal milling part, two-axis automatic feed, z-axis can be added according to customer requirements lifting system Change of the original milling machine horizontal milling power Shortage, Lack of processing limitations, three axial hardeningSpecification XQ6226W Max. horizontal milling dia (mm) 125 Max. vertical millng dia (mm) 28 Distance. spindle to table surface (mm) 560 Spindle speeds range (r. p. m) 35-1600(V) Swivel angle of swivel head ± 360 ° Ram travel 420 Table size (mm) 1270 × 260 Table travel (mm) ( 750)700 × 270 Overall dimensions (mm) 1655 × 1500 × 1730 Motor (KM) 3 N. W/G. W (kg) 1750/1850 Spindle speeds range (r. p. m) 40-1300 (H)
