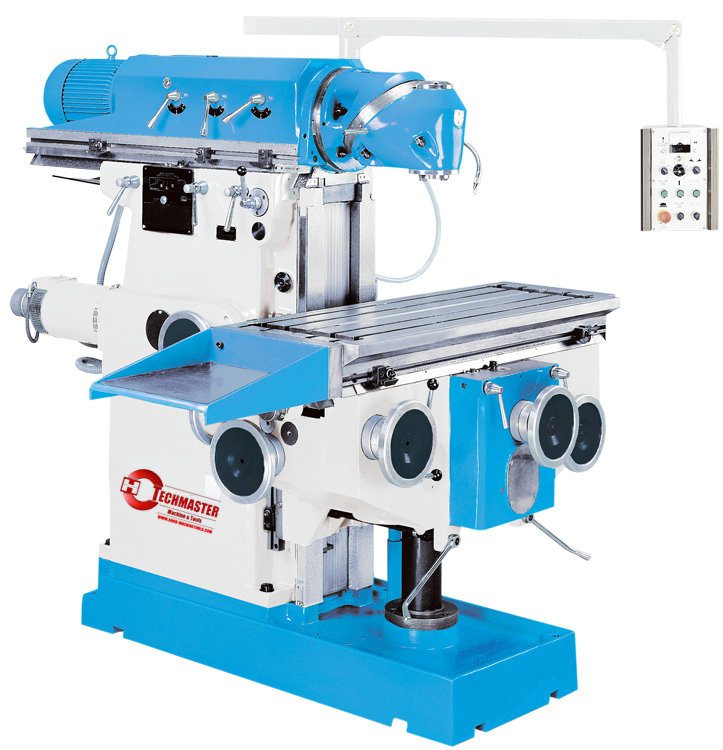

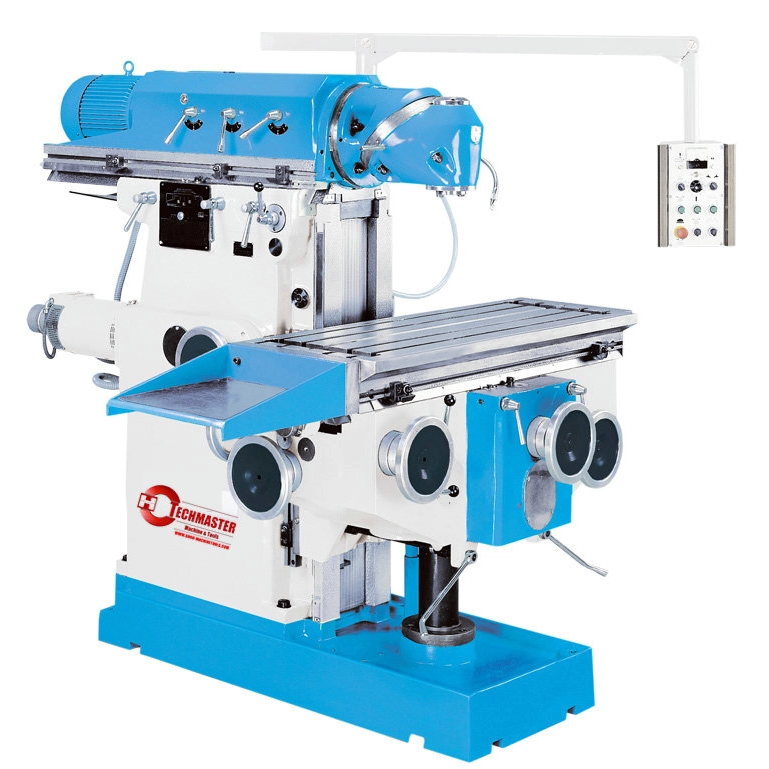

XS5646
Quantity: Servo drive X, Y, Z, and large workspace (X 900 mm and Y 650 mm)
total price including 3-axis position indicator assembled
extra large work table and large travel ranges on all axes
sturdy and torsionally rigid construction
universal swivel head - cutter can be moved to any spatial angle
infinitely variable feed speed and rapid feed with servo motor and axis control on all 3 axes
preloaded ball screw - zero-backlash - preloaded for easy and precise feeds
simultaneous axis movement
Turcite-B coated guides
dovetail guideways on X-axis
square guides in the Z axis
hardened and ground gears, nitrated
swiveling control panel, fully equipped with all operating elements
automatic lubricant supply
spindle brakes
equipment according to CEXS5646- Universal Milling Machine working area
travel X-axis 900 mm travel Y-axis 650 mm travel Z-axis 450 mm table set up area 1235x460 mm table load capacity (max.) 800 kg number of T-slots 5 Pieces T-slots, width 18 mm T-slots, spacing 80 mm feed
rapid feed X-axis 2540 mm/min rapid feed Y-axis 2540 mm/min rapid feed Z-axis 1700 mm/min feed speed X-axis 10 - 1000 mm/min feed speed Y-axis 10 - 1000 mm/min feed speed Z-axis 6 - 640 mm/min vertical milling head
spindle speed (vertical) (27) 30 - 2050 rpm spindle mount (vertical) SK 40 throat 63 - 713 mm spindle nose-to-table surface distance 50 - 500 mm milling head swivel range 360 ° drive capacity
motor rating main drive 5,5 kW axes drive for each axis DC Servo measures and weights
overall dimensions 1940x2220x2115 mm weight 4300 kg
