XS5756A/1

Quantity:
Specifications

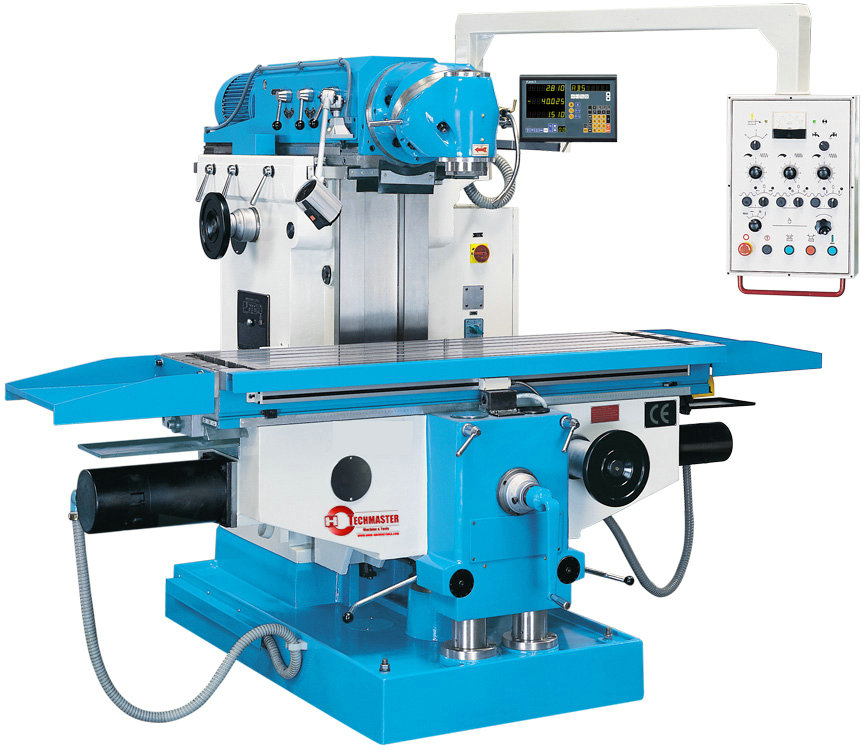

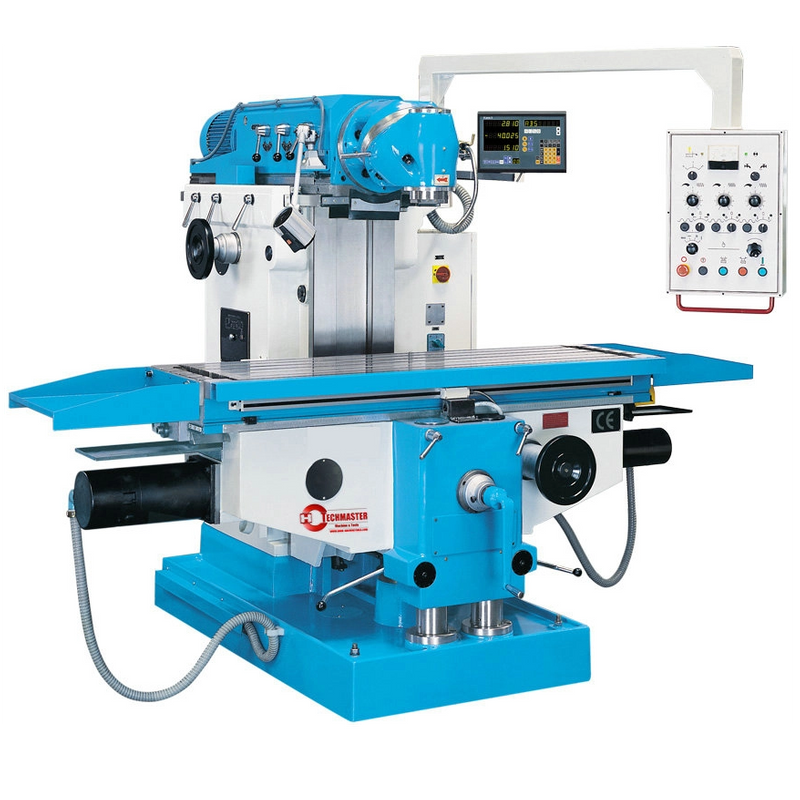

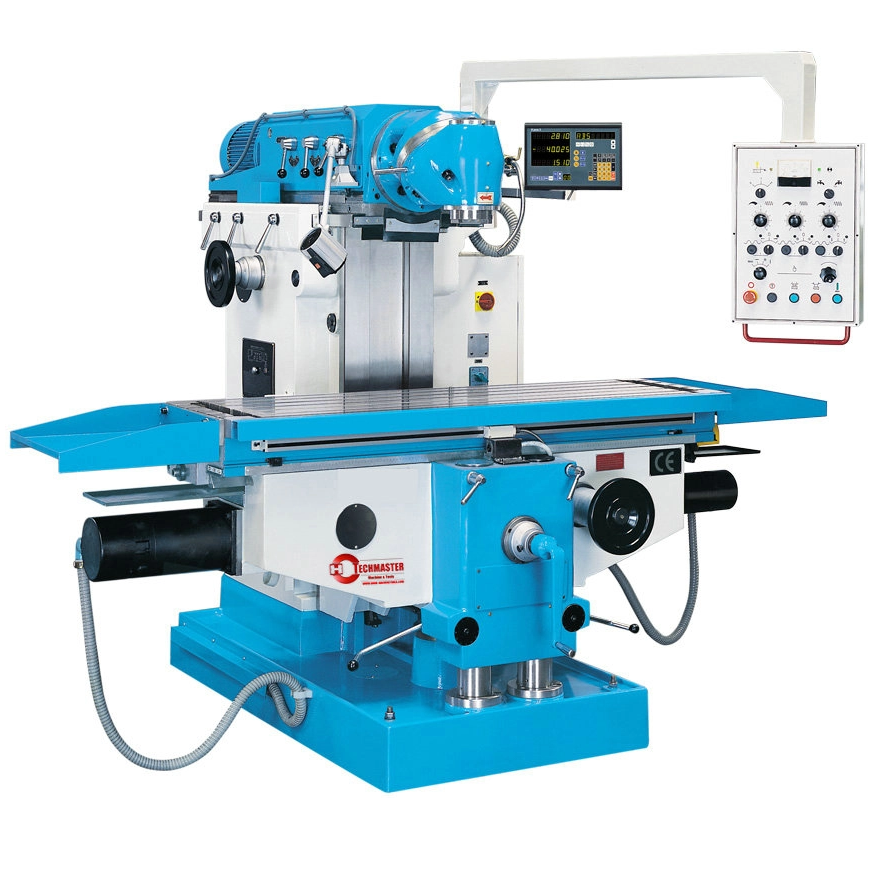

Ram Type Universal Milling Machine XS5756A/1
Posses working reliability
Easy maintenance
Long life
Easy operation

Ram Type Universal Milling Machine XS5756A/1



This machine is a newly developed product based on traditional knee-type milling machine and has more advanced features than the general one. This machine can mill any angle surface through front half-sphere by swiveling milling head. It features enlarged machining capacity, widened spindle speed range. Feed of three directions adopt three separate infinitely speed changing systems which do not interference each other and posses working reliability, easy maintenance, long life, easy operation, automatic lubrication system, sufficient rigidity and so on. This machine can mill plane, groove, slant groove, even can mill plane and groove in cavity of some workpieces. Being installed with various kinds of borers, it can bore different holes vertically, horizontally, left-horizontally or right-horizontally. Equipped with special-purpose tooling, it can bore inclined hole at special angle. It is suitable for metalworking operation of all kinds of factories, especially for dies and moulds.




Name


Unit

XS5756A/1

X5756A/1

Working table(W×L)

mm

560×1635


T-slot

Number



5

Width

mm

18

Pitch

mm

80

Travel of three
directions

Longitudinal

mm

1300

Cross

mm

650

Vertical

mm

450

Min. distance between spindle
nose and table surface

mm

80

Swivel angle of milling head



Any 360°in front half-sphere

Spindle taper


ISO50

Spindle speed

Range

rpm

30~2050

Number



27

Feed range of
table and ram

Longitudinal

mm/min

10~1000

Cross

mm/min

10~1000

Vertical

mm/min

5~500

Rapid feed of
table and ram

Longitudinal

mm/min

2200

Cross

mm/min

2200

Vertical

mm/min

1100

Feed number of table



Stepless

Main motor

Power

kw

7.5

Speed

rpm

1440

Feed motor

Torque

Nm

X,Y:25 , Z:30

Speed

rpm

1500

Resolution of digital display

mm

0.05

Positioning accuracy

mm

0.05

Reset accuracy

mm

±0.01

Max. bearing weight of table

kg

1500

Overall dimensions (L×W×H)

mm

2140×2700×1970

Net weight

kg

3400
