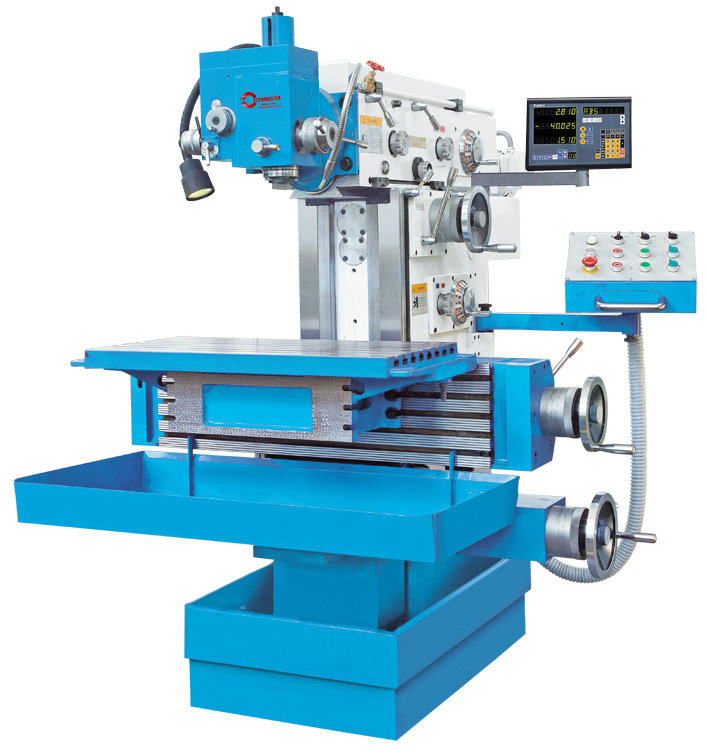

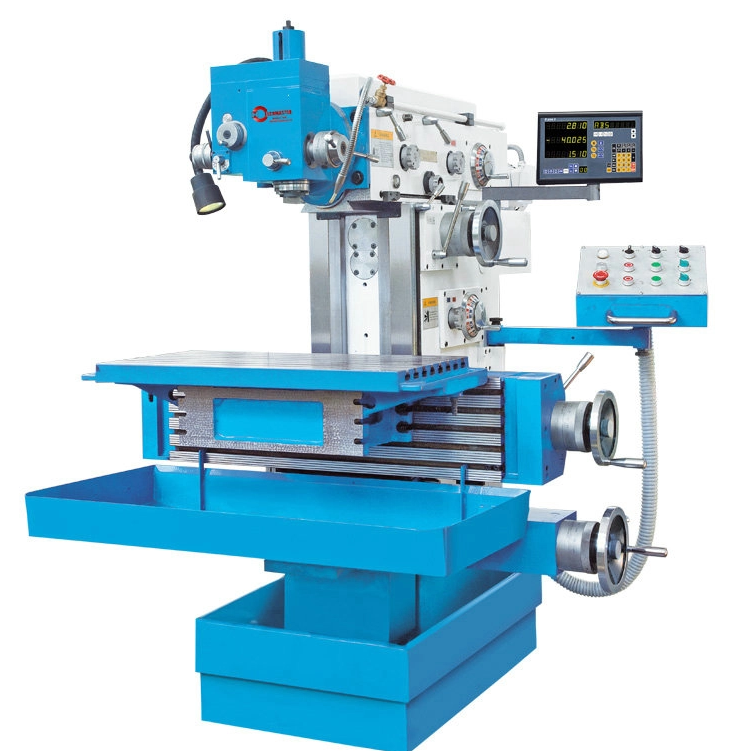

XS8132A
Quantity: Feature:
Heavy-duty Universal Tool Milling Machine, for tool and die construction, form and mold construction as well as for training use
total price including 3-axis position indicator assembled
high machining quality and maximum reliability
separate feed gears with fine gradation and rapid feeds in all axes
large work table (800x400 mm) and travels up to 500x350x400 mm for maximum versatility
Extensive accessory package included
ribbed machine stand ensures maximum dynamic rigidity and constant precision
vertical setup table with 5 setup slots allows individual positioning of the sturdy, large work table
micro-tuning (18 steps) of spindle gears to maintain a constant optimum spindle speed
fine adjustments of work feeds and rapid feed on all axes ensure maximum versatility and productivity
the quill can be advanced manually or automatically (3 steps)
ergonomically arranged controls and a swivelling control panel plus standard digital position indicator for maximum operator comfort
including automatic lubrication systemSpecifications Table sizeHorizontal working table750 x 320 mmVertical working table 850 x 250 mmLongitudinal / Transverse / Vertical travel400/300/400 mmUniversal tableHorizontal swivel±360°Inclination to front and rear±30°Inclination on left and right±30°Vertical milling headVertical travel of quill60 mmAxis inclination on left and right±90°Horizontal spindleSpindle taperISO40The height from axis to ground1330 mmhorizontal tableMin. distance between axis and surface of40 mmVertical spindleSpindle taperISO40horizontal tableMin. distance between nose and surface of10 mmHorizontal and vertical spindle speed: steps / range ( rmp)18 steps / 40~2000Longitudinal, transverse and vertical feeds: steps / range (mm/min.)18 seps / 10~500Vertical milling spindle feed (mm/rev.)3 steps / 0.03~0.12Power of main motor / Feed motor3 kW / 1.5 kWMax. table load300 kgOverall dimensions1810x1220x1710 mmNet weight2200 kgOptional AccessoriessoriesUniversal tableParallel viceSlotting headRotary tableDividing head
