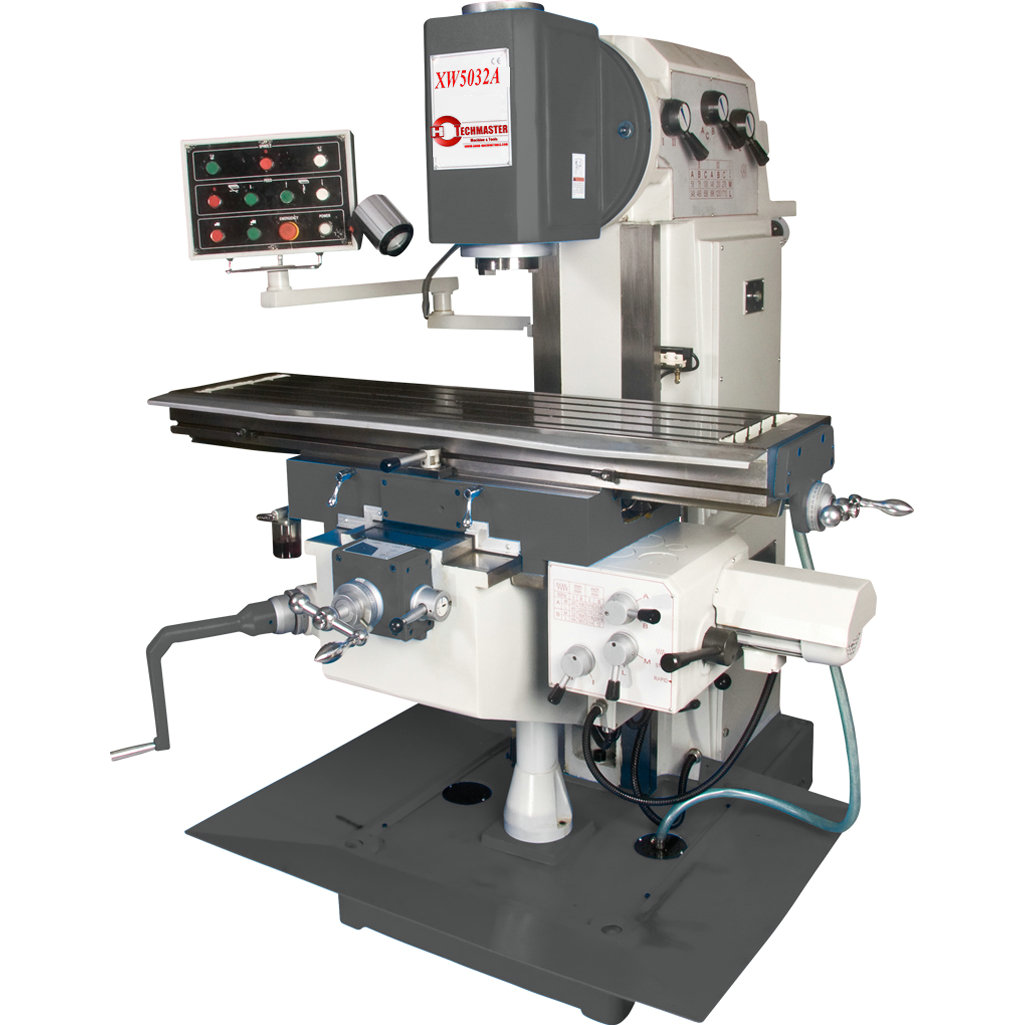

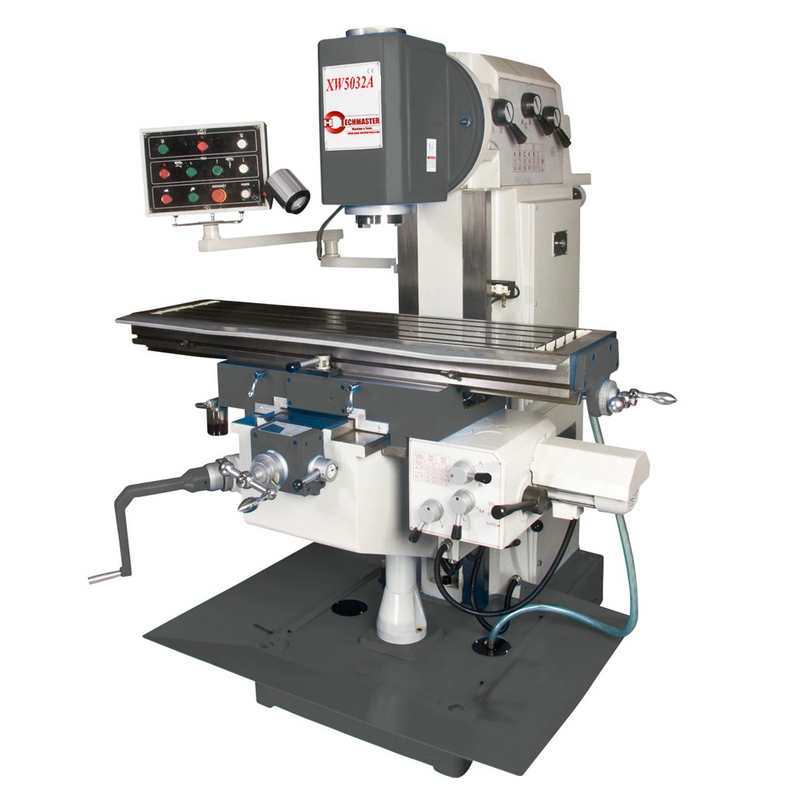

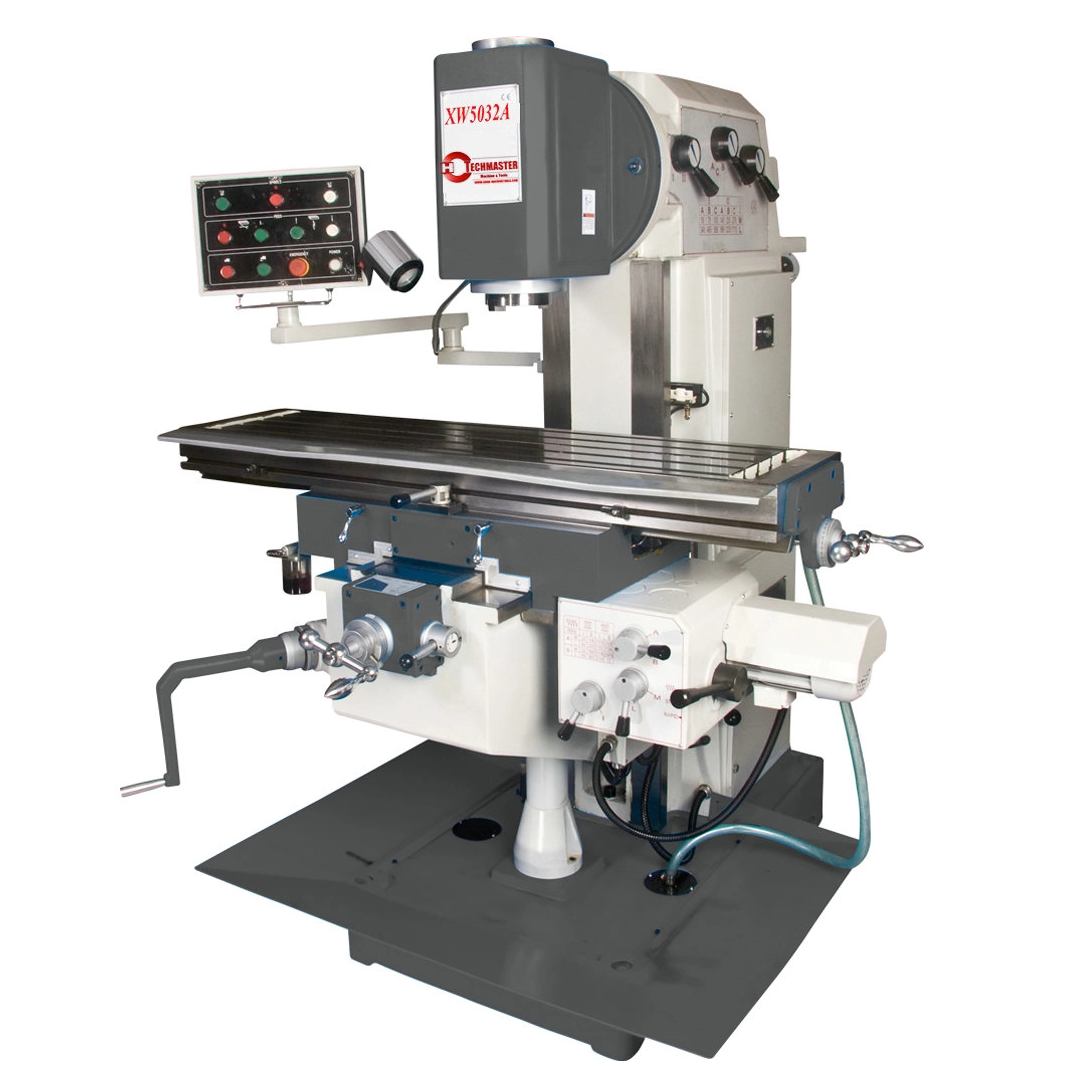

XW5032A
Quantity: Rugged knee and column milling machine, ideal for single part production, re-work and repairs. The machine has a massive frame, with a very rigid knee slide; the X, Y and Z axis are all fitted with a rapid feed system. The heavy duty and sturdy construction of the machine is of ribbed and close grain casting, plus the machine has centralised one shot lubrication which ensures lubrication to parts otherwise inaccessible. The controls are easily accessible and have been designed for the comfort of the operator, the dual dials allow you to work in both metric and inch calibrations with relative ease.
- integrated cooling system
- chip tray
- halogen machine light
- head tiltable
Spindle taper DIN 2080 ISO 50 Spindle speed range vertical spindle 58 - 1500 rpm Motor power vertical 4,0 kW Vertical table travel 400 mm Longitudinal table travel X - 800, Y - 300, Z - 400 mm Head movement 35 L/R ° L/R Distance spindle column 0 - 400 mm Rapid travel X - 1100, Y - 1100, Z - 1670 mm/min Feed range 20 - 360 mm/r T-slots number/dimensions 5/14 x 63 mm Table size 1320 x 320 lxw Dimensions machine w x h x d 1900 x 1720 x 1750 mm Net weight 2100 kg Voltage 400 V
Rugged knee and column milling machine, ideal for single part production, re-work and repairs. The machine has a massive frame, with a very rigid knee slide; the X, Y and Z axis are all fitted with a rapid feed system. The heavy duty and sturdy construction of the machine is of ribbed and close grain casting, plus the machine has centralised one shot lubrication which ensures lubrication to parts otherwise inaccessible. The controls are easily accessible and have been designed for the comfort of the operator, the dual dials allow you to work in both metric and inch calibrations with relative ease.
- integrated cooling system
- chip tray
- halogen machine light
- head tiltable
Spindle taper DIN 2080 ISO 50 Spindle speed range vertical spindle 58 - 1500 rpm Motor power vertical 4,0 kW Vertical table travel 400 mm Longitudinal table travel X - 800, Y - 300, Z - 400 mm Head movement 35 L/R ° L/R Distance spindle column 0 - 400 mm Rapid travel X - 1100, Y - 1100, Z - 1670 mm/min Feed range 20 - 360 mm/r T-slots number/dimensions 5/14 x 63 mm Table size 1320 x 320 lxw Dimensions machine w x h x d 1900 x 1720 x 1750 mm Net weight 2100 kg Voltage 400 V
