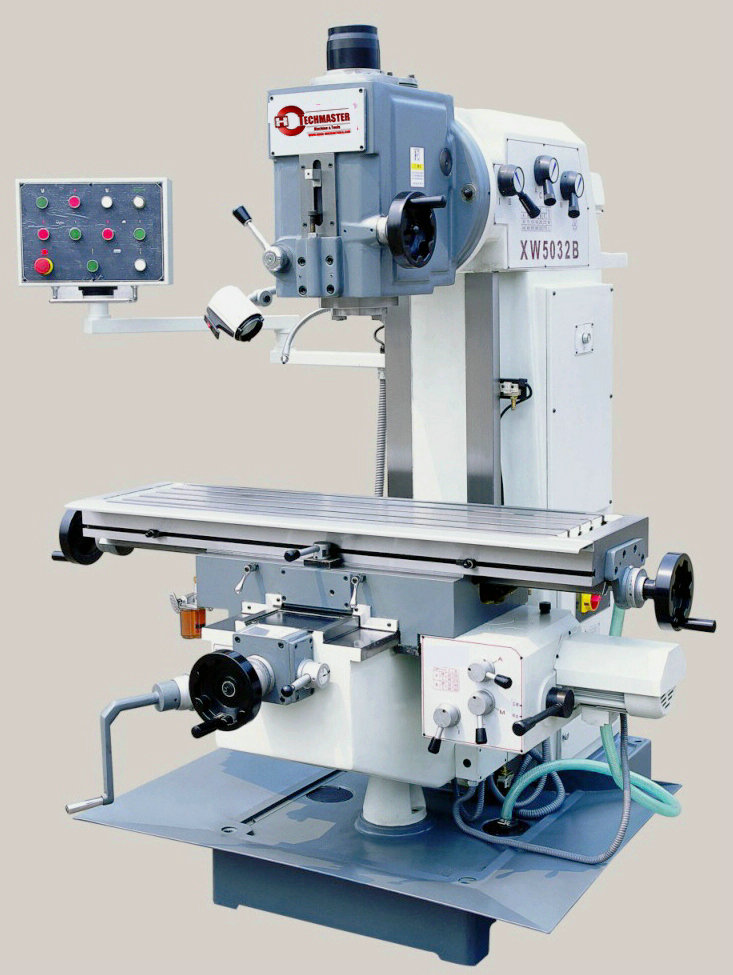

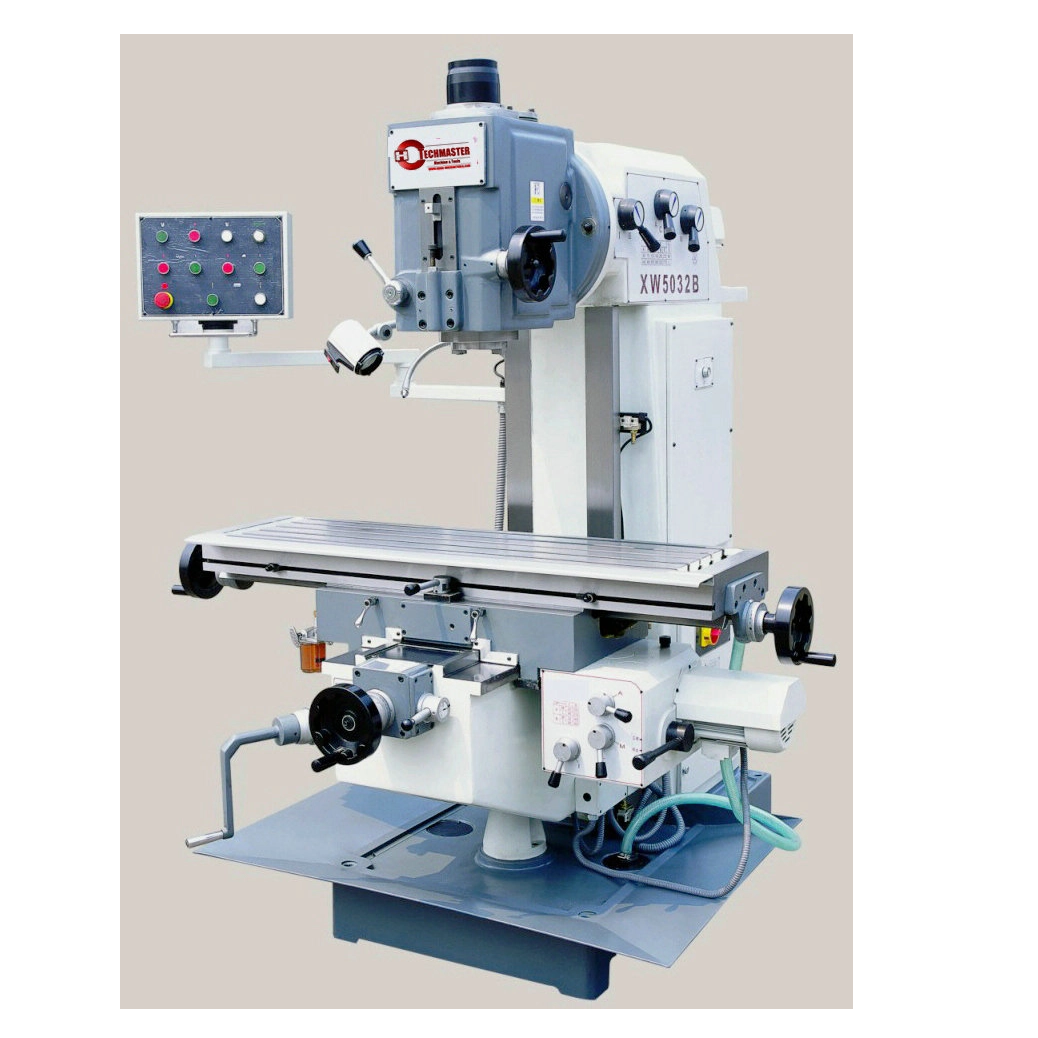

XW5032B
Quantity: Rectangular table guideway with high stability. Hardened and
ground table surface. Automatic feeds on X Y axes
Specification unit XW50332B TABLE :
Table size mm 1320×320 T slot no 5 Size ( Width ) mm 14 Centre distance mm 63 Max. load of Table kg 300 machining range :
table Longitudinal travel(manual/auto) mm 800/750 table Cross travel? (manual/auto) mm 300 table Vertical travel(manual/auto) mm 400 MAIN SPINDLE :
Spindle taper
iso50 quill travel mm 70 spindle speed /step rpm 58-1710/12 spindle axis to column surface mm 360 spindle nose to table surface mm 45-445 Max.swivel of headstock degree ±30o FEEDS :
Longitudinal/cross feed mm / min 20-360/8 Vertical/step mm/min 400 Longitudinal/cross rapid speed mm / min 1200 Rapid Traverse vertical mm/min 400 POWER :
main motor kW 4 feed motor for X/Y kW 0.55 elevating motor for Knee kW 0.75 coolant motor kW 0.09 others
package dimension cm 187x170x225 overall dimension cm 177x182x188 N/W,G/W kg 2300
Rectangular table guideway with high stability. Hardened and
ground table surface. Automatic feeds on X Y axes
Specification unit XW50332B TABLE :
Table size mm 1320×320 T slot no 5 Size ( Width ) mm 14 Centre distance mm 63 Max. load of Table kg 300 machining range :
table Longitudinal travel(manual/auto) mm 800/750 table Cross travel? (manual/auto) mm 300 table Vertical travel(manual/auto) mm 400 MAIN SPINDLE :
Spindle taper
iso50 quill travel mm 70 spindle speed /step rpm 58-1710/12 spindle axis to column surface mm 360 spindle nose to table surface mm 45-445 Max.swivel of headstock degree ±30o FEEDS :
Longitudinal/cross feed mm / min 20-360/8 Vertical/step mm/min 400 Longitudinal/cross rapid speed mm / min 1200 Rapid Traverse vertical mm/min 400 POWER :
main motor kW 4 feed motor for X/Y kW 0.55 elevating motor for Knee kW 0.75 coolant motor kW 0.09 others
package dimension cm 187x170x225 overall dimension cm 177x182x188 N/W,G/W kg 2300
