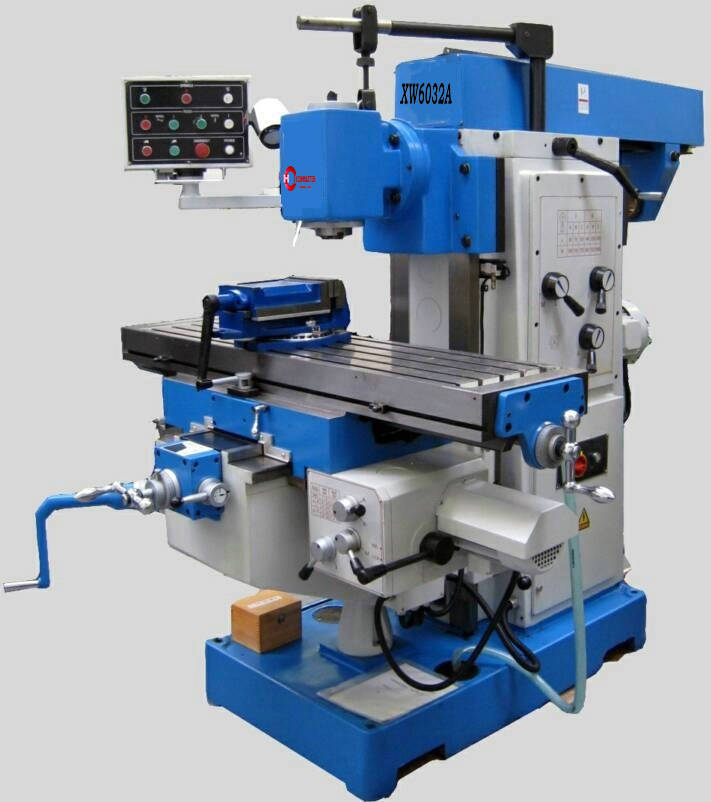

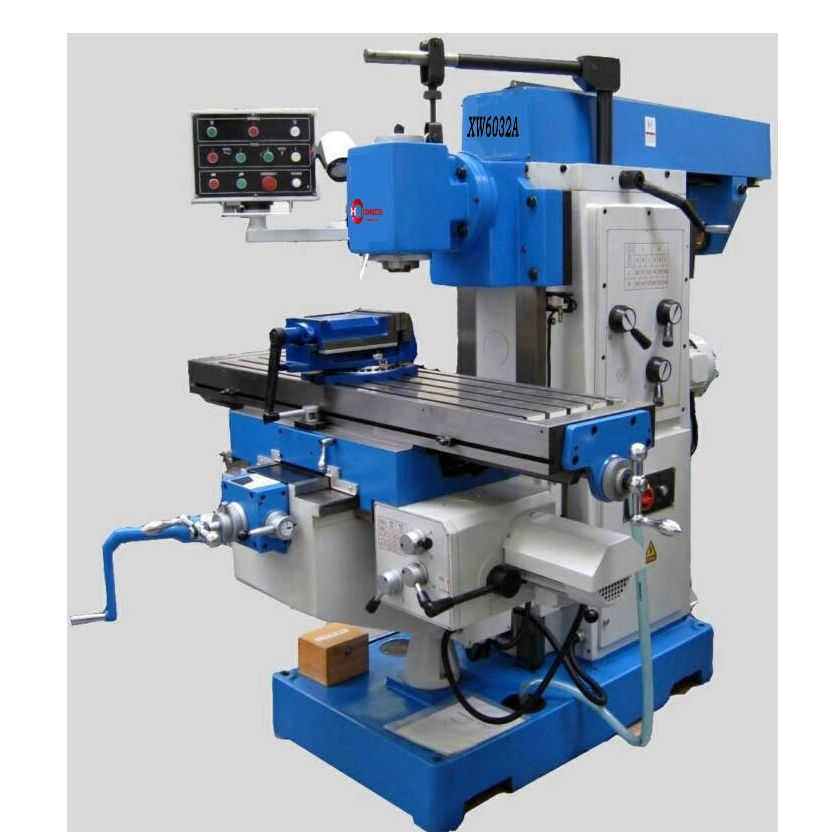

Model | XW6032A |
Table size | 1320X320mm |
Table travel (manual X,Y) | 800X300mm |
Horizontal Spindle taper | ISO50 |
Vertical Spindle taper | ISO40 |
Distance between spindle axis and boom | 175mm |
Distance from spindle axis to table surface | 0-400mm |
Spindle speeds range | 58-1800 RPM |
Spindle Motor | 4KW |
N.W/G.W | 2300/2500KG |
Overall dimensions | 2020X1820X1880 mm |
