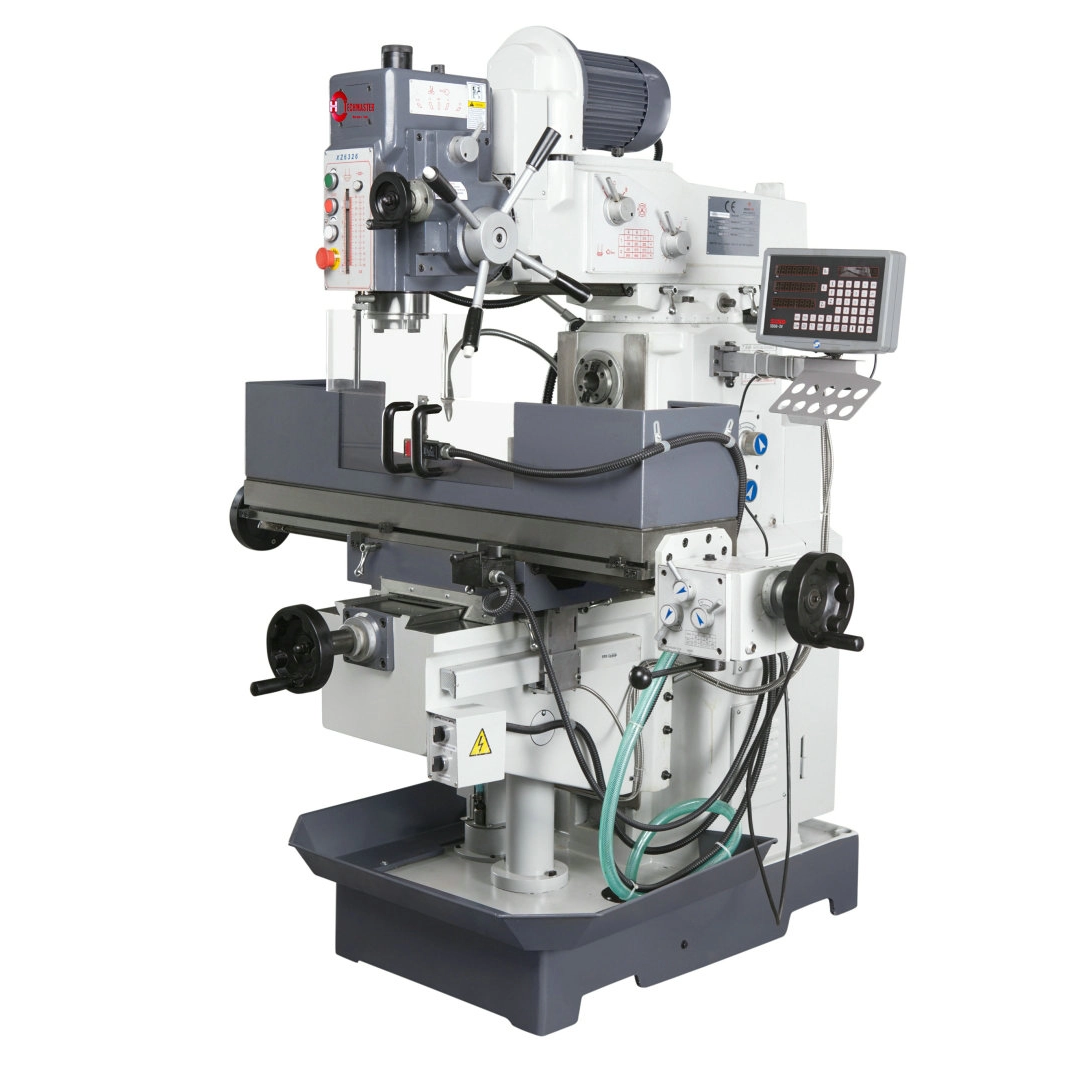

XZ6326
Quantity: Spindle can feed automaticlySpindle can be tappingSpindle can be forward and reversalX,Y,Z axis can feed automaticlyTable size 1270*260mm is optionalunit specification XZ6326 Table size mm 1120X260 T slot no./width/distance no 5/14/50 Max. load of Table kg 200 table Longitudinal travel(manual/auto) mm 600 table Cross travel (manual) mm 300 table Vertical travel(manual) mm 380 Spindle taper ISO40 spindle speed /step -- Vertical rpm 67-2010/12steps --Horizontal rpm 40-1300/12steps Max.drilling dia. mm 30 Max.end milling width mm 125 Max. vertical milling Dia. mm 25 Max.tapping dia. mm M16 quill travel mm 120 swivel angle of headstock degree ±45º vertical spindle axis to column surface mm 220-760 vertical spindle nose to table surface mm 115-430 horizontal spindle axis to table surface mm 0-380 horizontal spindle axis to ram bottom mm 175 ram travel mm 520 Longitudinal feed mm / min 24-720/8steps Longitudinal rapid speed mm / min 1040(X) automatic spindle feed 0.1/0.15/0.3 main motor kw 1.5/2.2(V),2.2(H) feed motor kw 0.37(X) coolant motor kw 0.04 overall dimension cm 158X145X215 N/W,G/W kg 1350/1500
